Fuse Block Module Replacement

Fuse Block Module Removal

REMOVAL
The fuseblock module is serviced as a unit with the body wire harness. If any internal circuit of the fuse- block module or if the fuseblock module housing is faulty or damaged, the entire fuseblock module and the body wire harness unit must be replaced.
1. Disconnect and isolate the battery negative cable.
2. Remove the instrument panel assembly from the dash panel.
3. Disconnect each of the body wire harness connectors. Refer to Connector Locations in Wiring for the location of the body wire harness connector locations.
4. Remove all of the fasteners that secure each of the body wire harness ground eyelets to the vehicle body and chassis components. Refer to Connector Locations in Wiring for the location of the body wire harness ground locations.
5. Disengage each of the retainers that secure the body wire harness to the vehicle body and chassis components. Refer to Connector Locations in Wiring for the location of the body wire harness retainer locations.

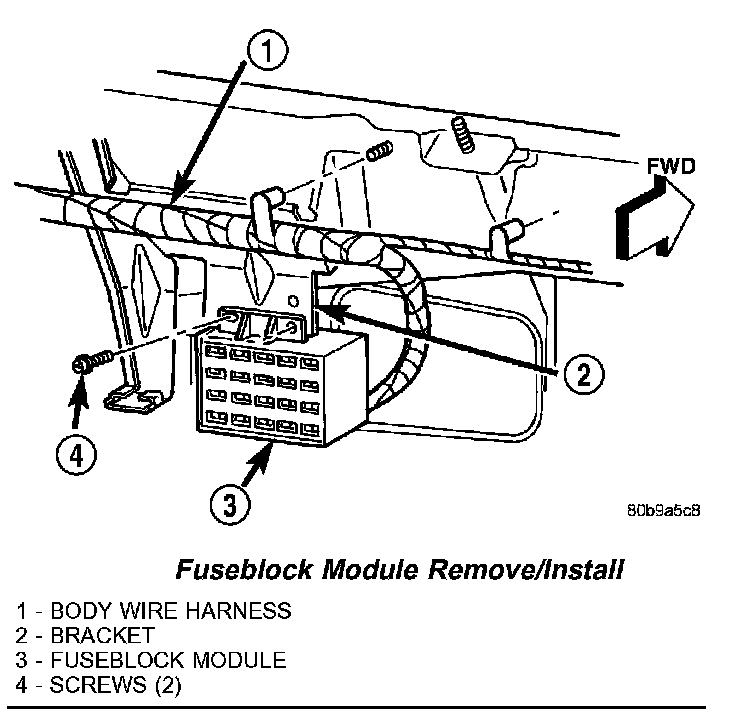

Fuse Block Module Remove/Install:

6. Remove the two screws that secure the fuse- block module to the bracket on the dash panel.
7. Remove the fuseblock module and the body wire harness from the dash panel as a unit.

INSTALLATION
The fuseblock module is serviced as a unit with the body wire harness. If any internal circuit of the fuse- block module or if the fuseblock module housing is faulty or damaged, the entire fuseblock module and the body wire harness unit must be replaced.

NOTE: If the fuseblock module is being replaced with a new unit, be certain to transfer each of the fuses from the faulty fuseblock module to the proper cavities of the replacement fuseblock module. Refer to Fuse/Fuse Block in the index for the location of complete fuse-block module circuit diagrams and cavity assignments.

1. Position the fuseblock module and the body wire harness onto the dash panel as a unit.
2. Install and tighten the two screws that secure the fuseblock module to the bracket on the dash panel. Tighten the screws to 3.3 N.m (30 in. lbs.).
3. Engage each of the retainers that secure the body wire harness to the vehicle body and chassis components. Refer to Connector Locations in Wiring for the location of the body wire harness retainer locations.
4. Install all of the fasteners that secure each of the body wire harness ground eyelets to the vehicle body and chassis components. Refer to Connector Locations in Wiring for the location of the body wire harness ground eyelet locations.
5. Reconnect each of the body wire harness connectors. Refer to Connector Locations in Wiring for the location of the body wire harness connector locations.
6. Install the instrument panel assembly onto the dash panel.
7. Reconnect the battery negative cable.
