"No Bus" In VF Display

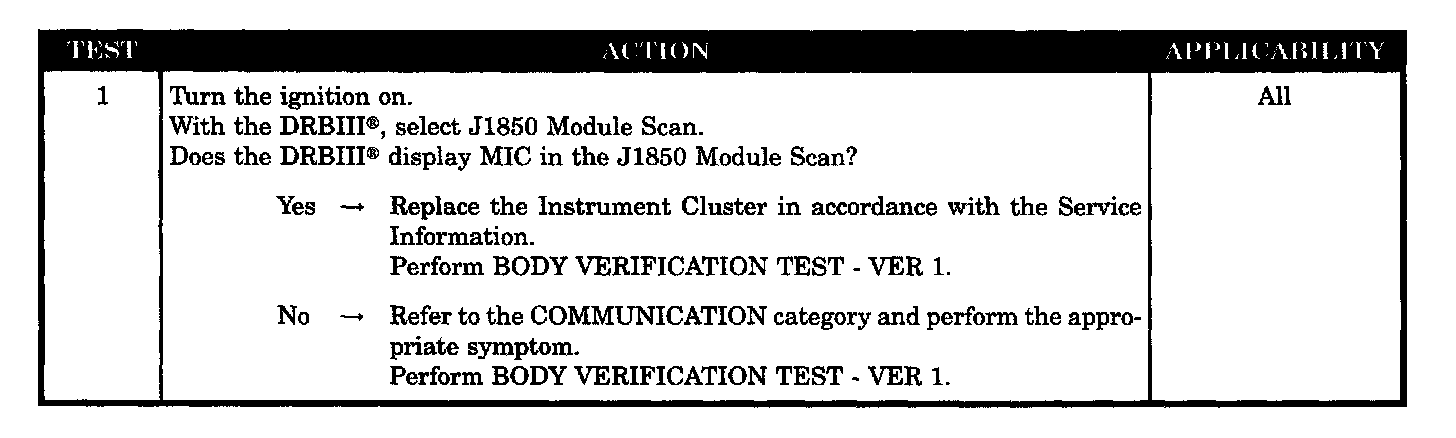

Test 1:






SYMPTOM
"NO BUS" IN VF DISPLAY

POSSIBLE CAUSES
- PCI BUS messages not rec'd by MIC
- Instrument cluster
