Instrument Cluster
>>
Air Bag Indicator Inoperative
Air Bag Indicator Inoperative

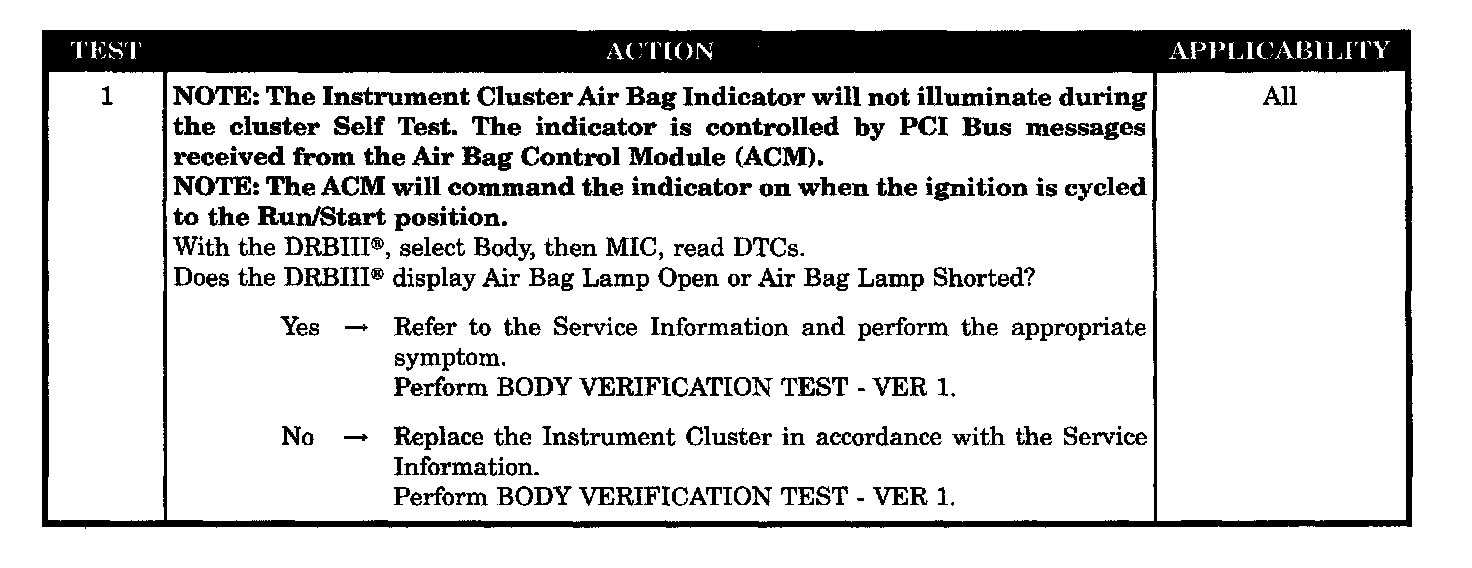

Test 1:
SYMPTOM
AIR BAG INDICATOR INOPERATIVE
POSSIBLE CAUSES
-
Instrument cluster
-
Airbag indicator DTC
