Speedometer Inaccurate or Inoperative

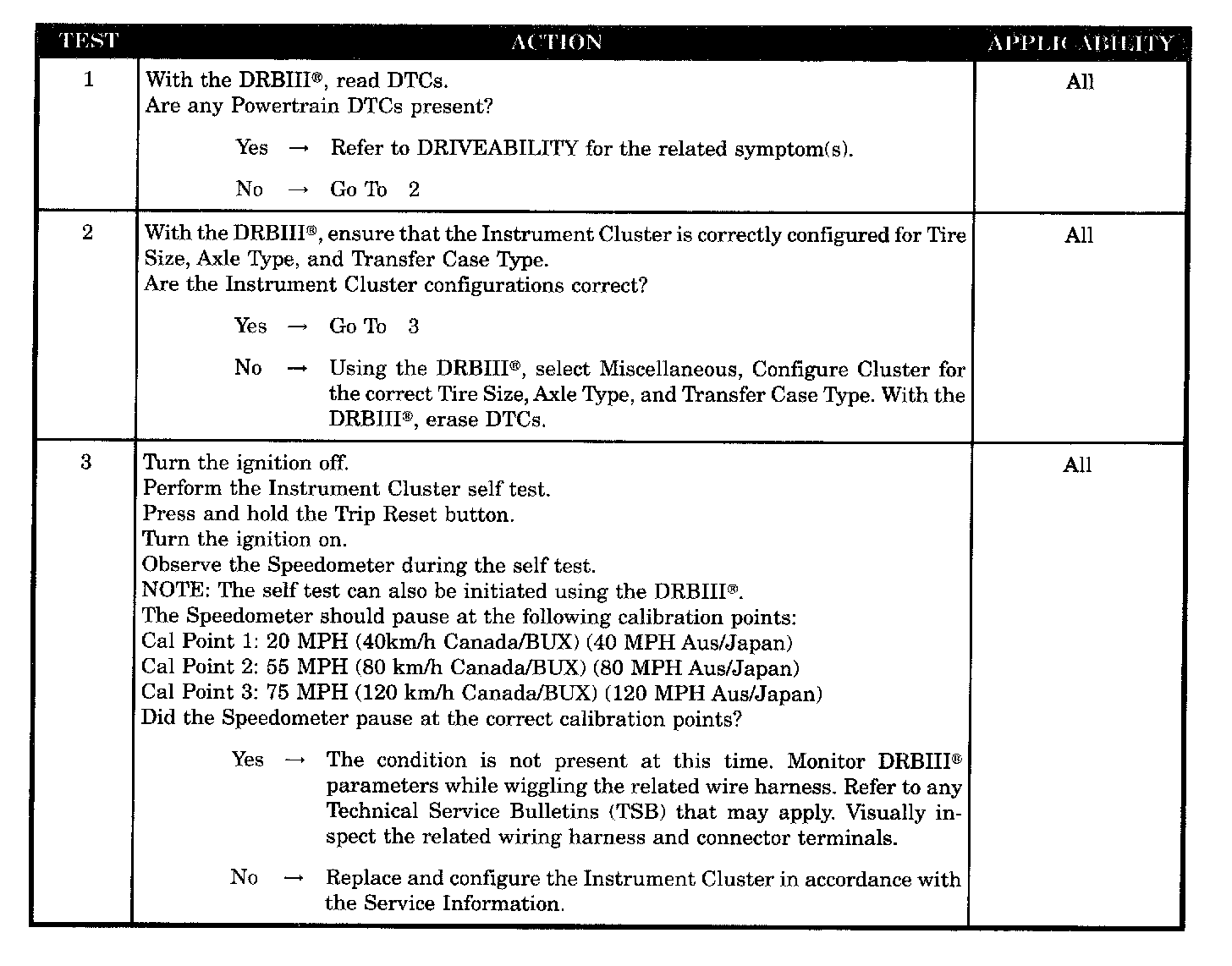

Test 1 - 3:






SYMPTOM
SPEEDOMETER INACCURATE OR INOPERATIVE

POSSIBLE CAUSES
- PCM DTC present
- Incorrect configuration
- Intermittent condition
- Instrument cluster
