Coolant Temperature Sensor/Switch (For Computer)
>>
Locations
>>
Connector Locations
Connector Locations

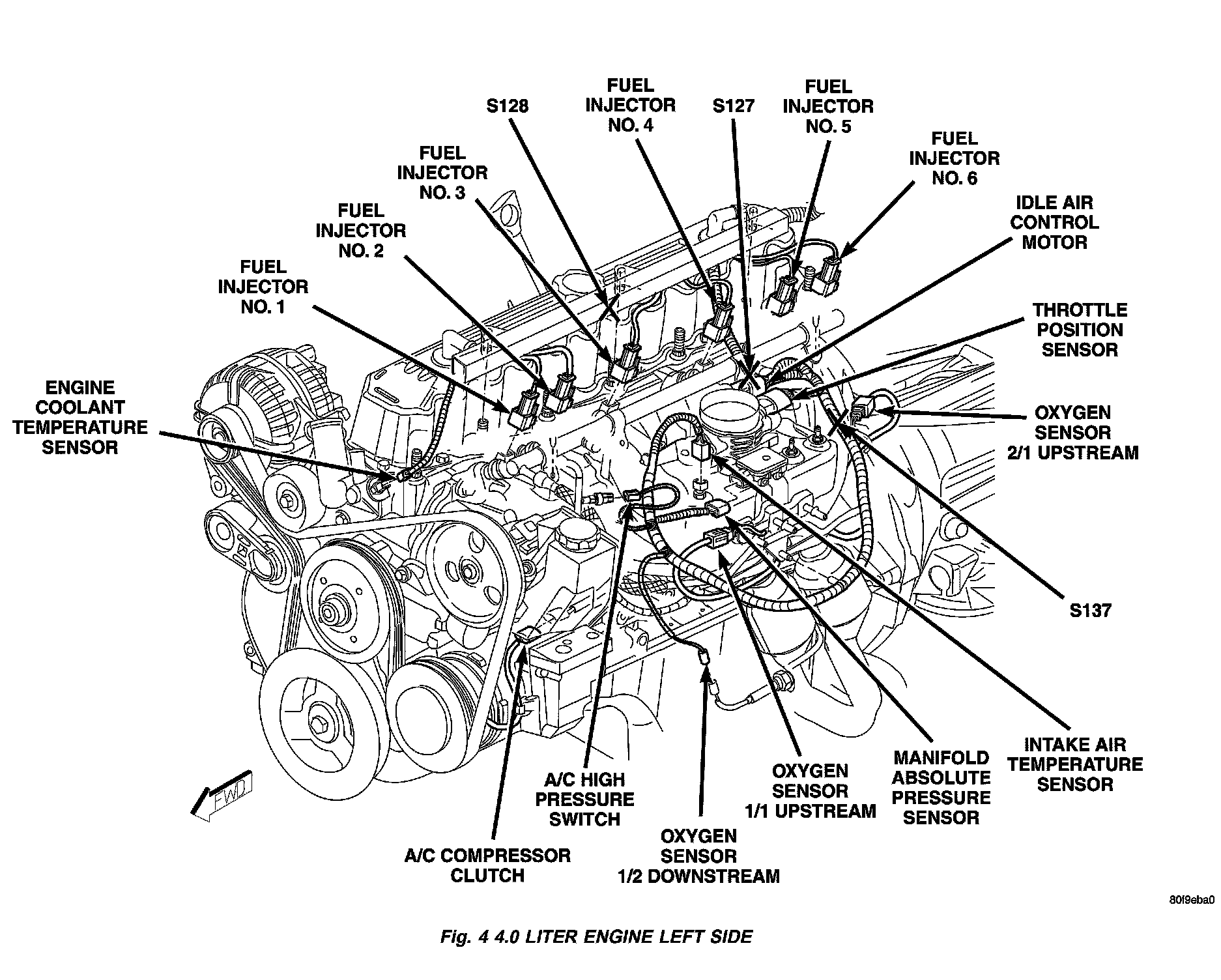

Fig.4 4.0L Engine Left Side:
4.0 Liter Engine Left Side:
