Speaker
Speaker

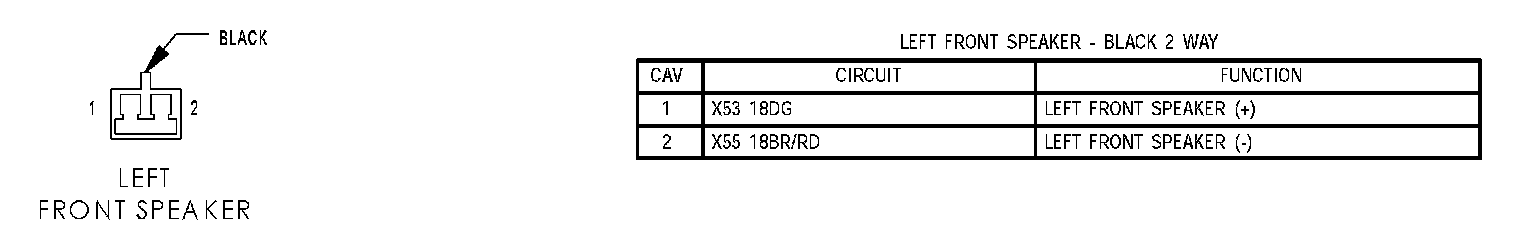

Left Front Speaker:

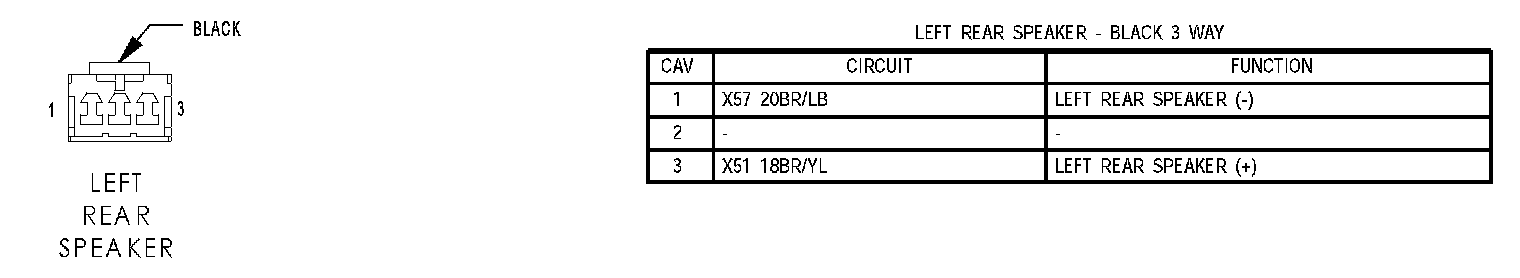

Left Rear Speaker:

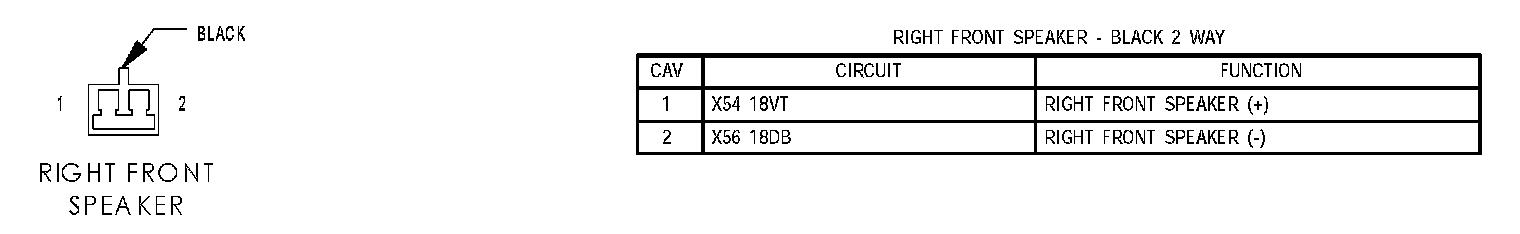

Right Front Speaker:

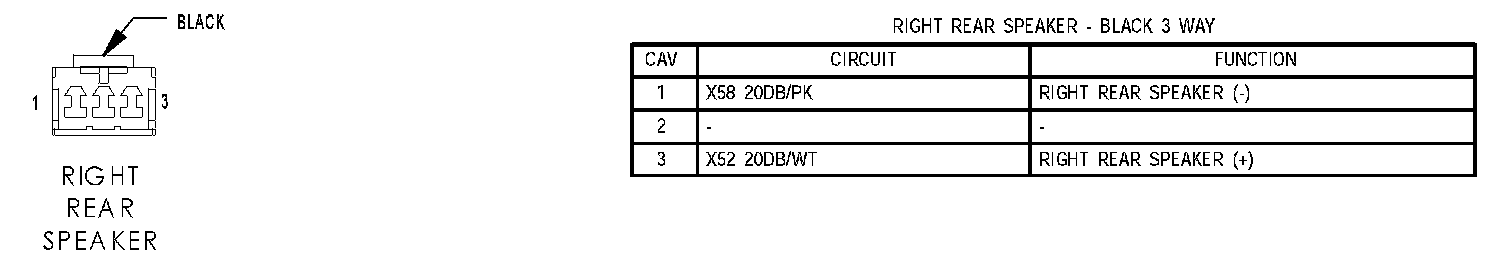

Right Rear Speaker:

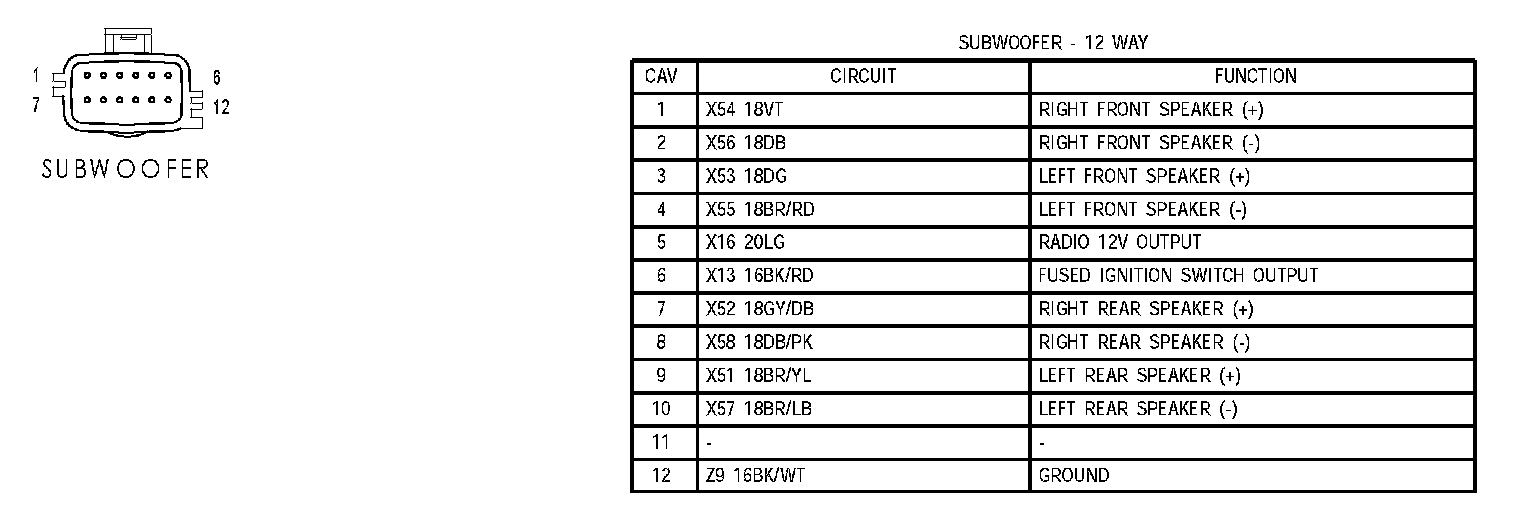

Sub Woofer:
