Blower Motor Resistor: Service and Repair

REMOVAL

WARNING: ON VEHICLES EQUIPPED WITH AIR-BAGS, DISABLE THE AIRBAG SYSTEM BEFORE ATTEMPTING ANY STEERING WHEEL, STEERING COLUMN, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. DISCONNECT AND ISOLATE THE BATTERY NEGATIVE (GROUND) CABLE, THEN WAIT TWO MINUTES FOR THE AIRBAG SYSTEM CAPACITOR TO DISCHARGE BEFORE PERFORMING FURTHER DIAGNOSIS OR SERVICE. THIS IS THE ONLY SURE WAY TO DISABLE THE AIRBAG SYSTEM. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIR-BAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.

CAUTION: Stay clear of the blower motor and resistor block (Hot). Do not operate the blower motor with the resistor block removed.

1. Disconnect and isolate the battery negative cable.
2. Remove the glove box from the instrument panel.

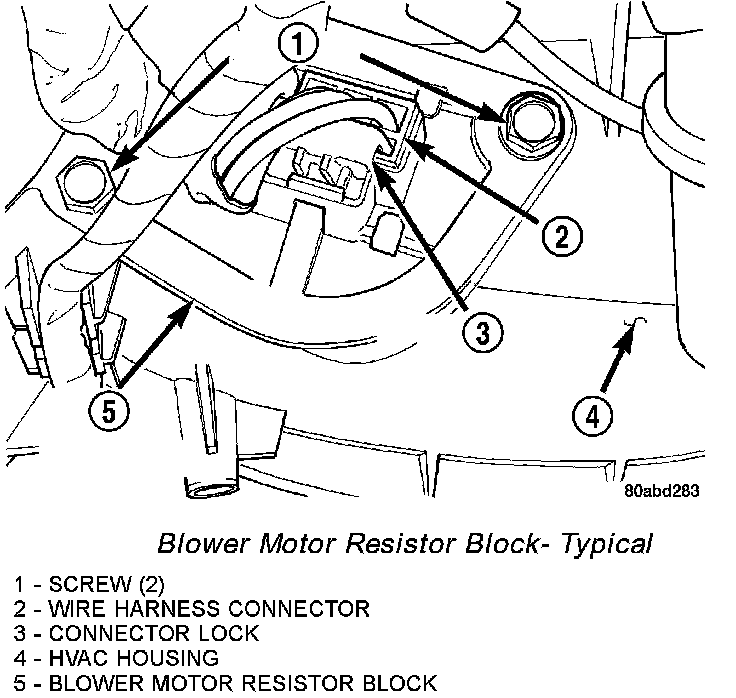

Blower Motor Resistor Block - Typical:

3. Pull out the lock on the blower motor resistor wire harness connector to unlock the connector latch .
4. Depress the latch on the blower motor resistor wire harness connector and disconnect the connector from the resistor.
5. Remove the two screws that secure the blower motor resistor block to the HVAC housing.
6. Remove the resistor block from the HVAC housing.

INSTALLATION
1. Position the blower motor resistor block into the HVAC housing.
2. Install the two screws that secure the resistor block to the HVAC housing. Tighten the screws to 2.2 Nm (20 in. lbs.).
3. Connect the wire harness connector to the resistor block.
4. Push in the lock on the blower motor resistor wire harness connector to lock the connector latch.
5. Install the glove box.
6. Reconnect the battery negative cable.
