Dome Lamp: Service and Repair

REMOVAL

NOTE: The dome lamp removal procedure is the same for both the right and left side dome lamps.

1. Disconnect the negative battery cable.

NOTE: The dome lamp lens locating tab is larger than the lens retaining tabs.

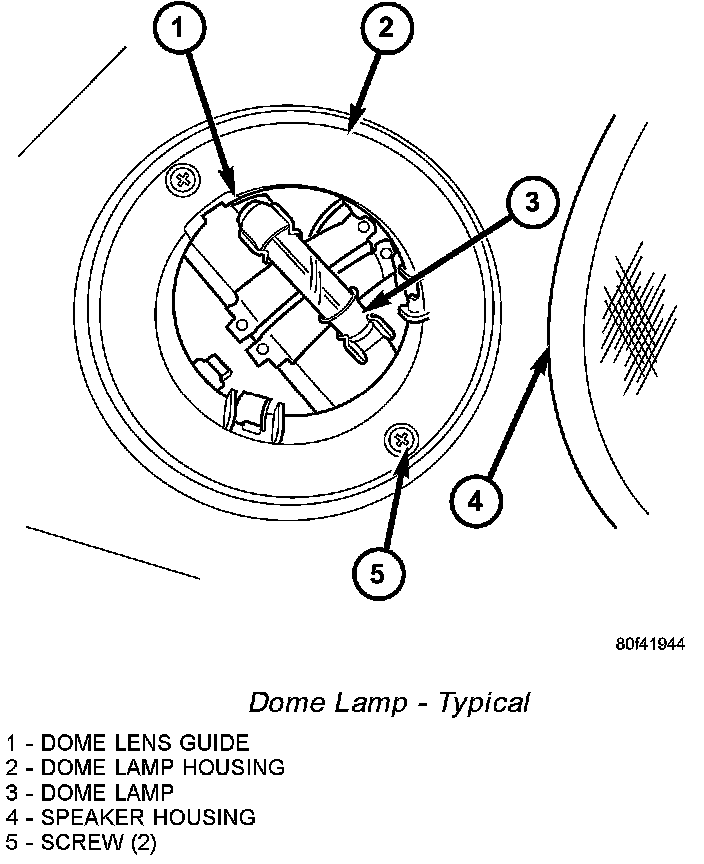

Dome Lamp - Typical:

2. Insert a small flat blade between the dome lamp housing and dome lamp lens. Carefully pry the lamp lens from the lamp housing .
3. Remove the screws that secure the dome lamp housing to the speaker housing.
4. Remove the dome lamp housing from the speaker housing and disconnect the wire harness connector from the dome lamp.

INSTALLATION

NOTE: The dome lamp installation procedure is the same for both the right and left side dome lamps.

1. Connect the wire harness connector to the dome lamp.

NOTE: The dome lamp housing is equipped with a locating tab that must be inserted into the slot in the speaker housing.

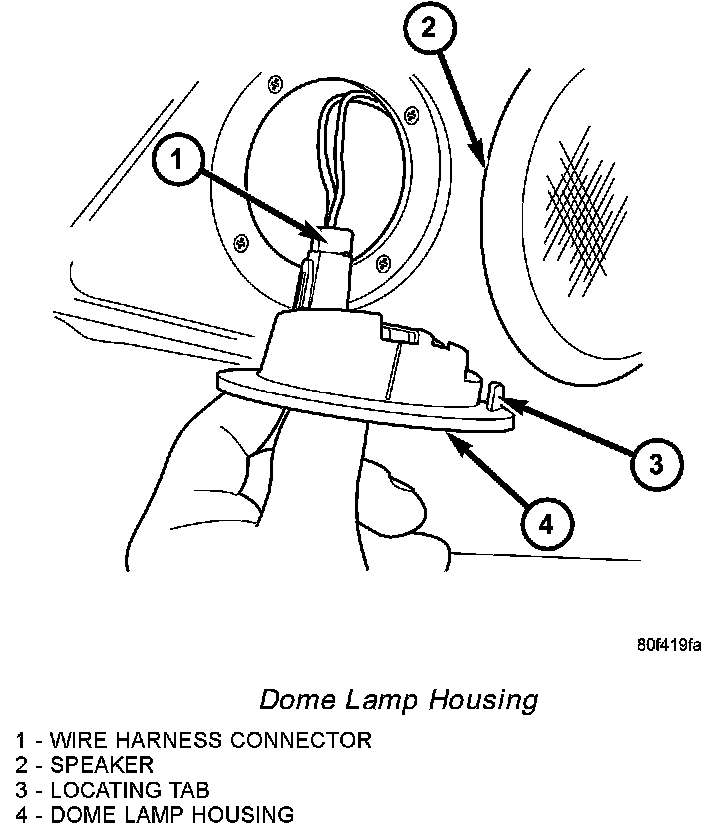

Dome Lamp Housing:

2. Align the locating tab with the slot and position the dome lamp housing into the speaker housing .
3. Install the screws that secure the dome lamp housing to the speaker housing.

NOTE: The dome lamp lens is equipped with a locating tab that must be inserted into the slot in the dome lamp housing.

4. Align the dome lamp lens locating tab with the slot in the dome lamp housing and press the lens into place.
5. Reconnect the negative battery cable.
