Headlamp: Service and Repair

REMOVAL
1. Disconnect and isolate the battery negative cable.

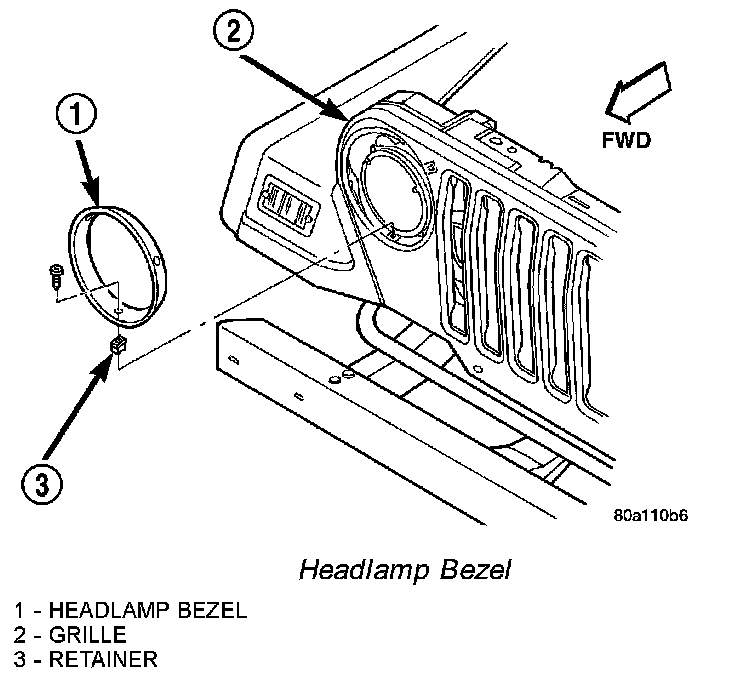

Headlamp Bezel:

2. Remove the screws that secure the headlamp bezel to the grille.

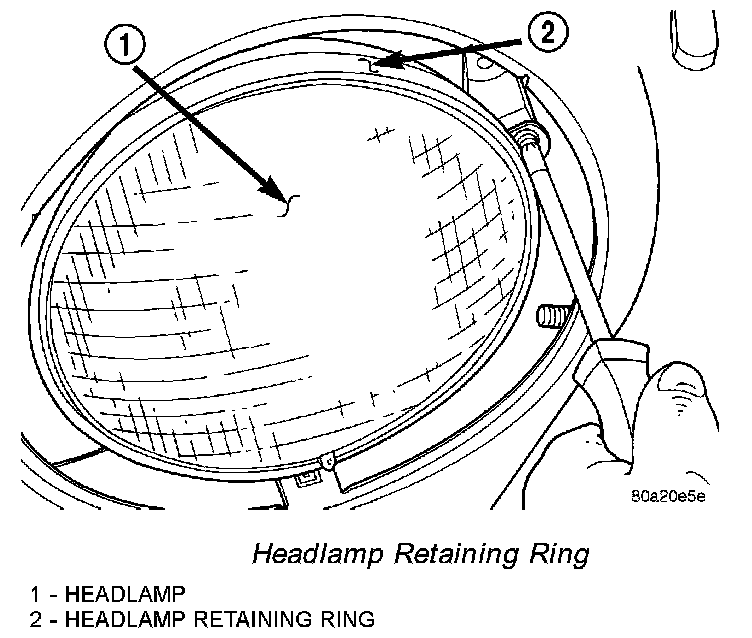

Headlamp Retaining Ring:

3. Remove the screws that secure the headlamp retaining ring to the headlamp bucket .

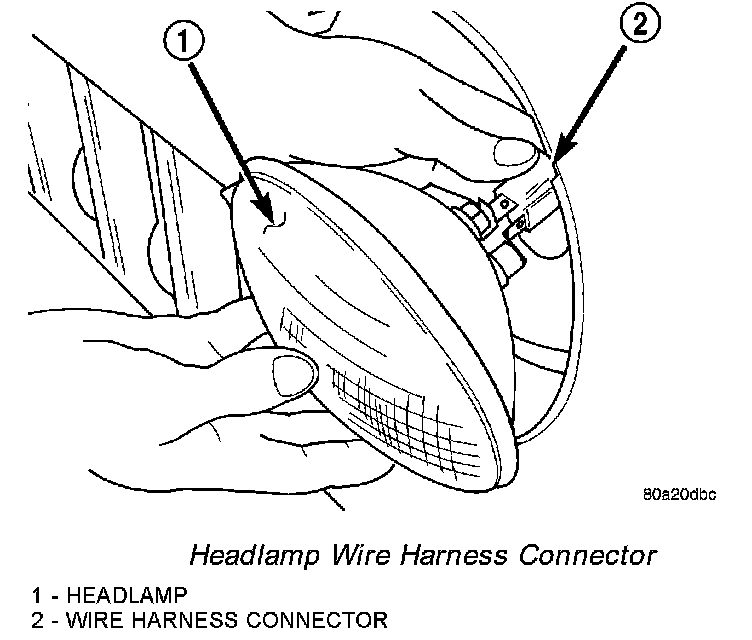

Headlamp Wire Harness Connector:

4. Remove the headlamp from the bucket and disconnect the wire harness connector from the headlamp .

INSTALLATION
1. Connect the wire harness connector to the headlamp and position the headlamp into the bucket.

NOTE: Insure the bosses on the headlamp align with the slots in the bucket.

2. Align the headlamp bosses with the slots in the bucket and install the retaining ring.
3. Install the screws that secure the headlamp retaining ring to the headlamp bucket. Tighten the screws securely.
4. Install the headlamp bezel.

NOTE: Do not overtighten the screws or damage to the headlamp bezel may result.

5. Install the screws that secure the headlamp bezel. Tighten the screws securely.
6. Reconnect the battery negative cable.
