Horn: Service and Repair

REMOVAL






1. Disconnect and isolate the battery negative cable.

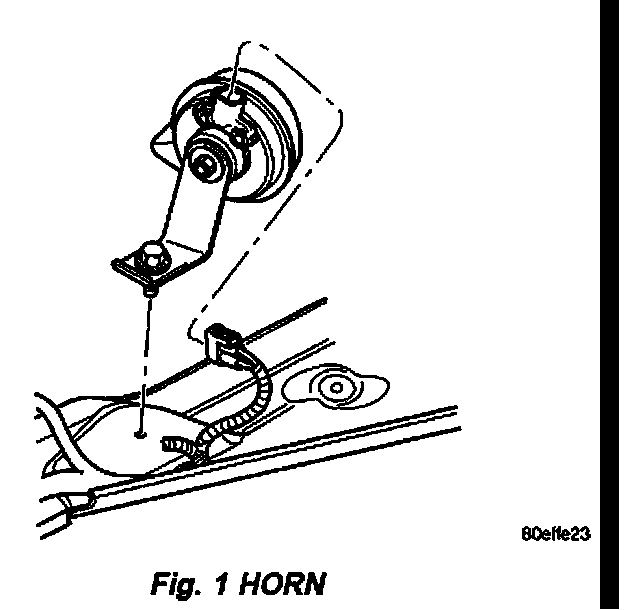

2. Disconnect the wire harness connector from the horn (Fig. 1).
3. Remove the screw that secures the horn and mounting bracket to the left front inner fender shield.
4. Remove the horn and mounting bracket from the left front inner fender shield.

INSTALLATION

1. Position the horn and mounting bracket onto the left front inner fender shield.
2. Install the mounting screw. Tighten the screw to 8.5 Nm (75 in. lbs.).
3. Reconnect the wire harness connector.
4. Connect the battery negative cable.
