Turn Signal Flasher: Service and Repair

REMOVAL

WARNING: ON VEHICLES EQUIPPED WITH AIR-BAGS, DISABLE THE AIRBAG SYSTEM BEFORE ATTEMPTING ANY STEERING WHEEL, STEERING COLUMN, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. DISCONNECT AND ISOLATE THE BATTERY NEGATIVE (GROUND) CABLE, THEN WAIT TWO MINUTES FOR THE AIRBAG SYSTEM CAPACITOR TO DISCHARGE BEFORE PERFORMING FURTHER DIAGNOSIS OR SERVICE. THIS IS THE ONLY SURE WAY TO DISABLE THE AIRBAG SYSTEM. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIR-BAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.

1. Disconnect and isolate the battery negative cable.
2. Remove the steering column cover from the instrument panel.

Steering Column Shrouds Remove/Install:

3. Remove the screws that secure the lower steering column shroud to the upper shroud .
4. Move the tilt steering column to the fully lowered position and leave the tilt release lever in the released position.
5. Remove the upper shroud from the steering column.
6. Grasp the combination flasher firmly and pull it toward the dash panel to disengage the flasher terminals.

INSTALLATION

WARNING: ON VEHICLES EQUIPPED WITH AIR-BAGS, DISABLE THE AIRBAG SYSTEM BEFORE ATTEMPTING ANY STEERING WHEEL, STEERING COLUMN, SEAT BELT TENSIONER, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. DISCONNECT AND ISOLATE THE BATTERY NEGATIVE (GROUND) CABLE, THEN WAIT TWO MINUTES FOR THE AIRBAG SYSTEM CAPACITOR TO DISCHARGE BEFORE PERFORMING FURTHER DIAGNOSIS OR SERVICE. THIS IS THE ONLY SURE WAY TO DISABLE THE AIRBAG SYSTEM. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.

Combination Flasher:

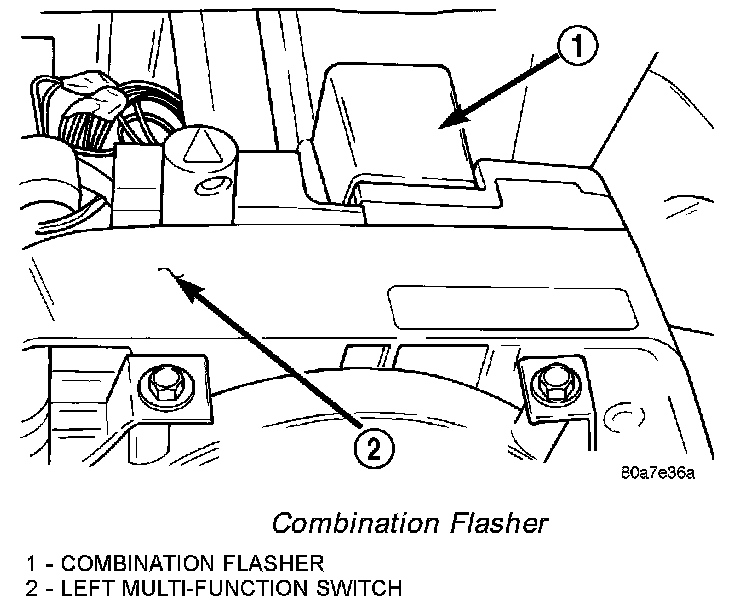

1. Align the combination flasher terminals with the terminals in the connector on the back of the left multi-function switch housing.
2. Push on the combination flasher until the terminals are fully seated in the left multi-function switch connector.
3. Position the upper shroud onto the steering column .
4. Install and tighten the screws that secure the lower steering column shroud to the upper shroud. Tighten the screws to 2 Nm (18 in. lbs.).
5. Move the tilt steering column to the fully raised position and secure it in place by moving the tilt release lever back to the locked position.
6. Reinstall the steering column opening cover.
7. Reconnect the battery negative cable.
