Manifold Pressure/Vacuum Sensor: Diagrams

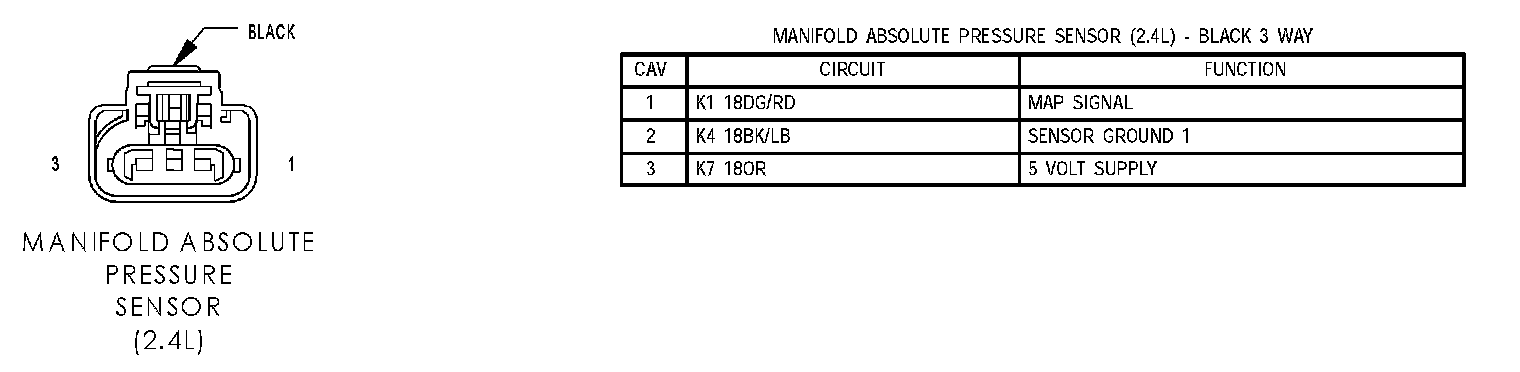

Manifold Absolute Pressure Sensor (2.4L):



Manifold Absolute Pressure Sensor (4.0L):



Manfold Absolute Pressure Sensor (2.4L Only):
