Wrangler L4-2.4L VIN 1
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Manifold Pressure/Vacuum Sensor
>>
Locations
>>
Connector Locations
Connector Locations

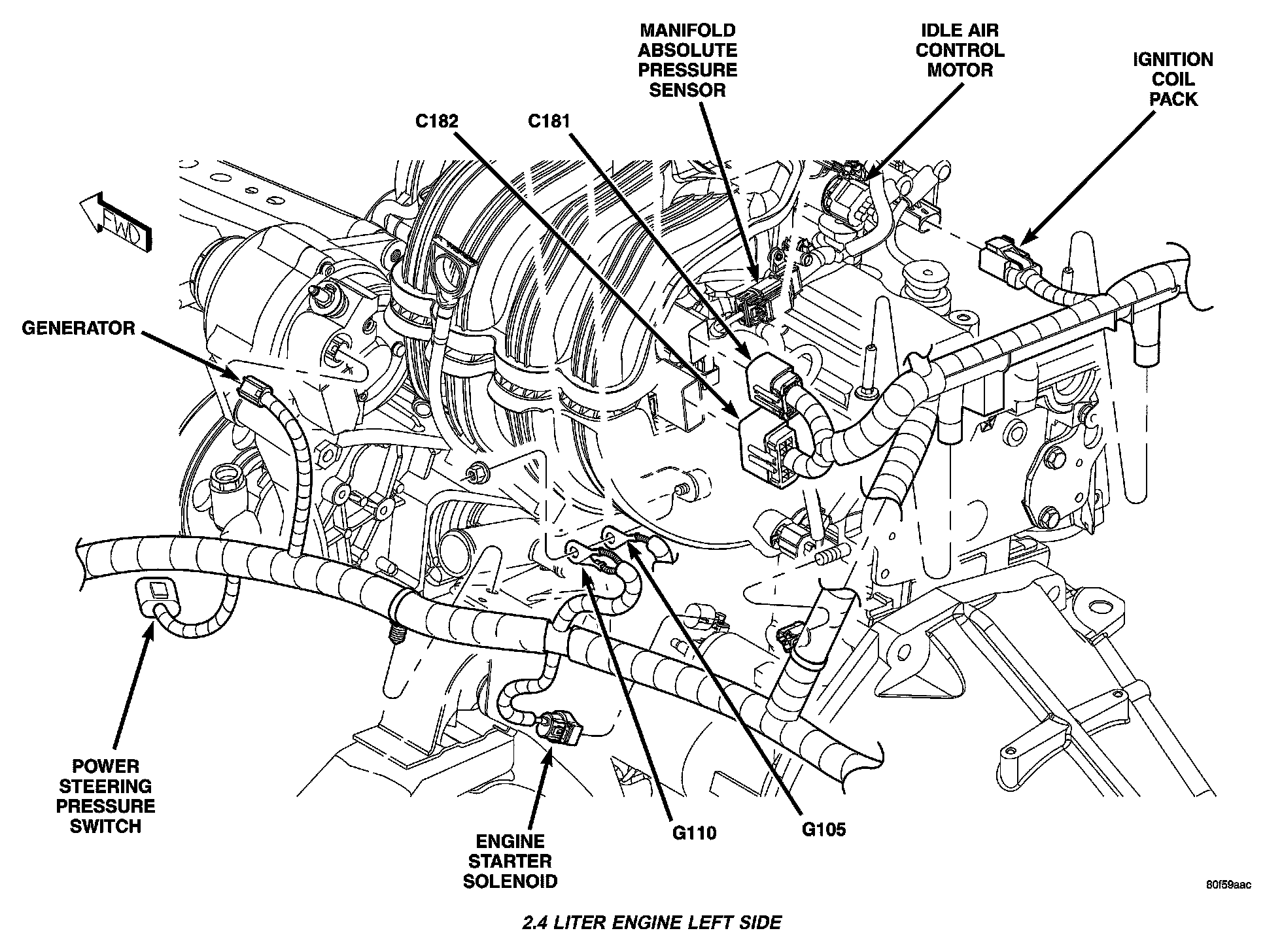

2.4 Liter Engine Left Side:
