Oxygen Sensor
>>
Locations
>>
Connector Locations
Connector Locations

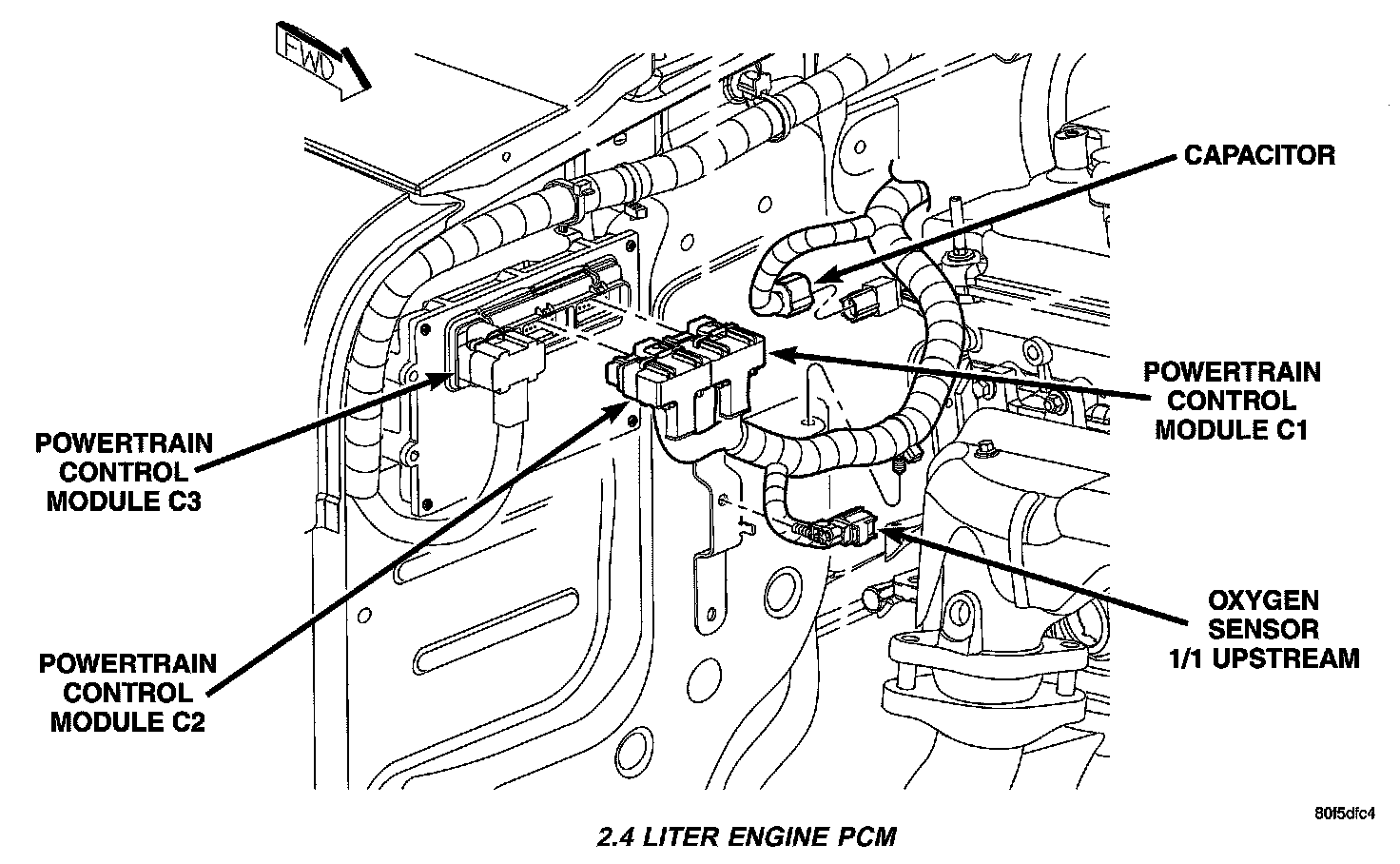

2.4 Liter Engine PCM:

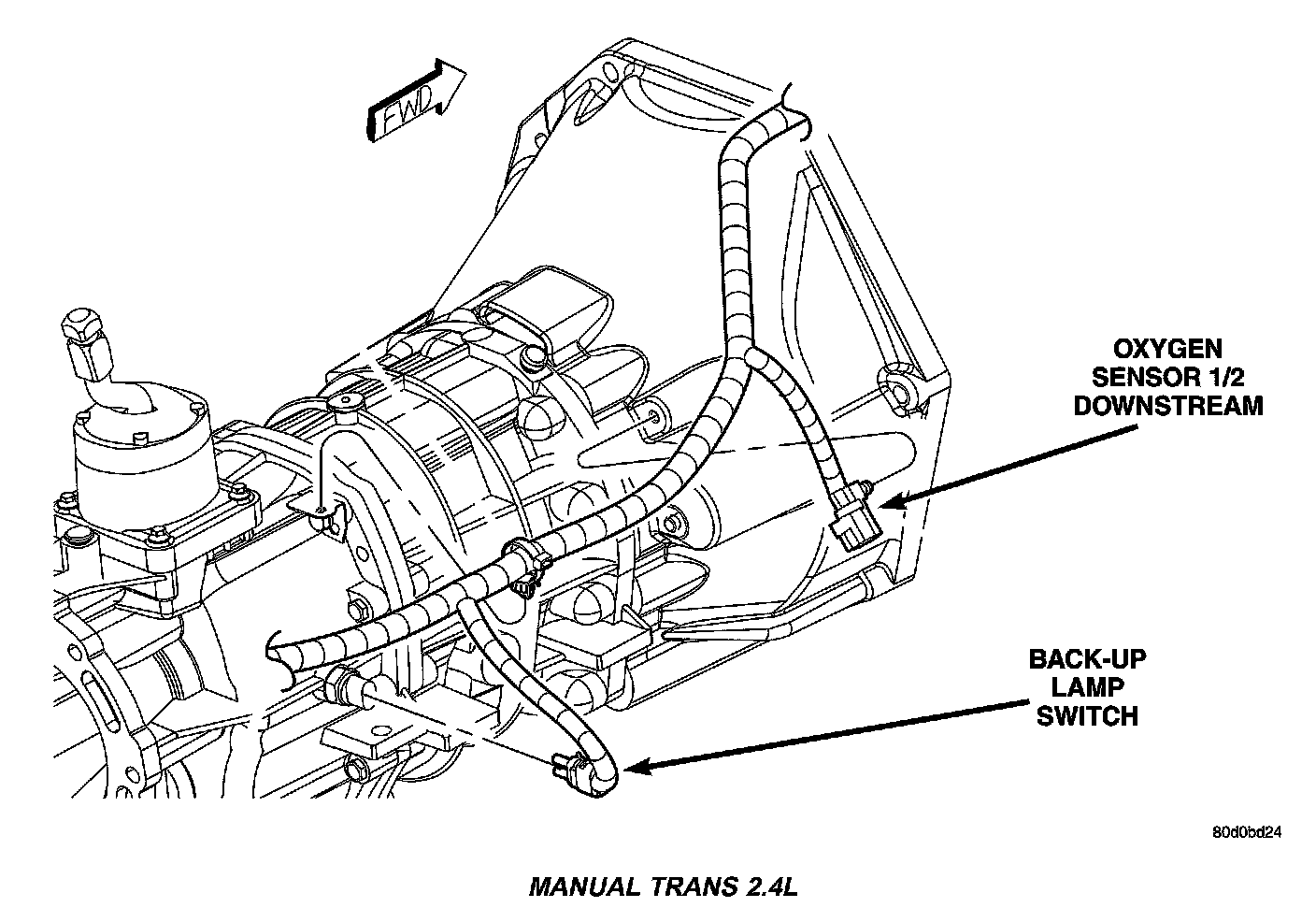

Manuel Trans 2.4L:
