DRB III Error Messages and Blank Screen

Under normal operation, the DRBIII(R) will display one of only two error messages:
- User-Requested WARM Boot by pressing MORE and NO at the same time.

ver: 2.29
date: 1 Oct 93
file: key_itf.cc
date: Jan 12 1994
line: 544
err: Ox1
User-Requested WARM Boot

Press MORE to switch between this display and the application screen.
Press F4 when done noting information.
or
- User-Requested COLD Boot by pressing MORE and YES at the same time.

ver: 2.29
date: 1 Oct 99
file: key_hnd1.cc
date: Mar 8 2000
line: 1297
err: Ox1
User-Requested COLD Boot
Press MORE to switch between this display and the application screen.
Press F4 when done noting information.

If the DRBIII(R) should display any other error message, record the entire display and call the Star Center.

DRBIII(R) DOES NOT POWER UP
If the LED's do not light or no sound is emitted at start up, check for loose cable connections or a bad cable. Check the vehicle battery voltage (data link connector cavity 16). Check for proper ground connection at DLC cavity. A minimum of 11 volts is required to adequately power the DRBIII(R).

If all connections are proper between the DRBIII and the vehicle or other devices, and the vehicle battery is fully charged, and inoperative DRBIII(R) may be the result of faulty cable or vehicle wiring. For a blank screen, refer to the appropriate body diagnostics.





DISPLAY IS NOT VISIBLE

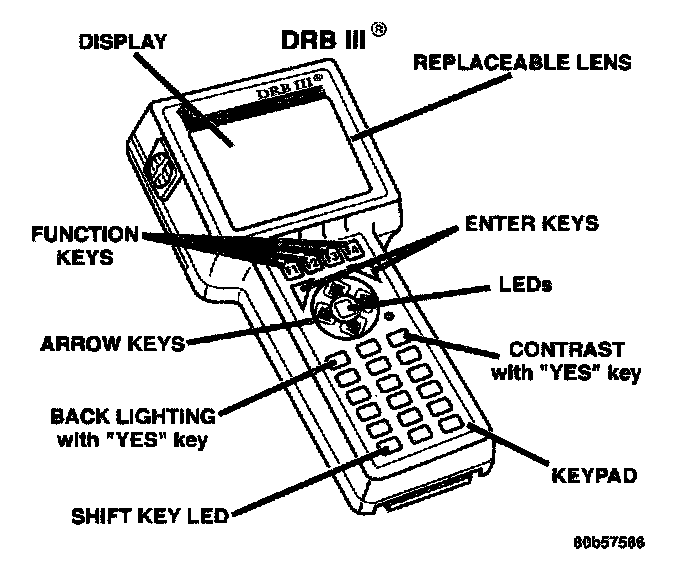

Low temperatures with affect the visibility of the display. Adjust the contrast to compensate for this condition.
