Front Check Valve Replacement

REMOVAL
1. Unlatch, open and support the hood.

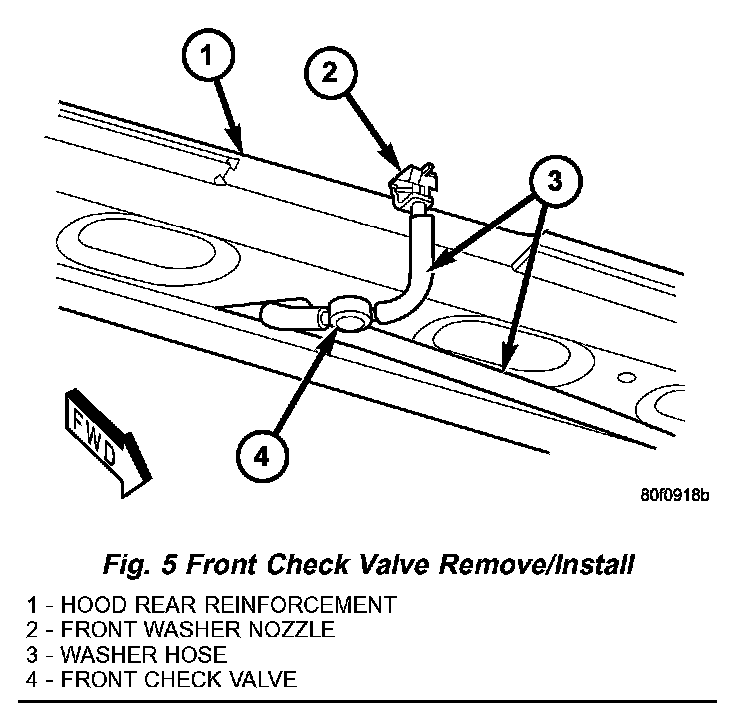

Fig. 5 Front Check Valve Remove/Install:

2. Locate the front check valve in the washer supply hose for the front washer nozzle. The check valve is installed in the washer supply hose about 5 centimeters (2 inches) from the front washer nozzle nipple near the rear hood panel reinforcement.
3. Disconnect the washer supply hose for the front washer nozzle from the barbed outlet nipple on the front washer system check valve. A small quantity of washer fluid may drain from the disconnected hose.
4. Disconnect the washer supply hose for the reservoir from the barbed inlet nipple of the front check valve. Either install a temporary plug in the washer supply hose for the reservoir or secure the loose end of this hose at a point higher than the washer reservoir to prevent the contents of the washer reservoir from draining through this hose.
5. Remove the front check valve from the engine compartment.

INSTALLATION
1. Position the front check valve in the engine compartment.

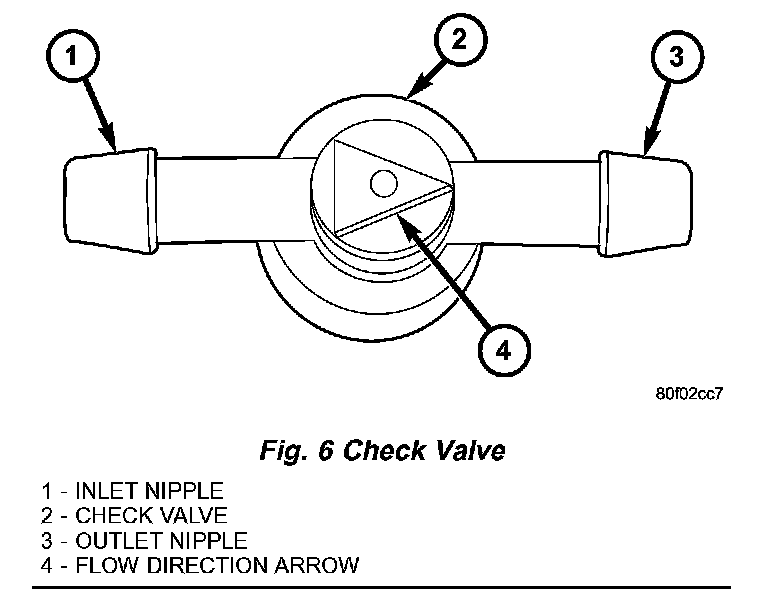

Fig. 6 Check Valve:

2. With the directional arrow on the check valve pointed in the direction of the system flow, reconnect the washer supply hose from the reservoir to the barbed inlet nipple of the front check valve.
3. Reconnect the washer supply hose from the front washer nozzle to the barbed outlet nipple of the front check valve.
4. Check that the washer supply hoses are properly routed and are not pinched.
5. Close and latch the hood
