Grand Cherokee 2WD V6-3.7L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module, A/T
Control Module, A/T

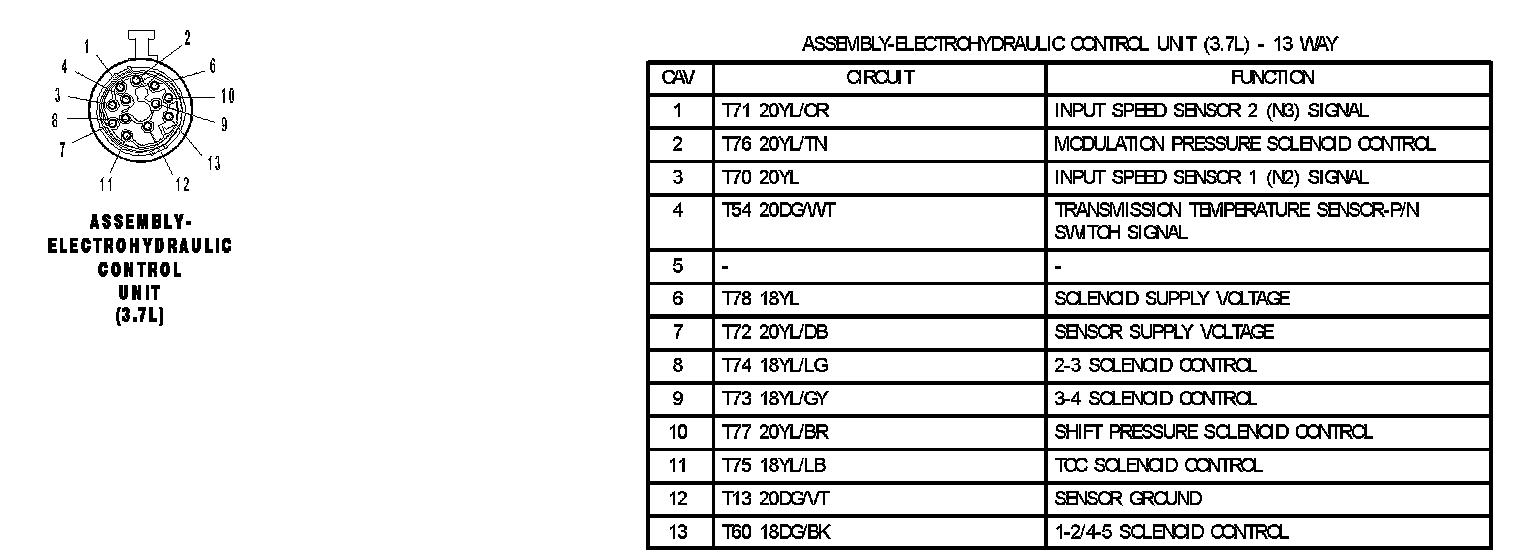

Assembly Electrohydraulic Control Unit (3.7L):

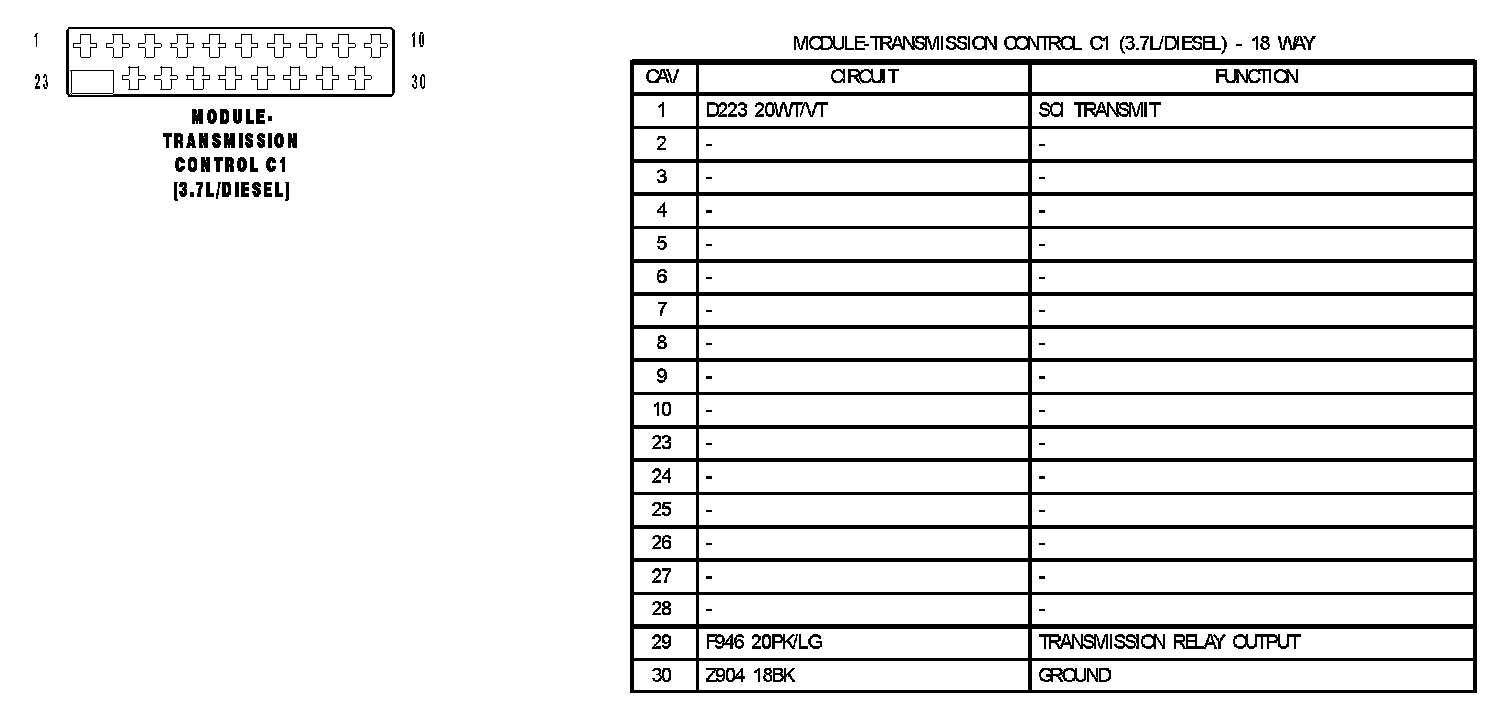

Module Transmission Control C1 (3.7L/diesel):

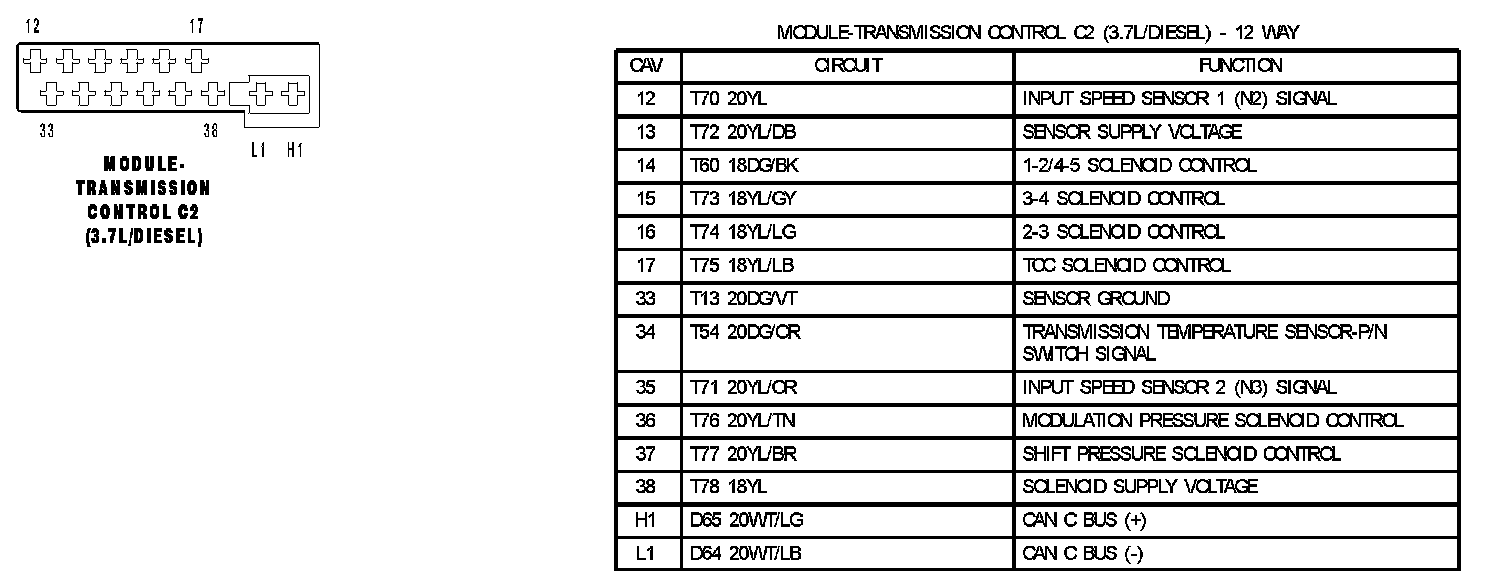

Module Transmission Control C2 (3.7L/diesel):
