Operation CHARM
: Car repair manuals for everyone.
Home
>>
Jeep
>>
2005
>>
Grand Cherokee 2WD V6-3.7L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
DVD Player
DVD Player

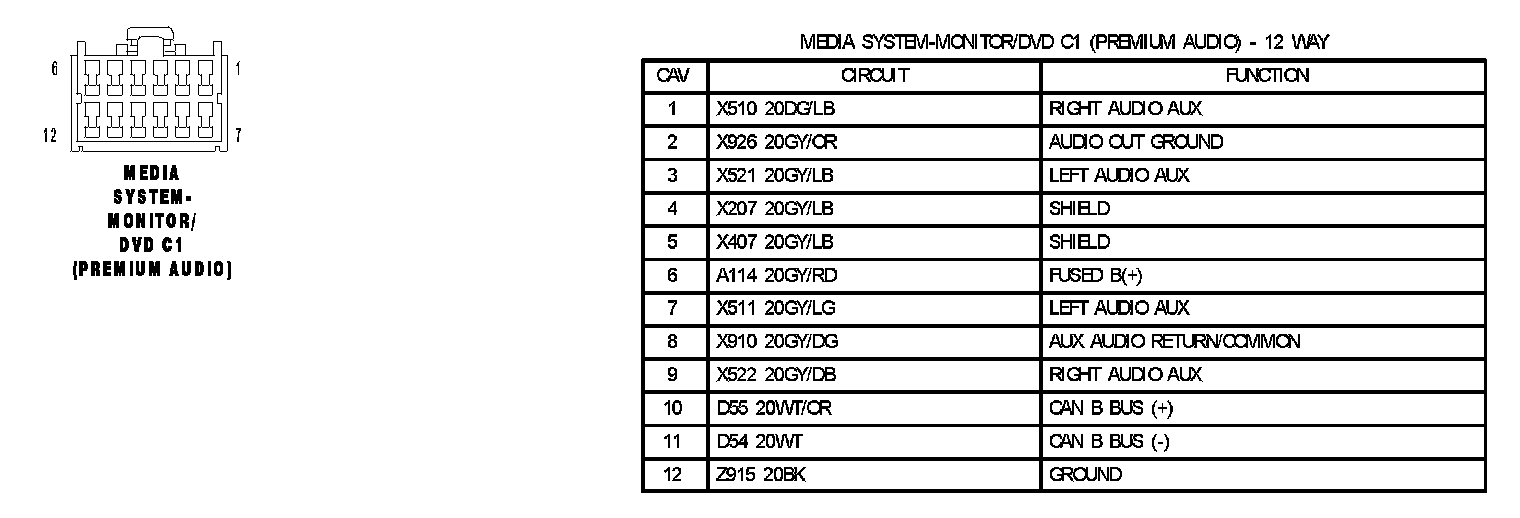

Media System Monitor/DVD C1 (Premium Audio):

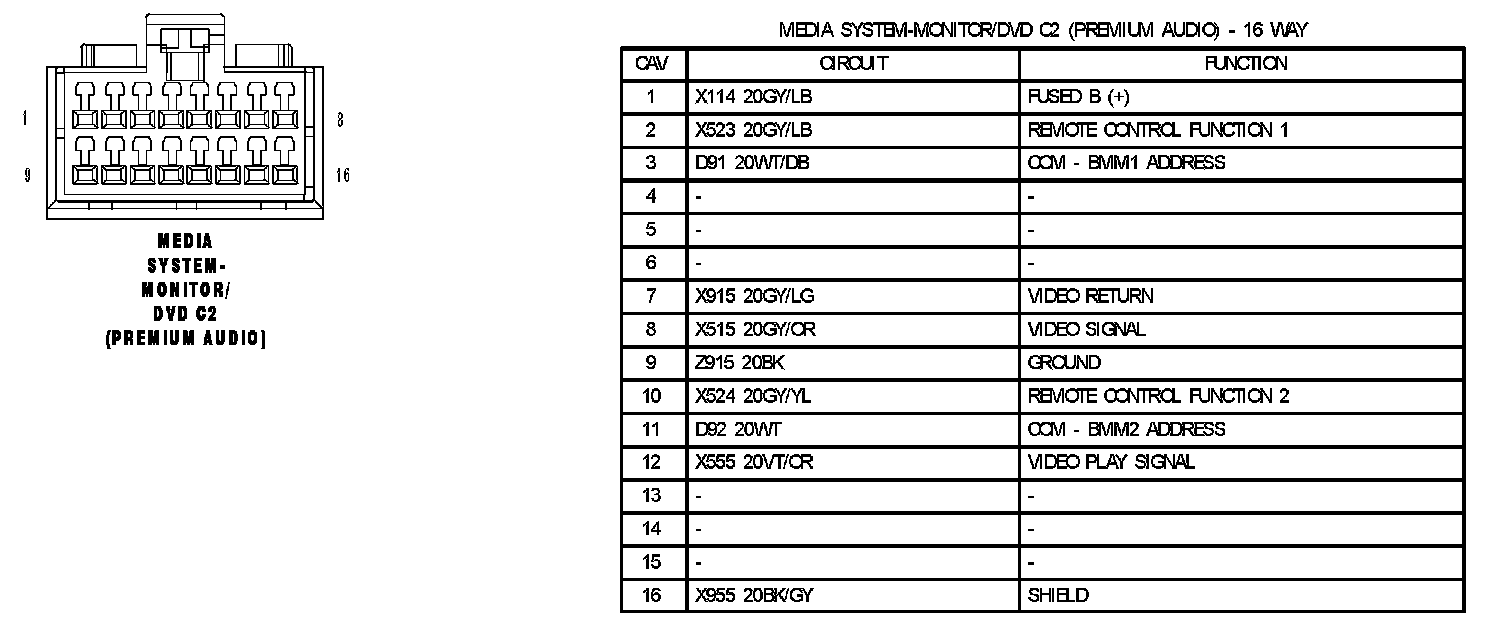

Media System Monitor/DVD C2 (Premium Audio):

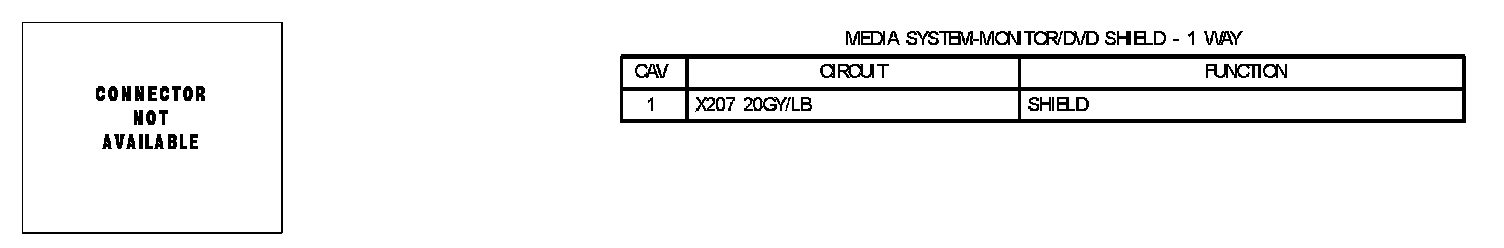

Media System Monitor/DVD Shield - 1 Way:

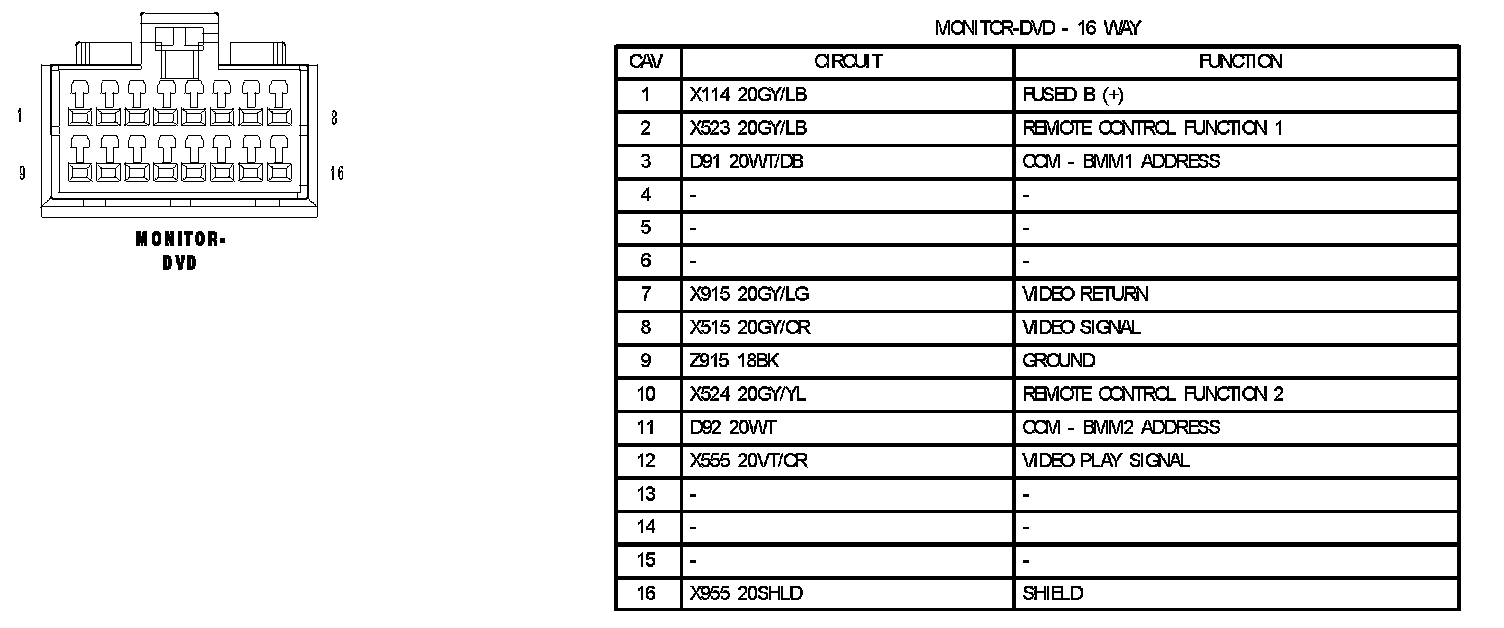

Monitor DVD:
