Fuel Injector
Fuel Injector

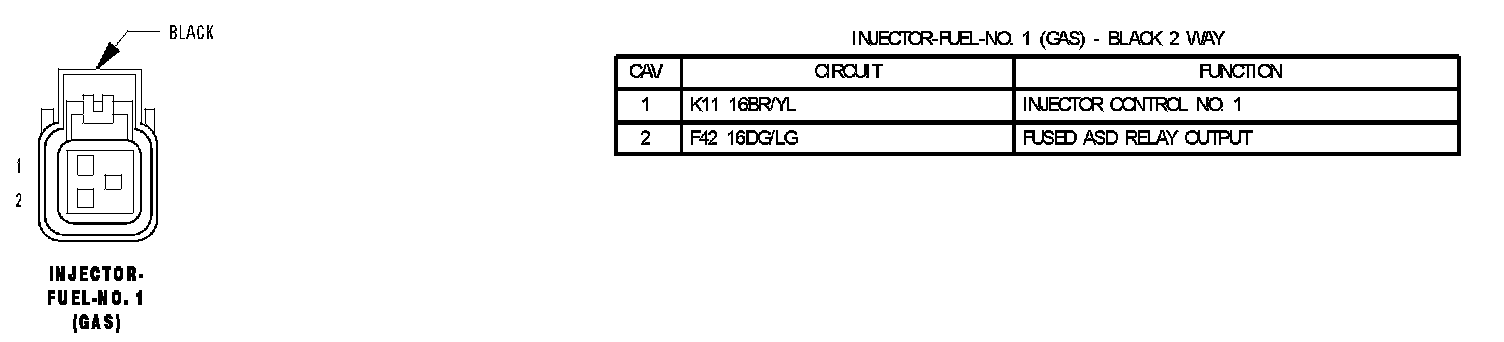

Injector Fuel No.1 (Gas):

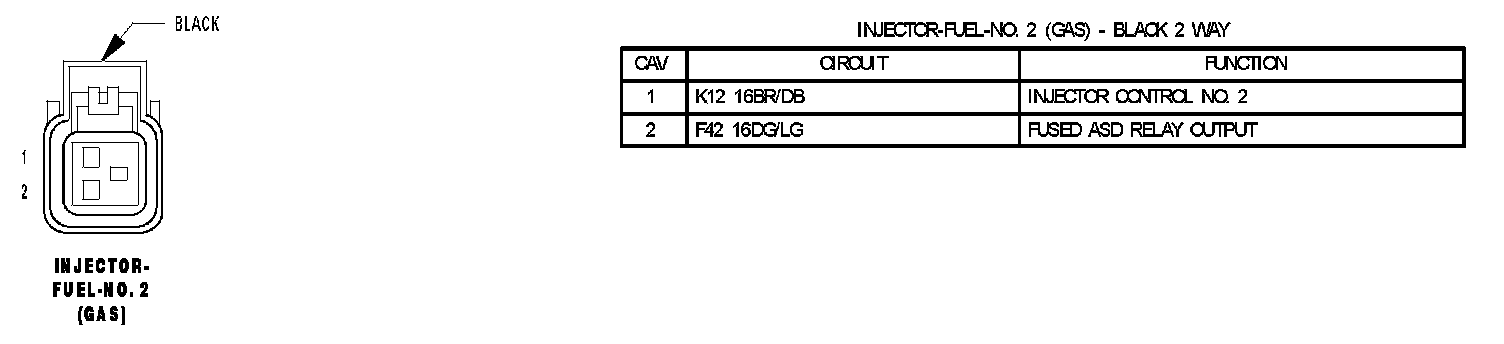

Injector Fuel No.2 (Gas):

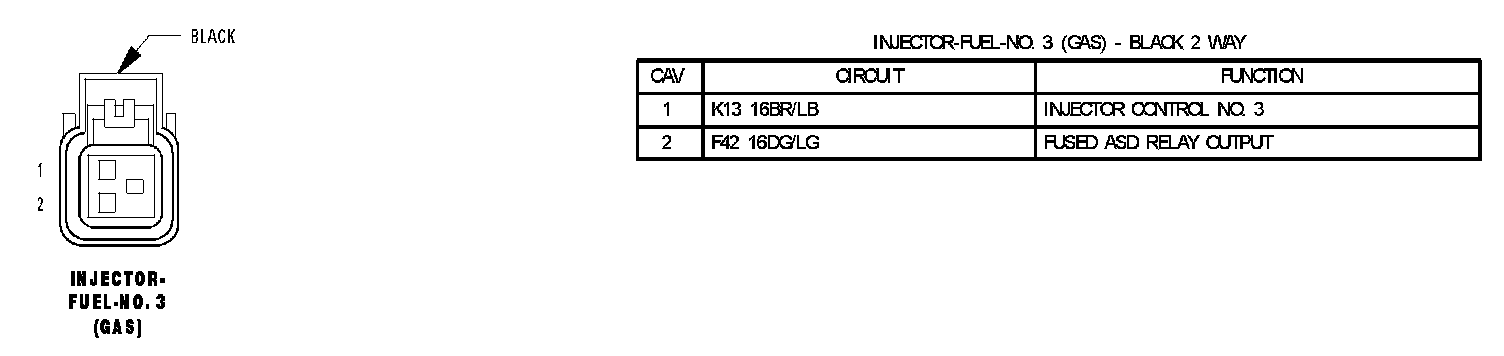

Injector Fuel No.3 (Gas):

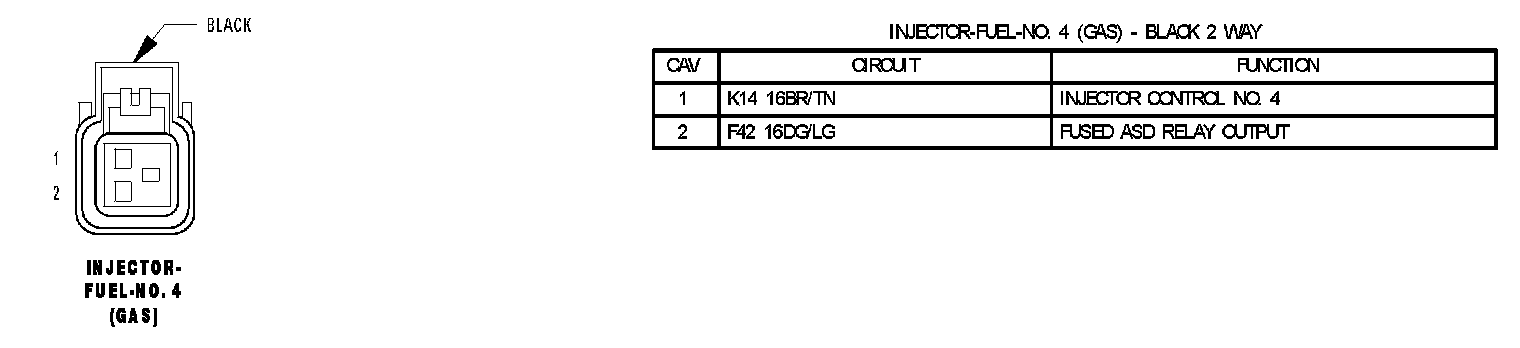

Injector Fuel No.4 (Gas):
Injector Fuel No.5 (Gas):

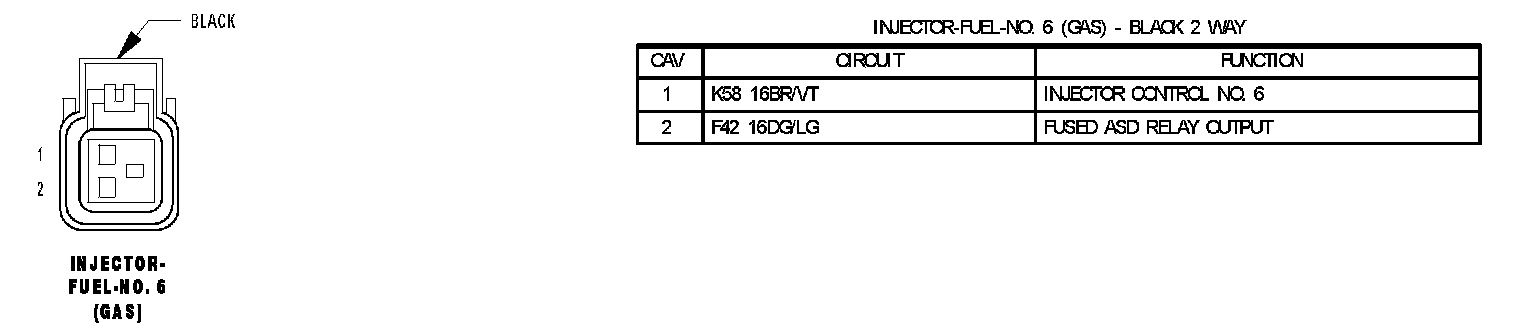

Injector Fuel No.6 (Gas):
