Parking Assist Control Module

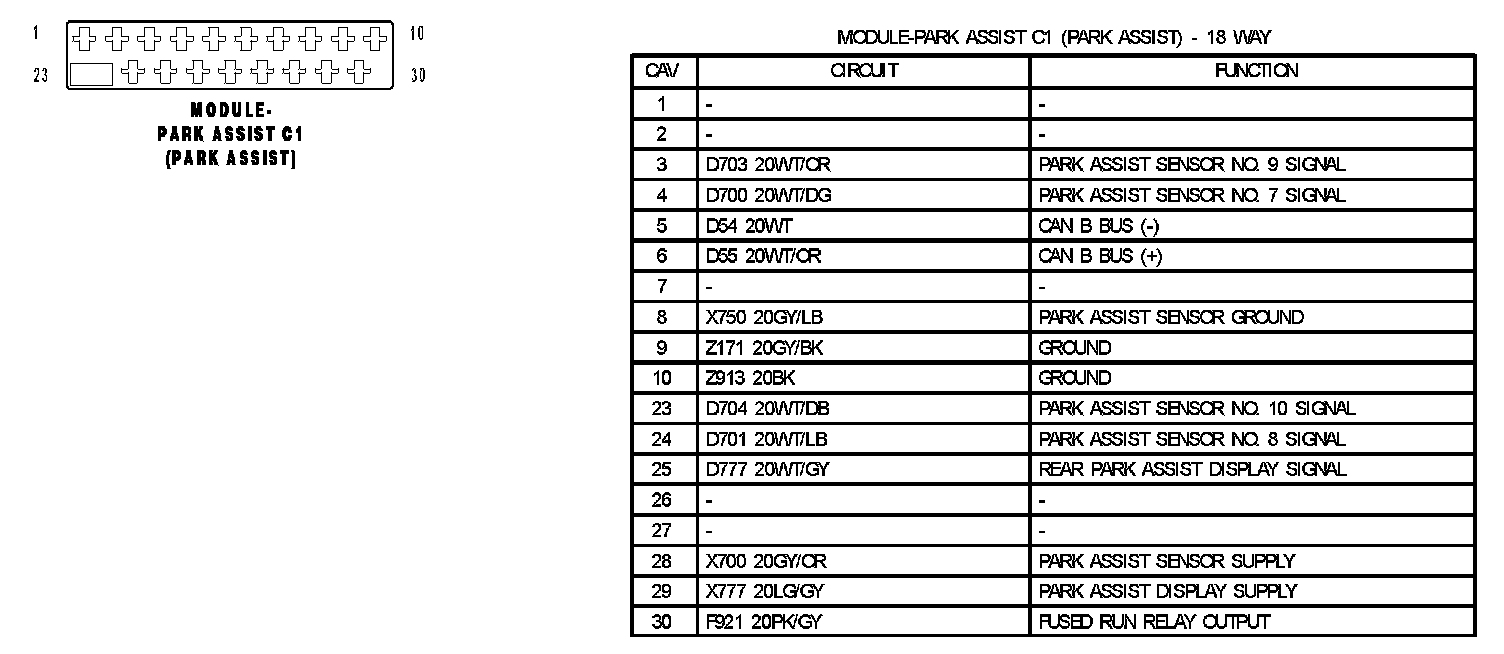

Module park Assist C1 (park Assist):

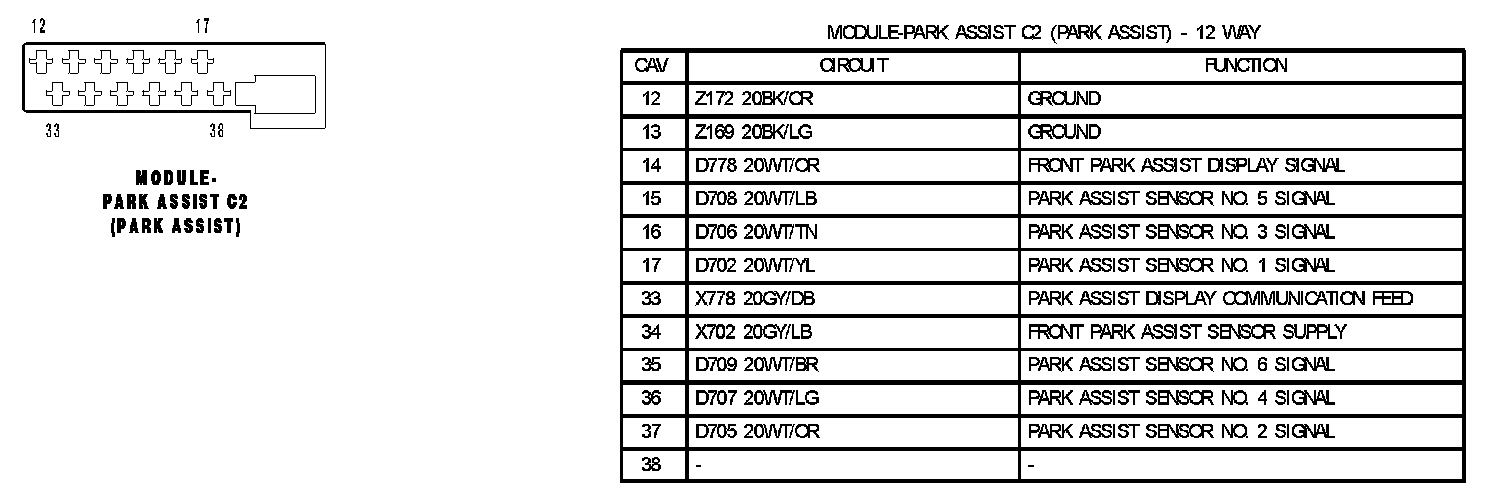

Module park Assist C2 (park Assist):

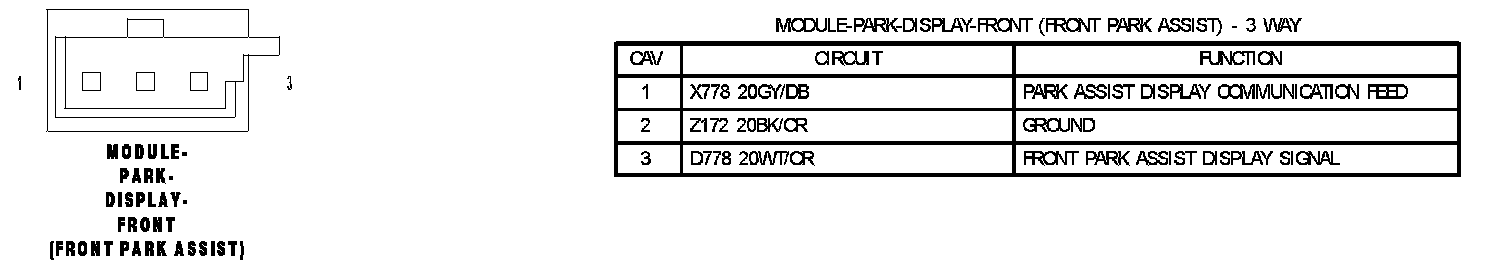

Module Park Display Front (front Park Assist):

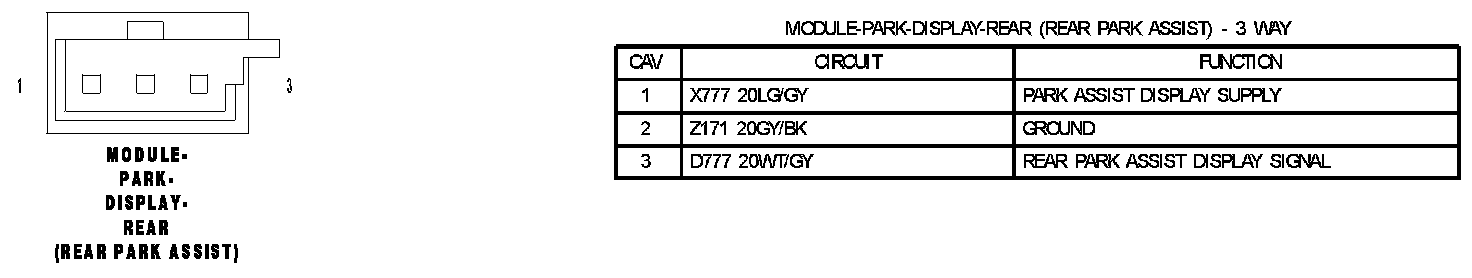

Module Park Display Rear (Rear Park Assist):
