Seat Temperature Element
Seat Temperature Element

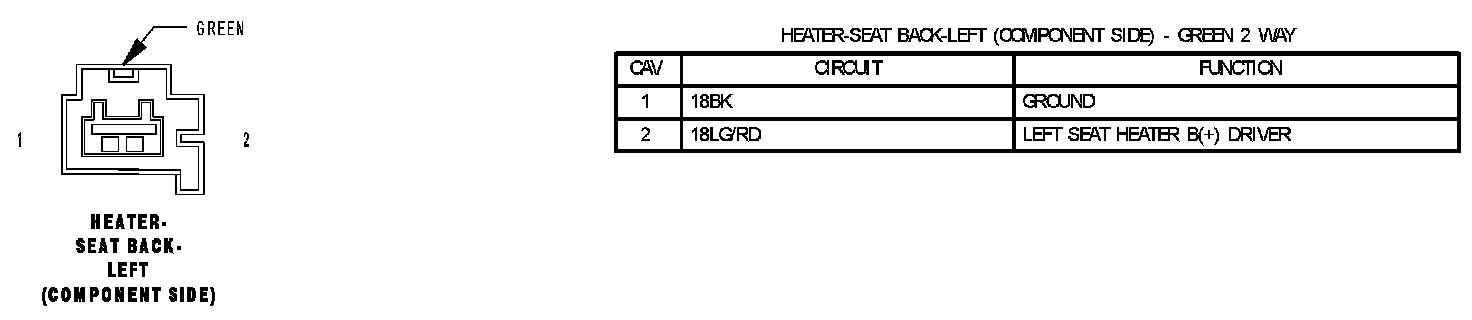

Heater Seat Back Left (component Side):

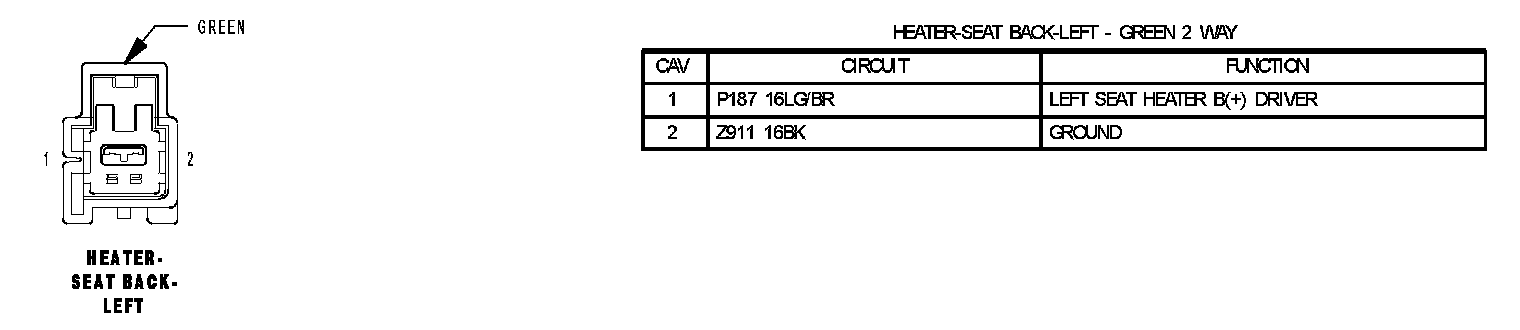

Heater Seat Back Left:
Heater Seat Back Right (component Side):

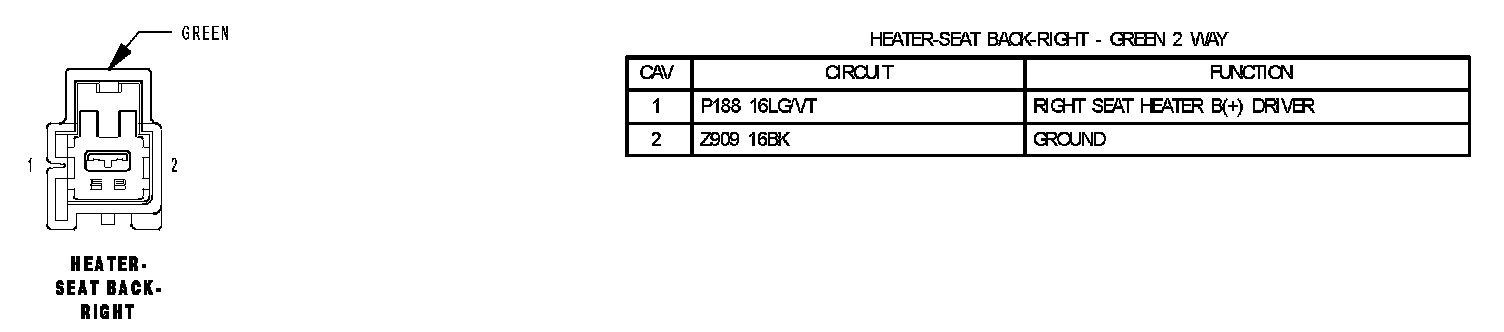

Heater Seat Back Right:
