Wheel Speed Sensor

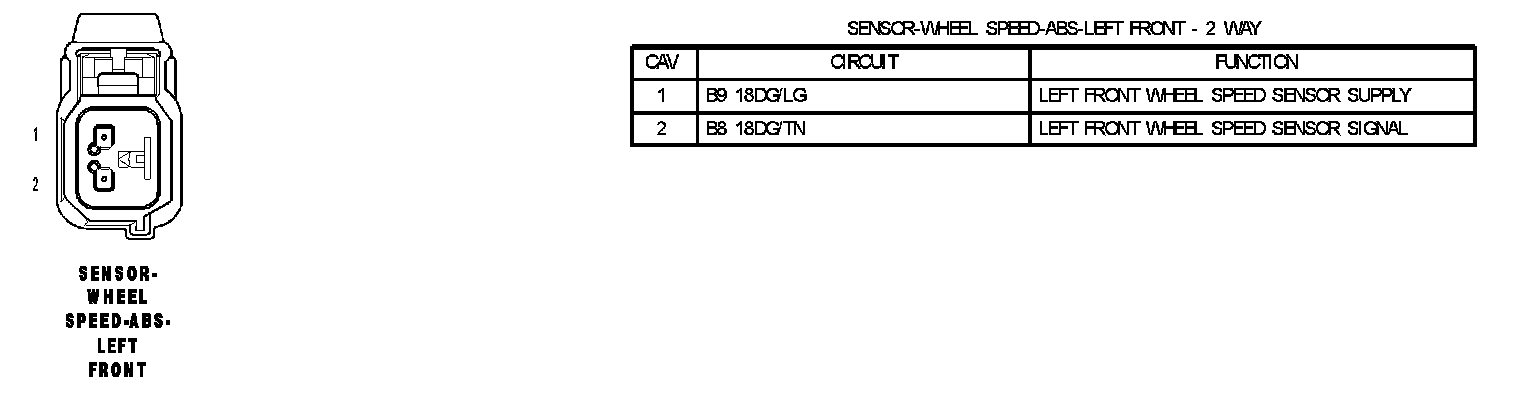

Sensor Wheel Speed Abs Left Front:

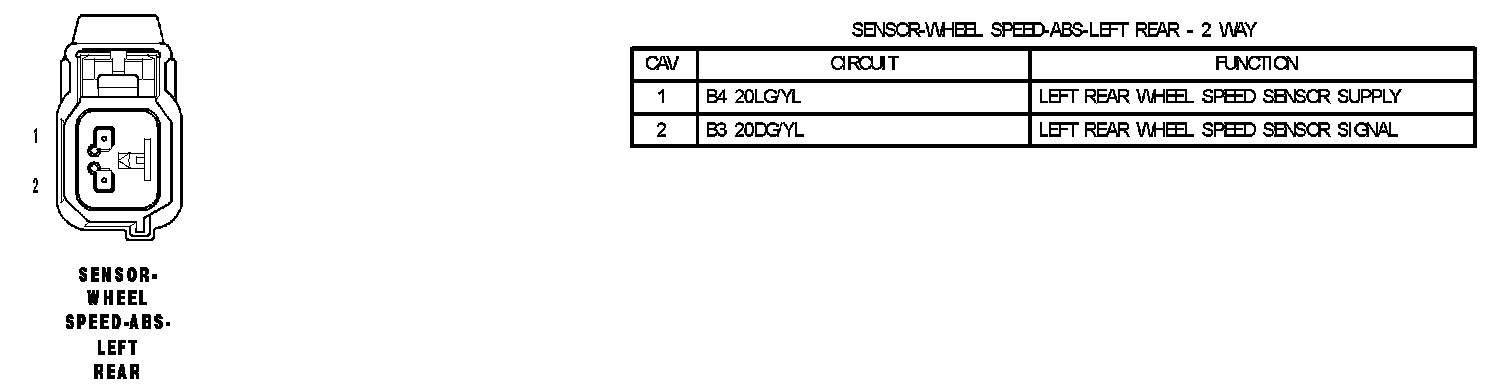

Sensor Wheel Speed Abs Left Rear:

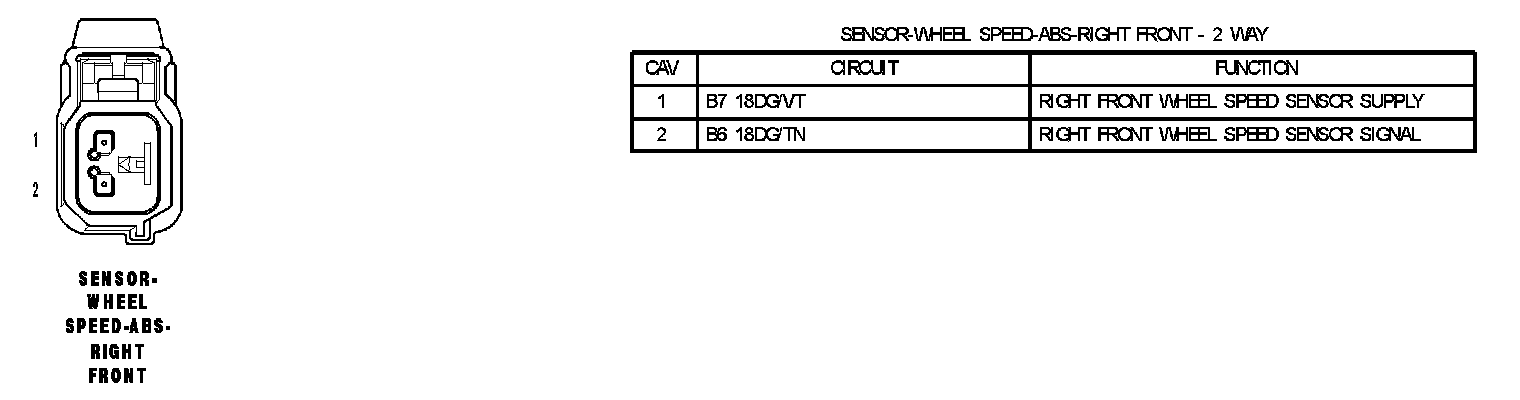

Sensor Wheel Speed Abs Right Front:

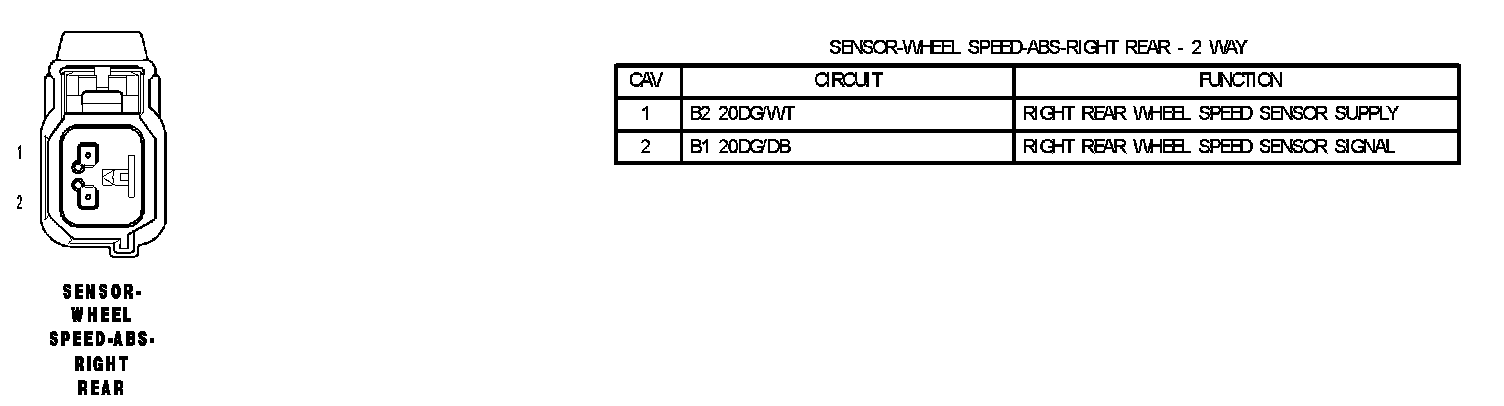

Sensor Wheel Speed ABS Right Rear:
