Timing Component Alignment Marks: Locations

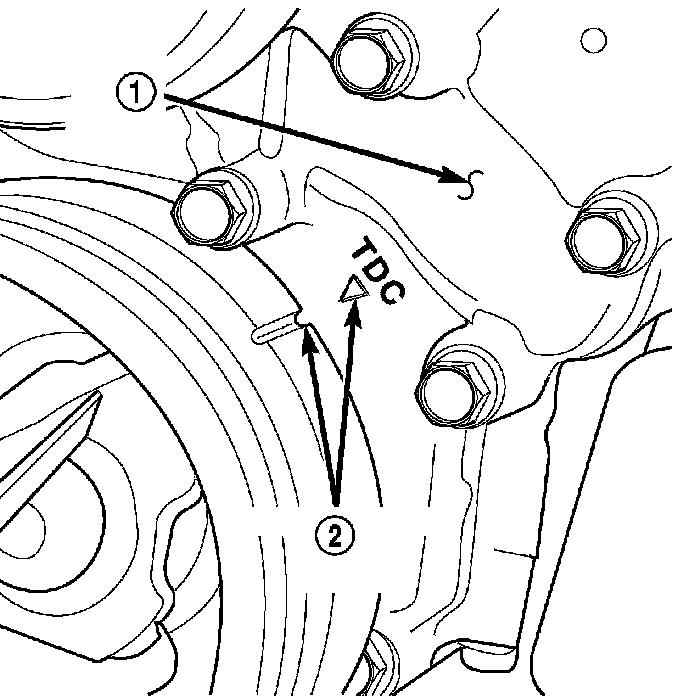

Timing mark (2) on crankshaft damper aligns with TDC mark on timing chain cover (1).

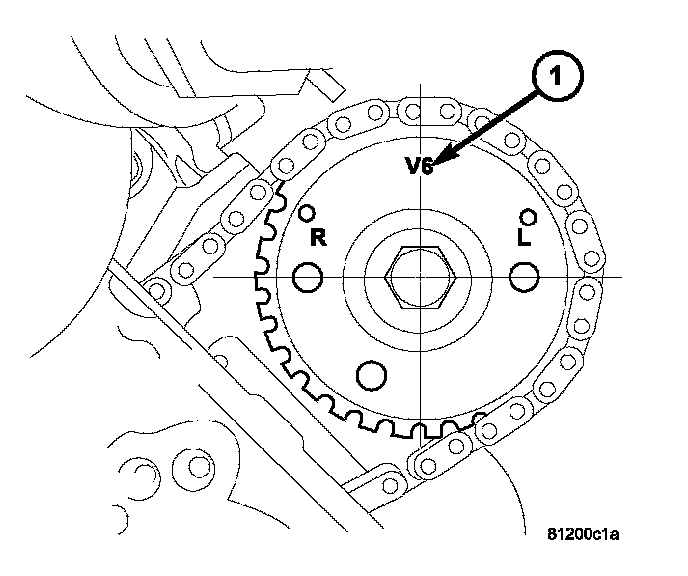

Camshaft sprocket "V6" marks (1) are at the 12 o'clock position (No. 1 TDC exhaust stroke).
