Oxygen Sensor: Diagrams

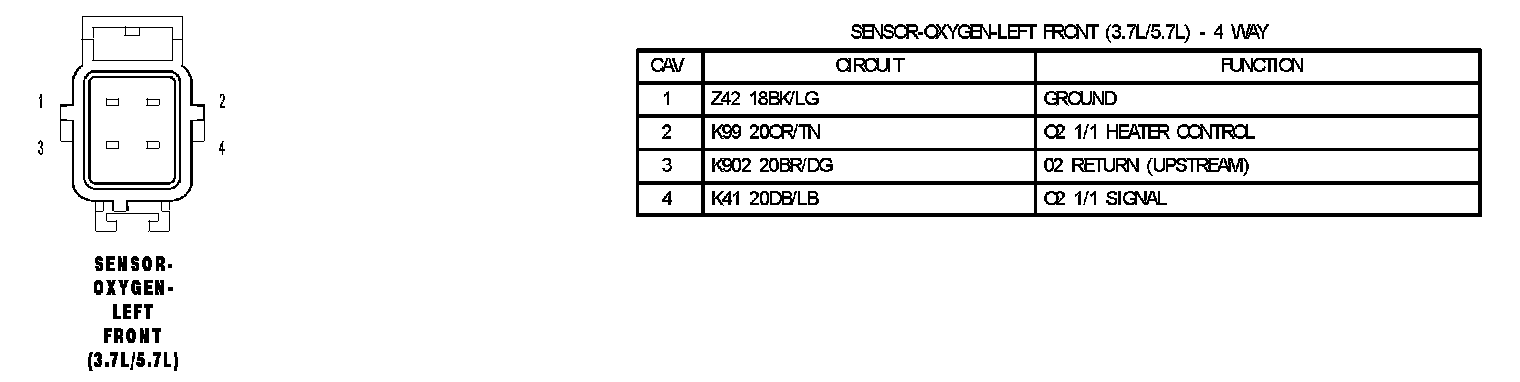

Sensor Oxyen Left Front (3.7L/5.7L):

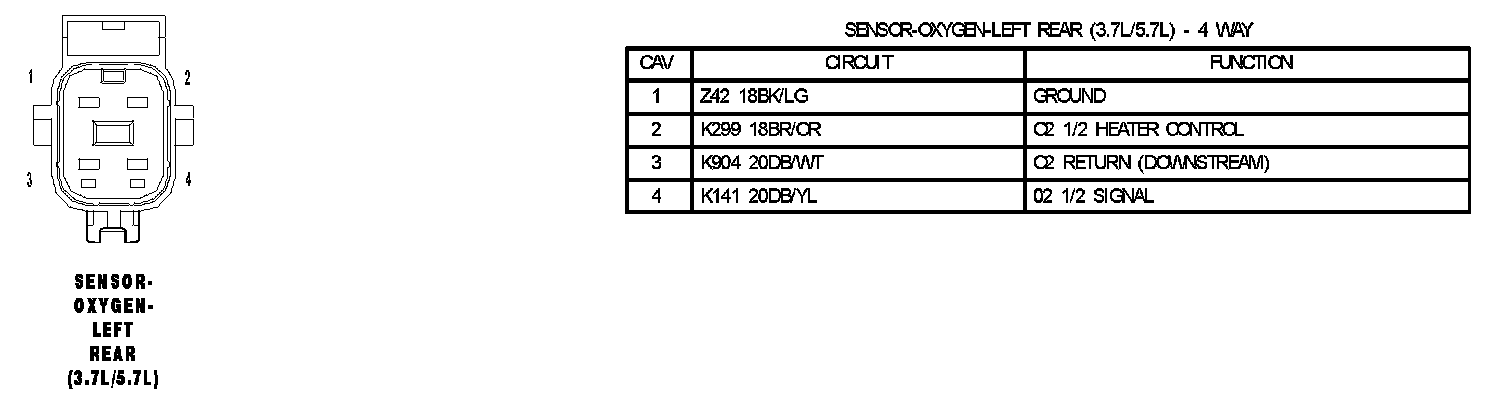

Sensor Oxyen Left Rear (3.7L/5.7L):

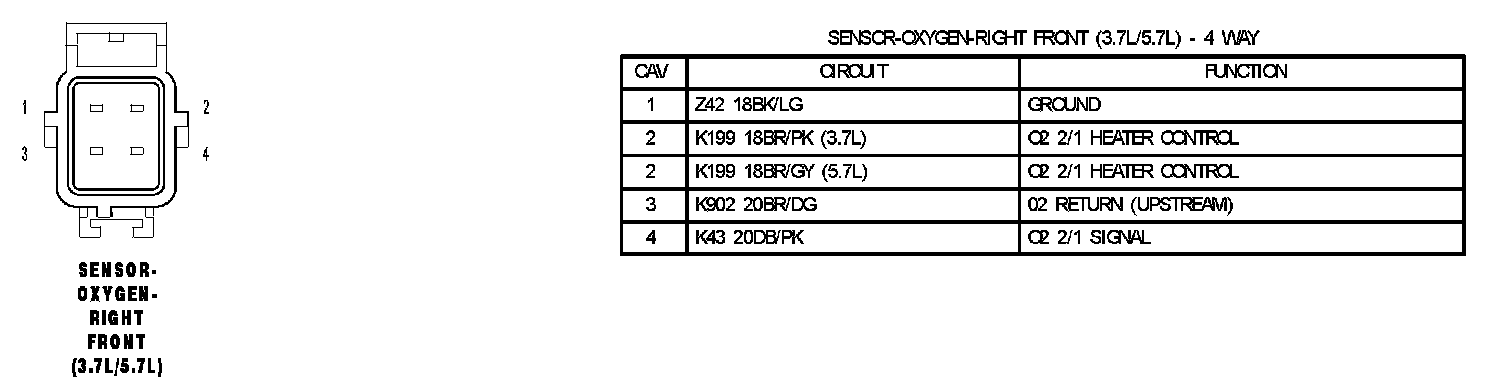

Sensor Oxyen Right Front (3.7L/5.7L):

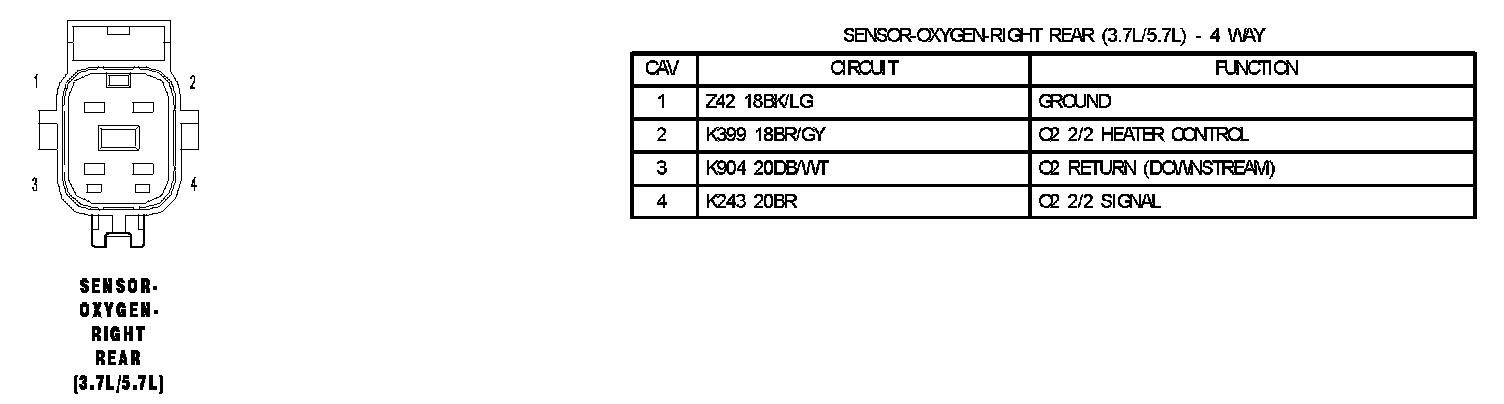

Sensor Oxyen Right Rear (3.7L/5.7L):
