Power Distribution Module: Diagrams

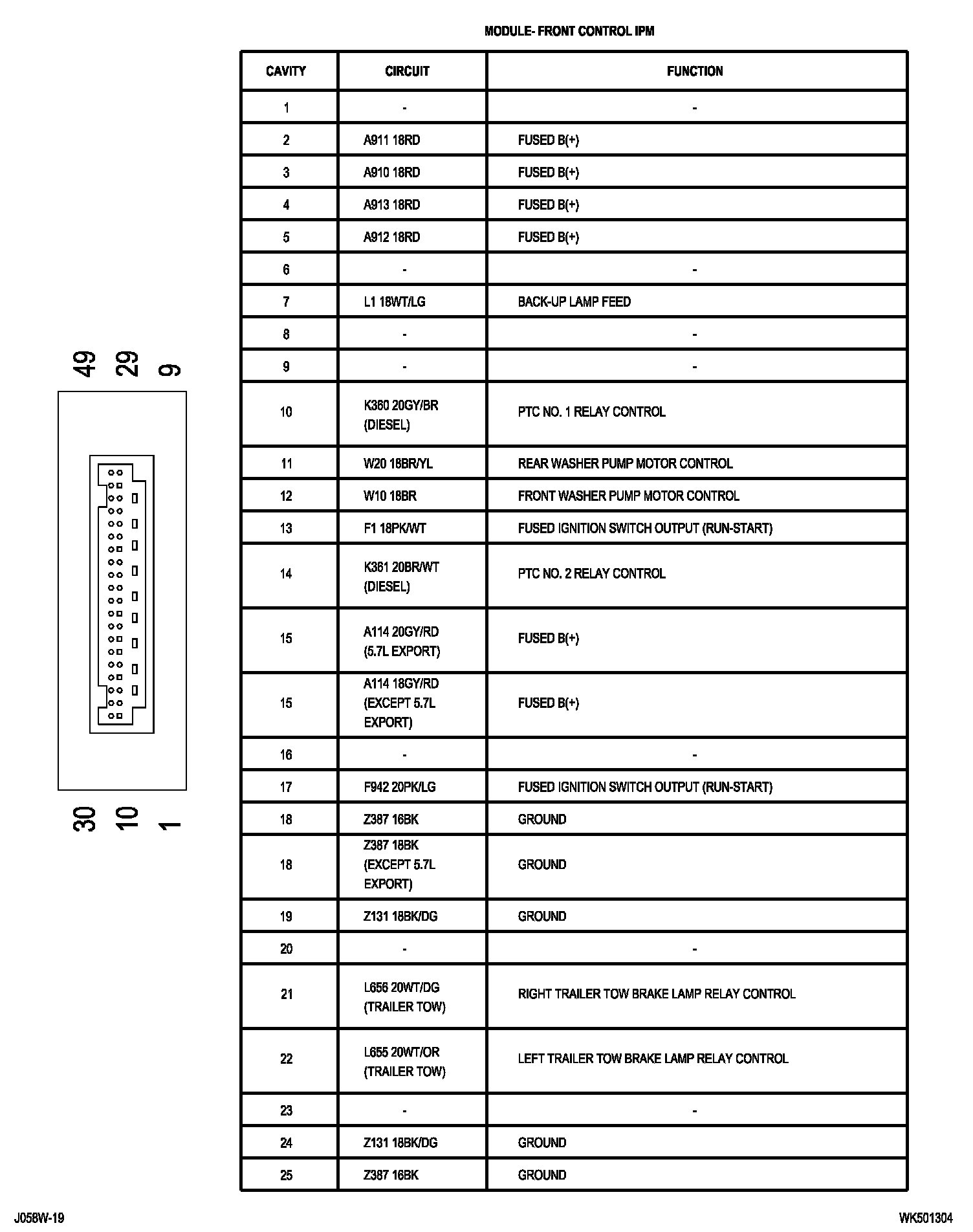

Module Front Control IPM Part 1:

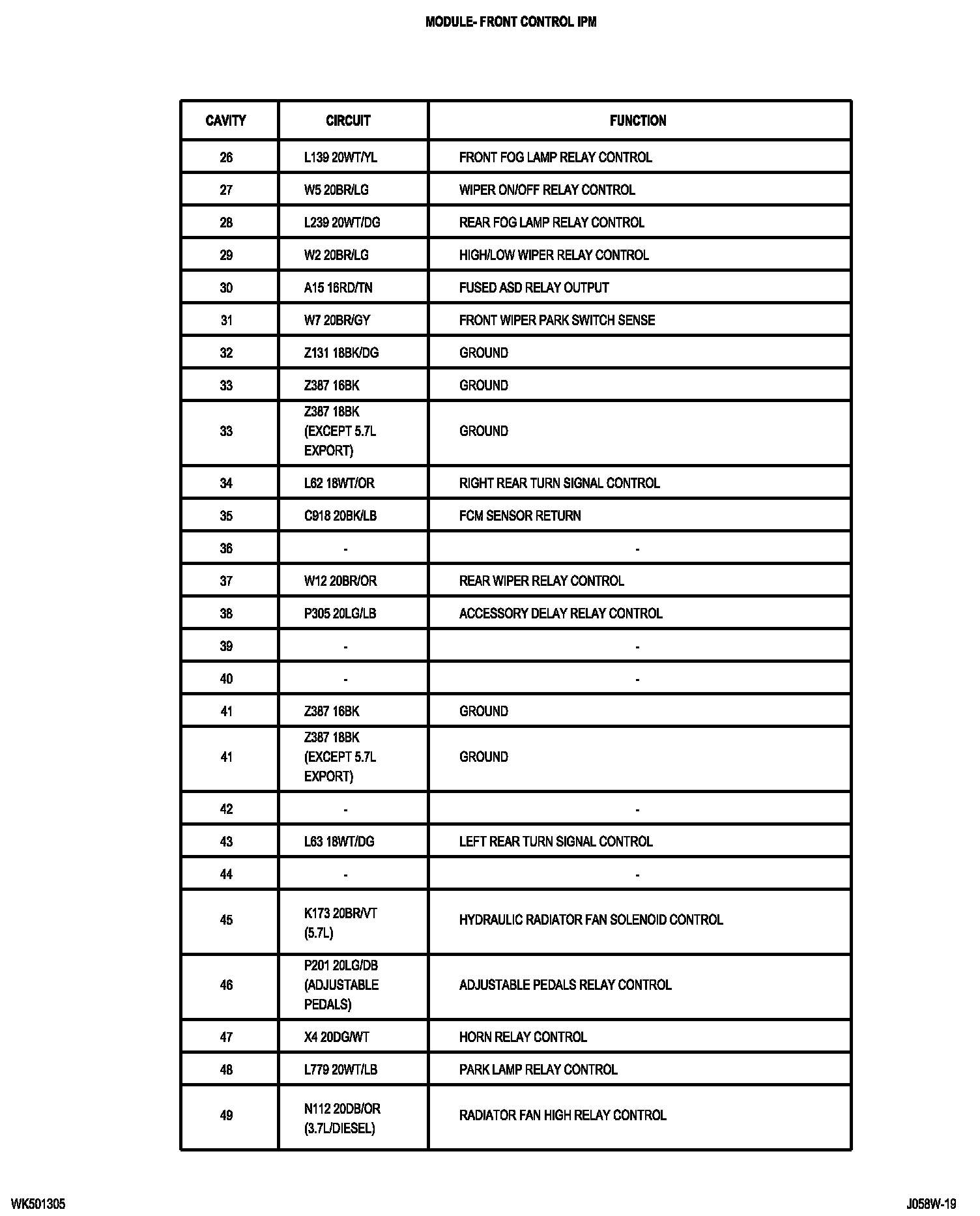

Module Front Control IPM Part 2:

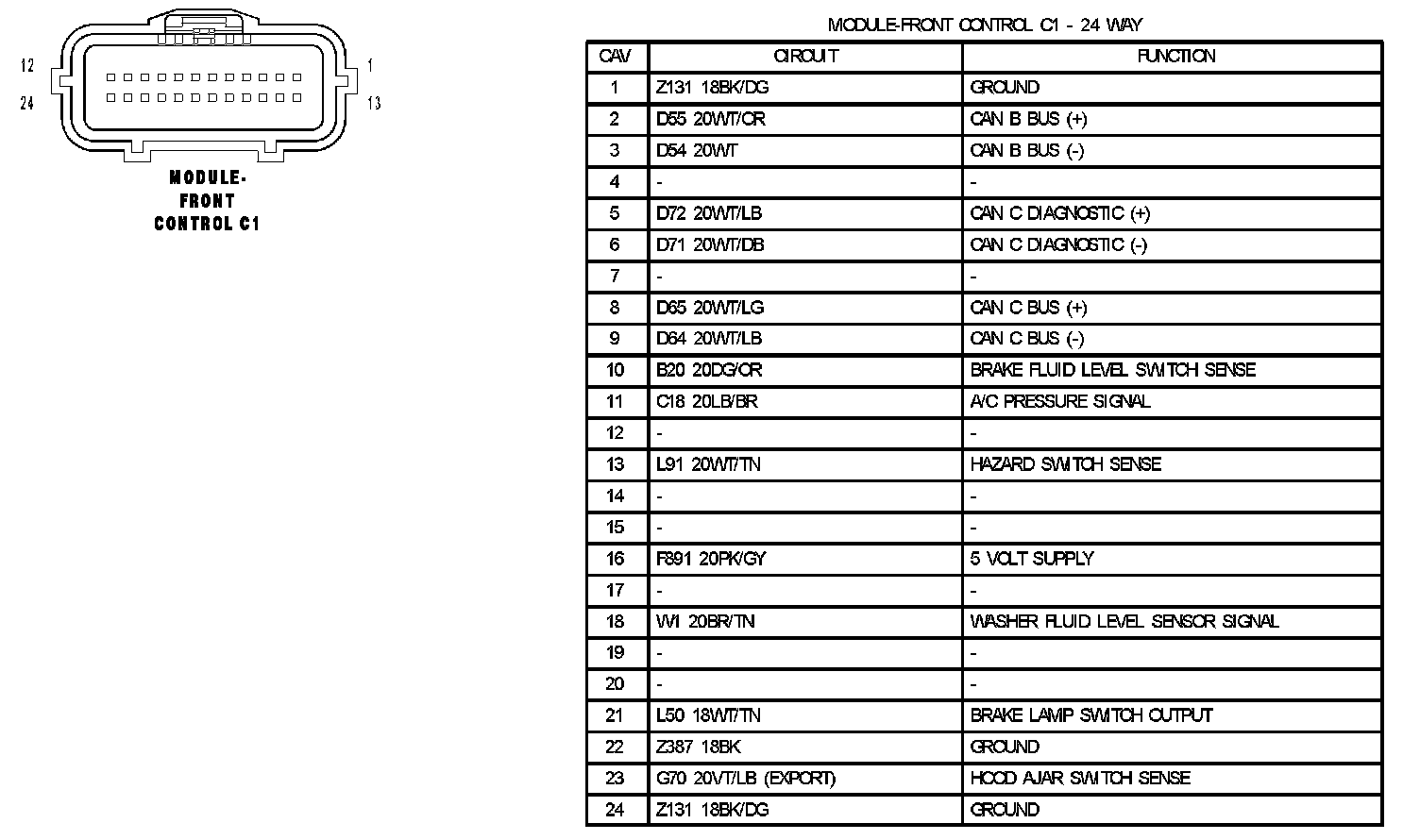

Module Front Control C1:

Module Front Control C2:

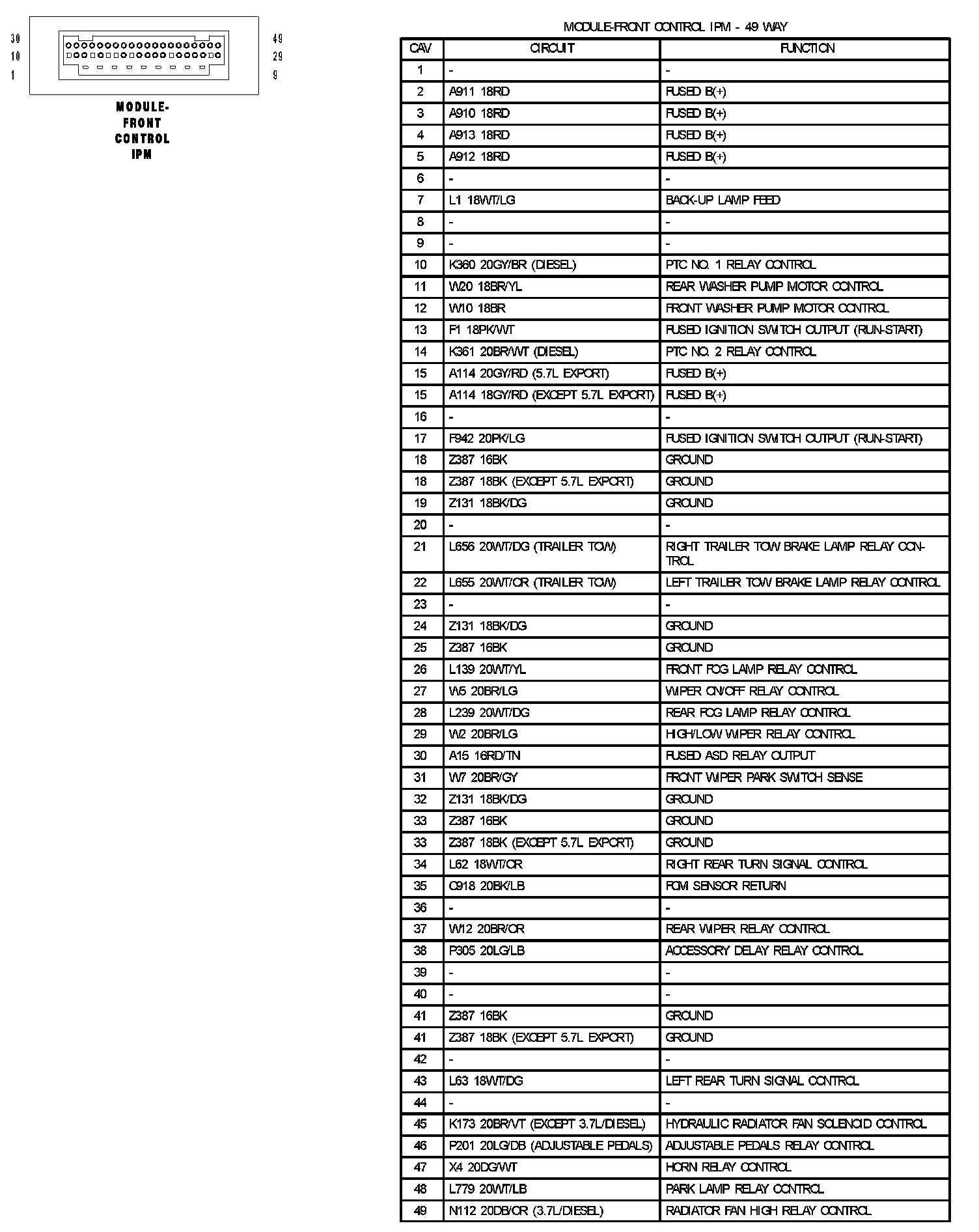

Module Front Control IPM:

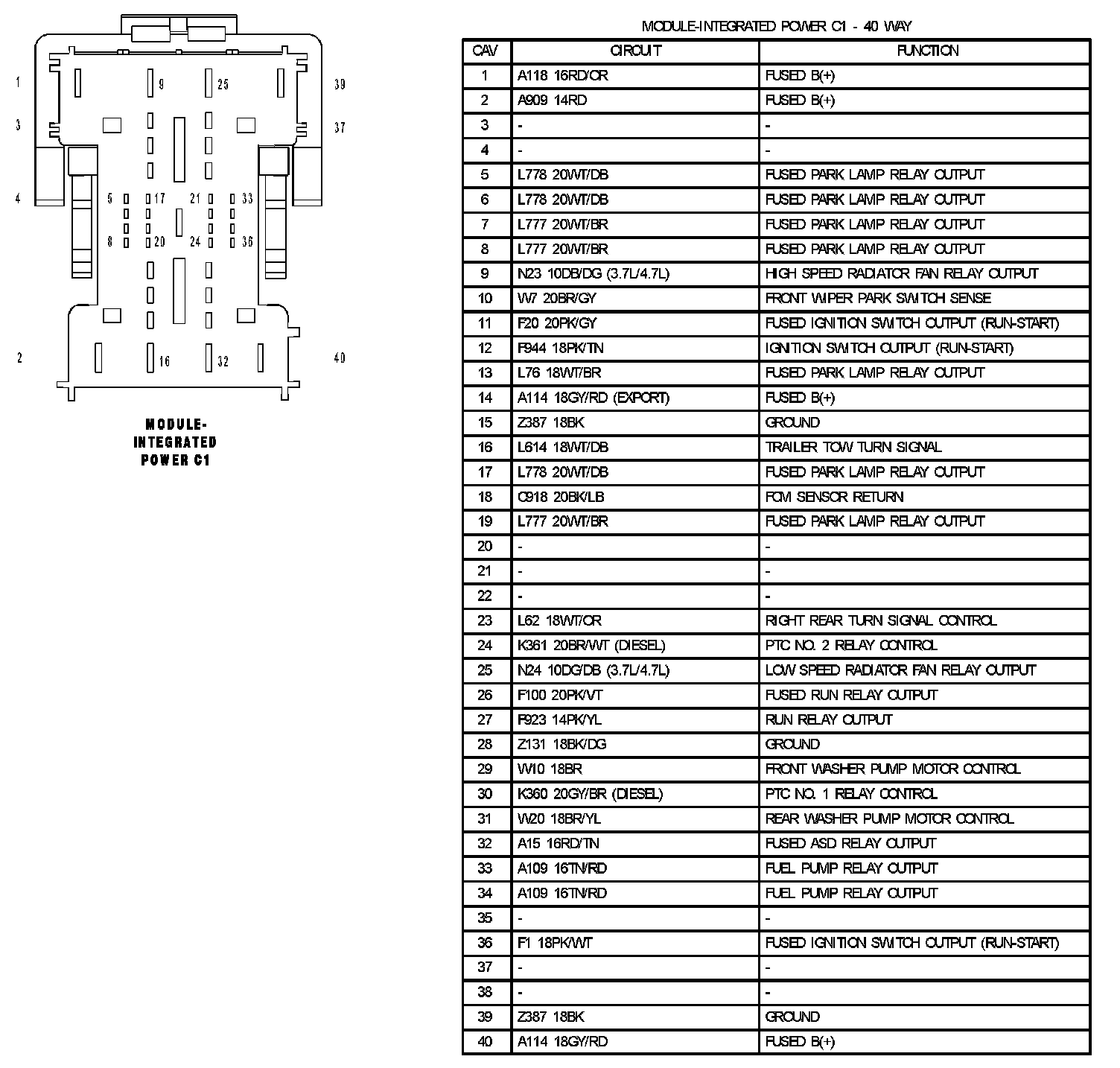

Module Integrated Power C1:

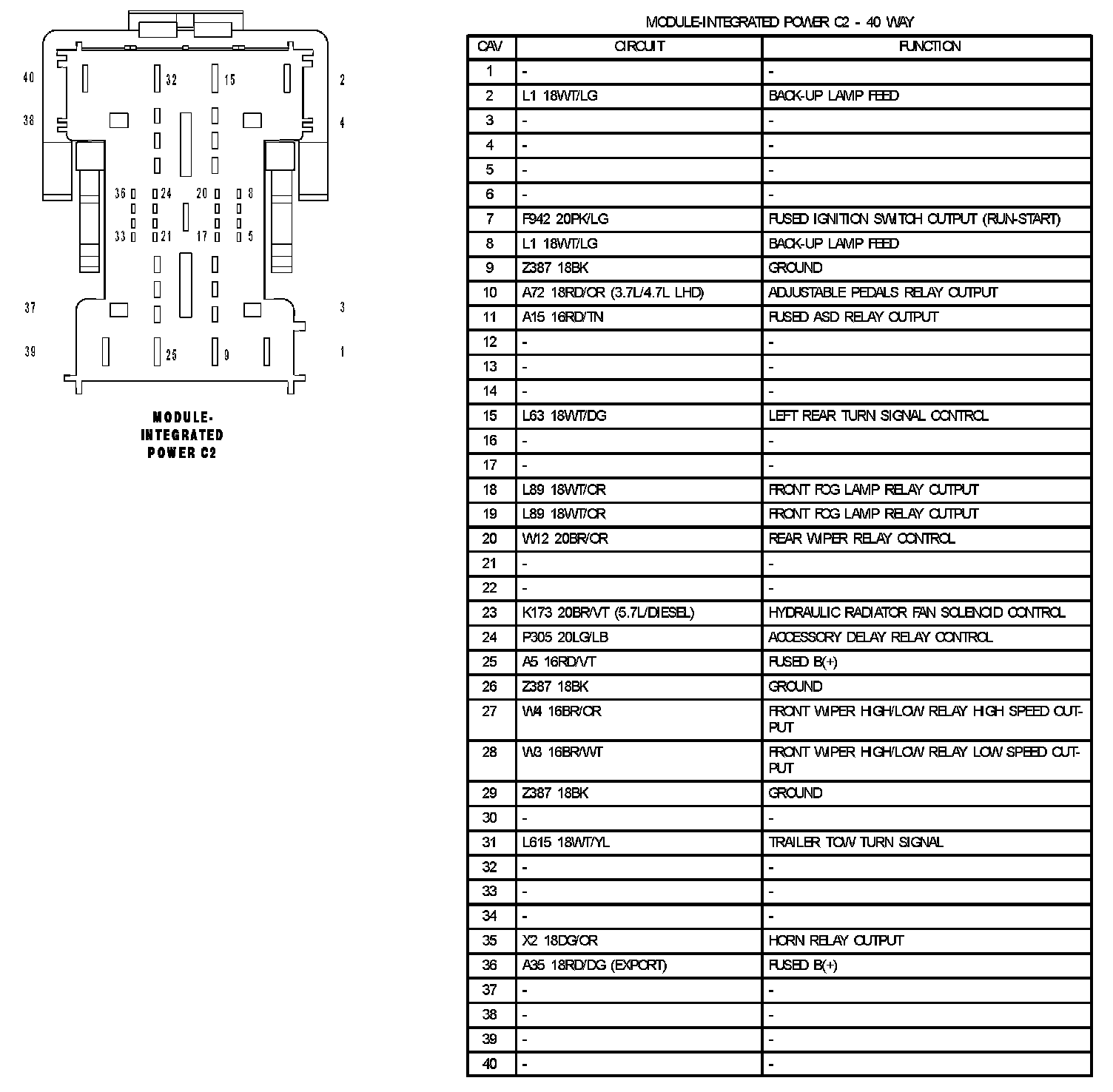

Module Integrated Power C2:

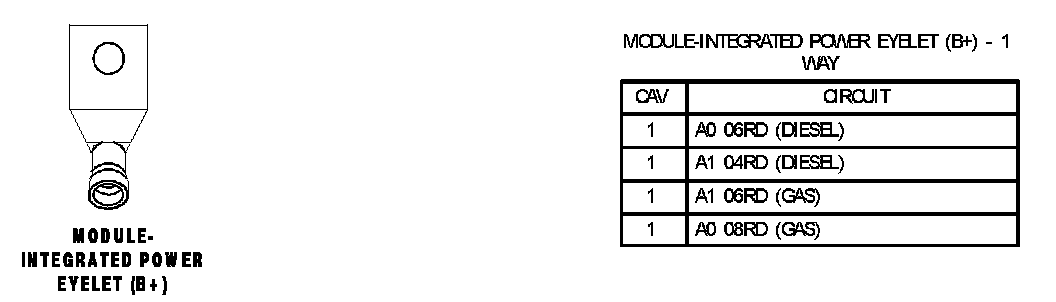

Module Integrated Power Eyelet (B+):

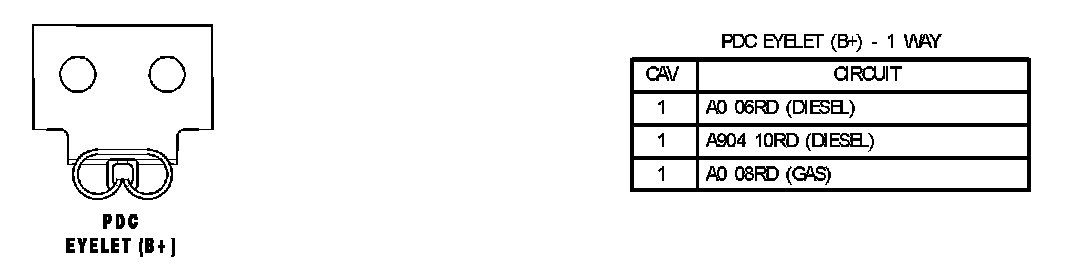

PDC Eyelet (B+):
