NAG1 Automatic Transmission
NAG1 Automatic Transmission

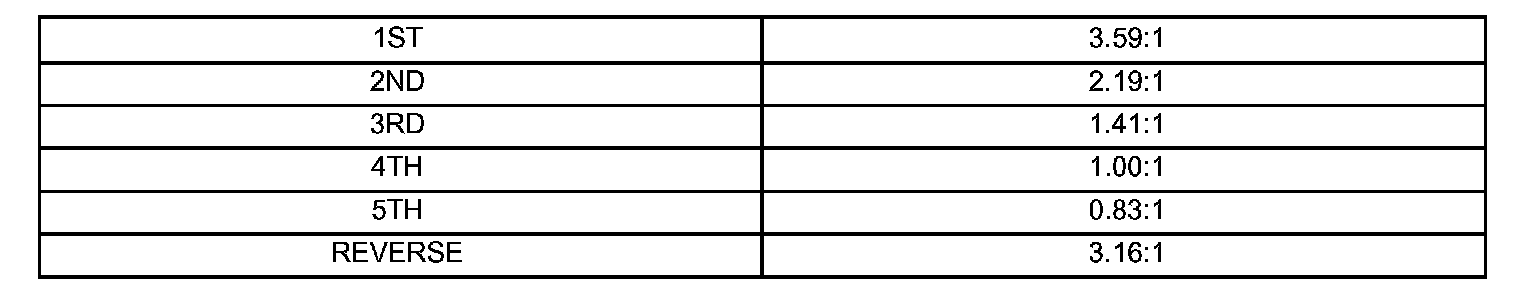

GEAR RATIOS

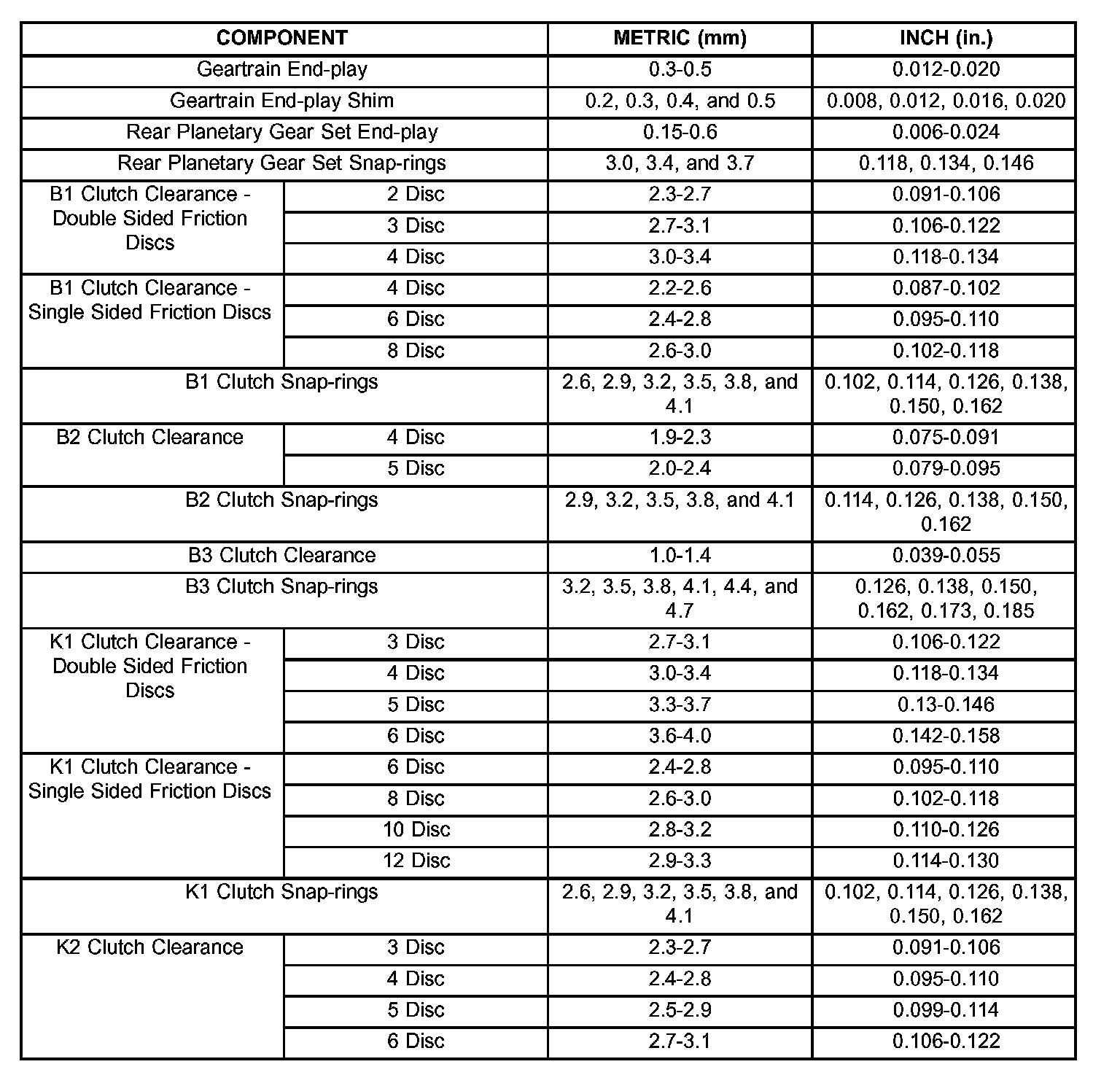

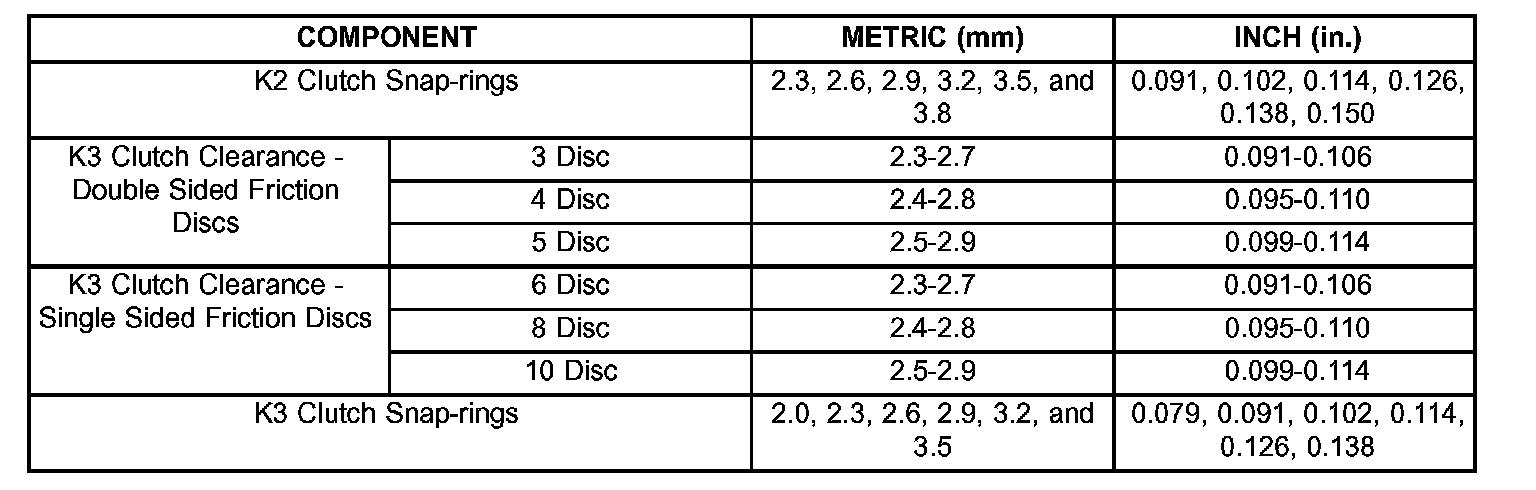

SPECIFICATIONS

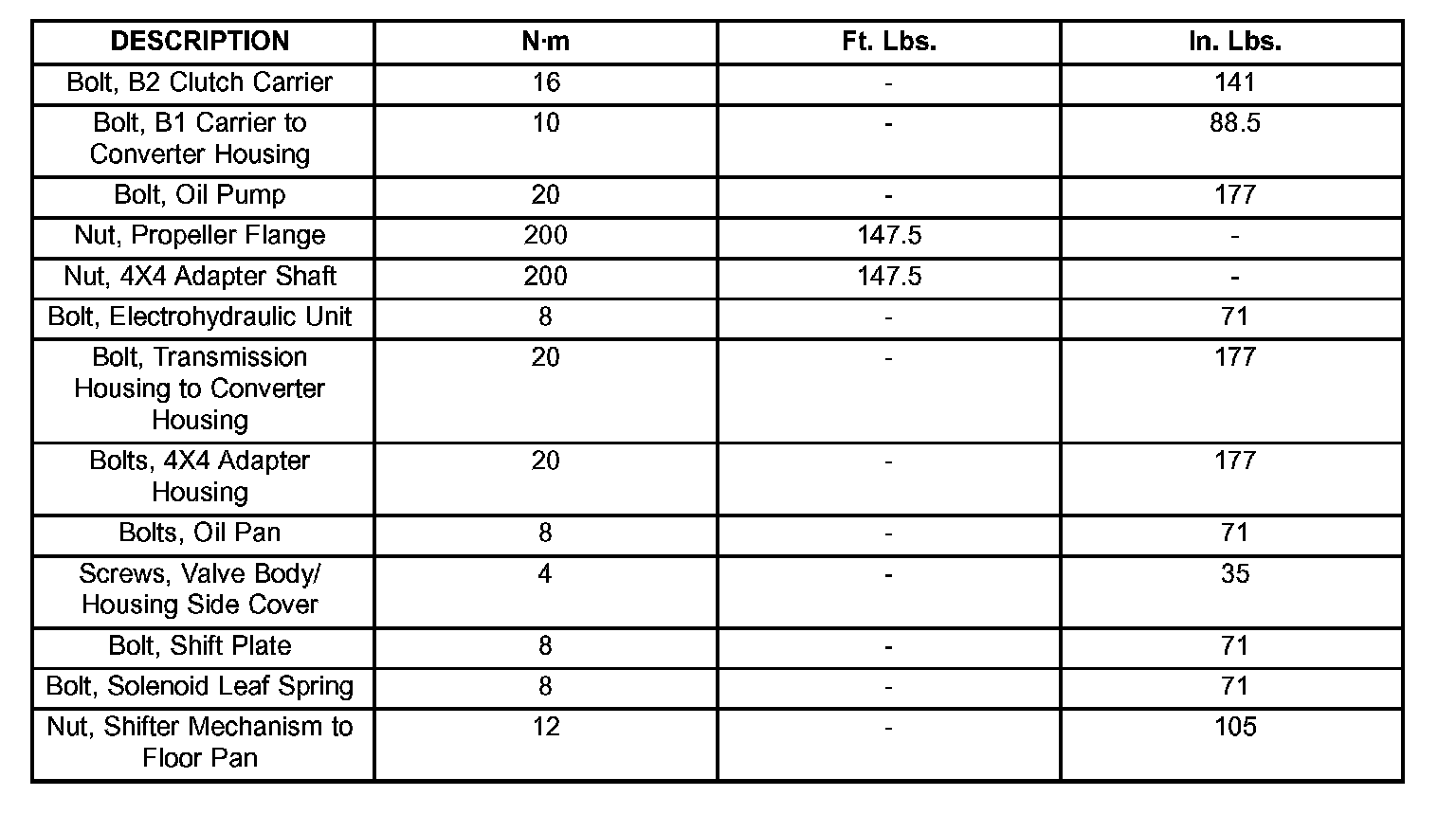

TORQUE SPECIFICATIONS
