Disassembly and Assembly

MODULE-STEERING CONTROL

DISASSEMBLY





1. With the SCM (4) removed, remove the hazard switch by releasing the tangs (2) and sliding the switch (1) out of position.

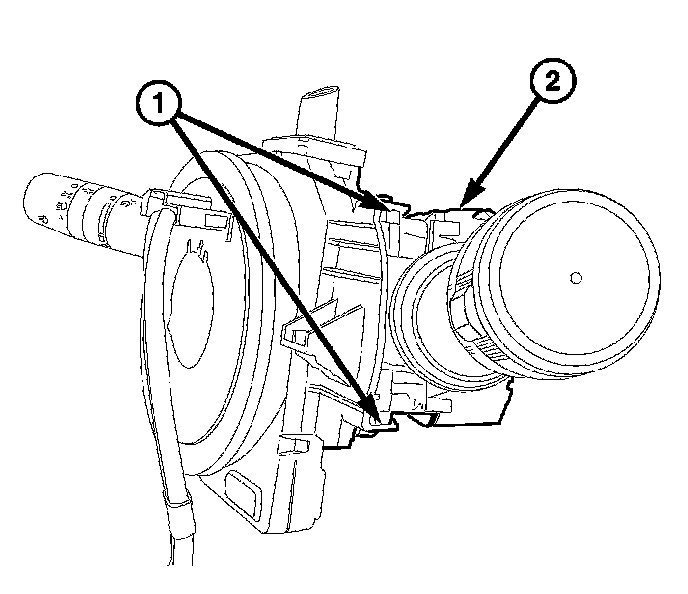

2. Remove the two screws (1) for the right multi-function (wiper/washer) switch (2). The left multi-function (lighting control) switch will be mounted on the left side of the SCM the exact same way. The connectors are integral to the SCM and are self docking.
3. Using a trim stick (special tool #C-4755) or equivalent, gently pry in on the three tabs holding the turn signal cancel cam to the SCM. You must go in through the front of the SCM to release the tabs. Be careful not to break tabs if reusing the cancel cam for they are brittle.

ASSEMBLY





1. Place the turn signal cancel cam into the center of the SCM and firmly snap into place. There is an alignment dowel that will only let you install it one way.

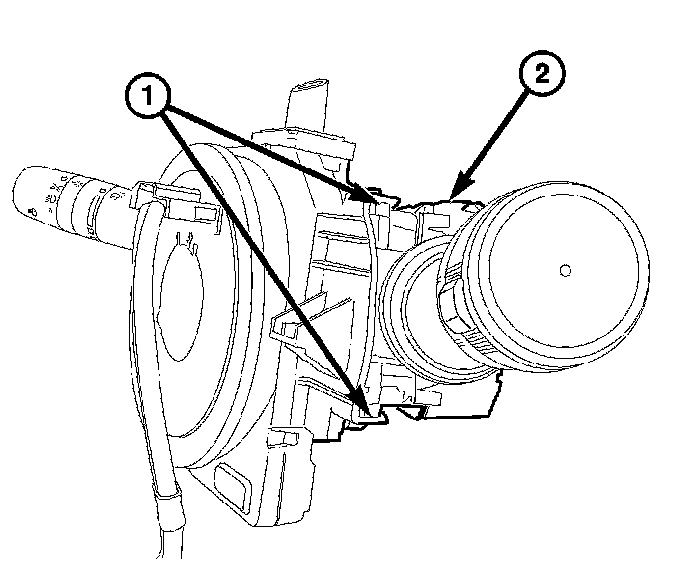

2. Install the right multi-function switch (2) by aligning the self docking connector. Push down firmly to snap switch into place. Install the two screws (1). The left multi-function switch installs the exact same way.





3. Install the hazard switch (1) to the SCM (3) by firmly sliding the switch into position, into the tangs (2).





4. Install the SCM.

NOTE: IF EQUIPPED WITH ESP - recalibrate the steering angle sensor using the scan tool.
