Oxygen Sensor: Diagrams

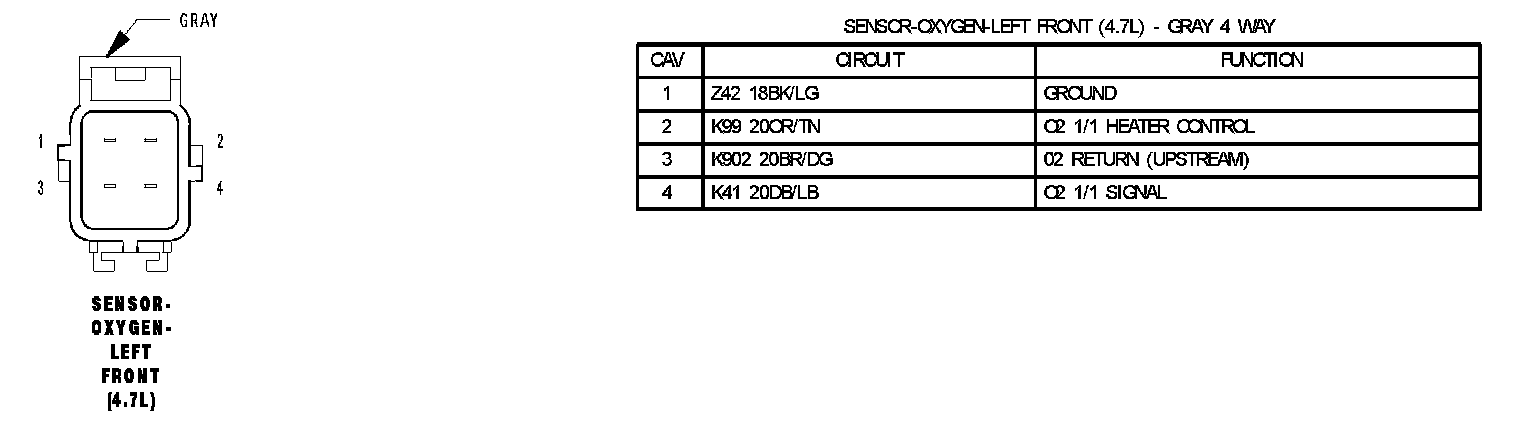

Sensor Oxyen Front (4.7L):

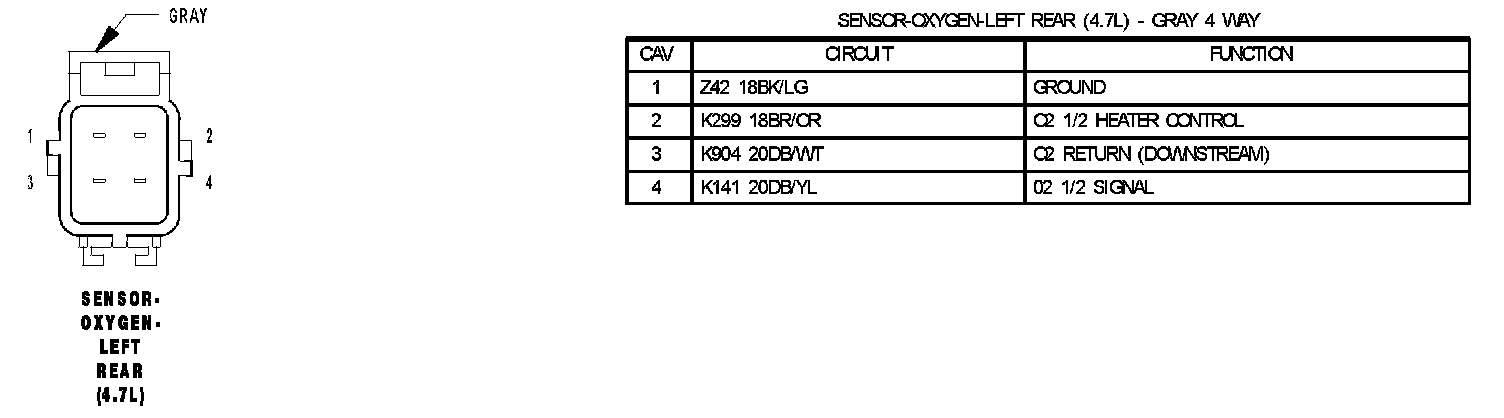

Sensor Oxyen Left Rear (4.7L):

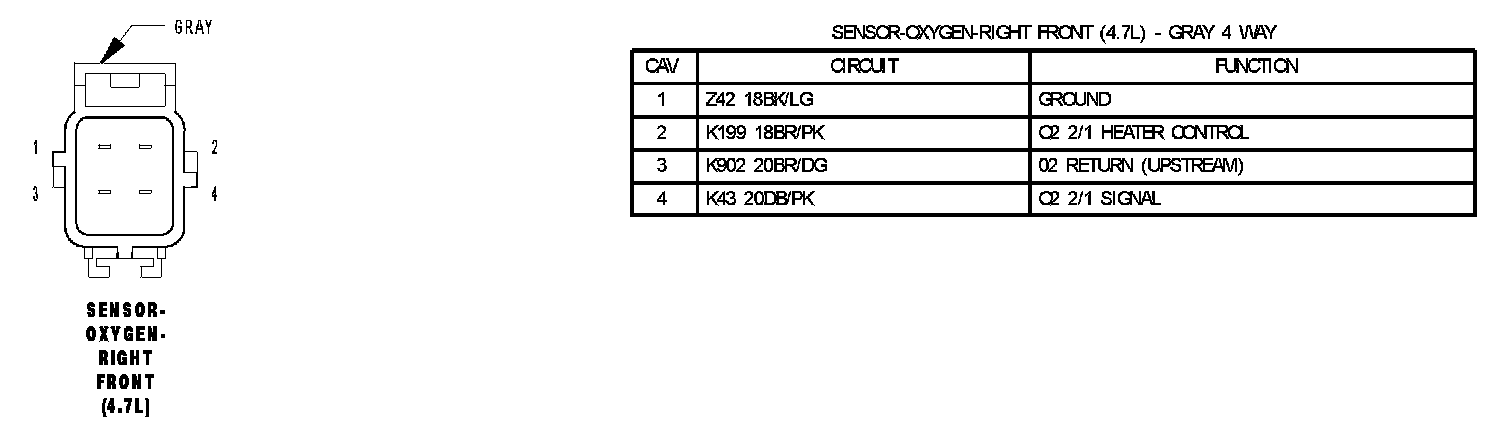

Sensor Oxyen Right Front (4.7L):

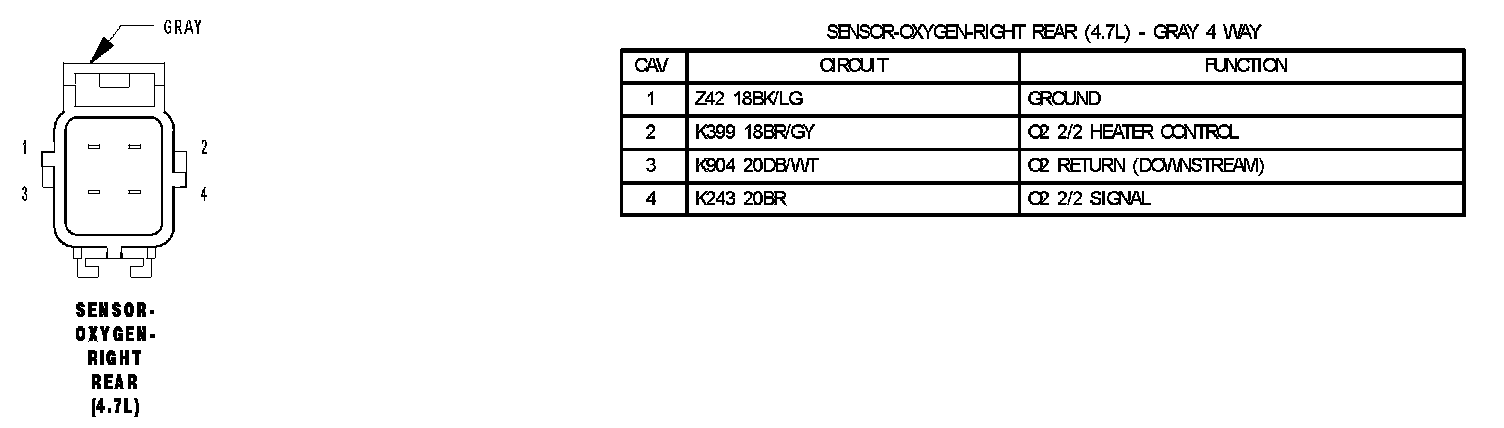

Sensor Oxyen Right Rear (4.7L):
