Traction Control Switch: Service and Repair

REMOVAL




1. Disconnect and isolate the battery negative cable.

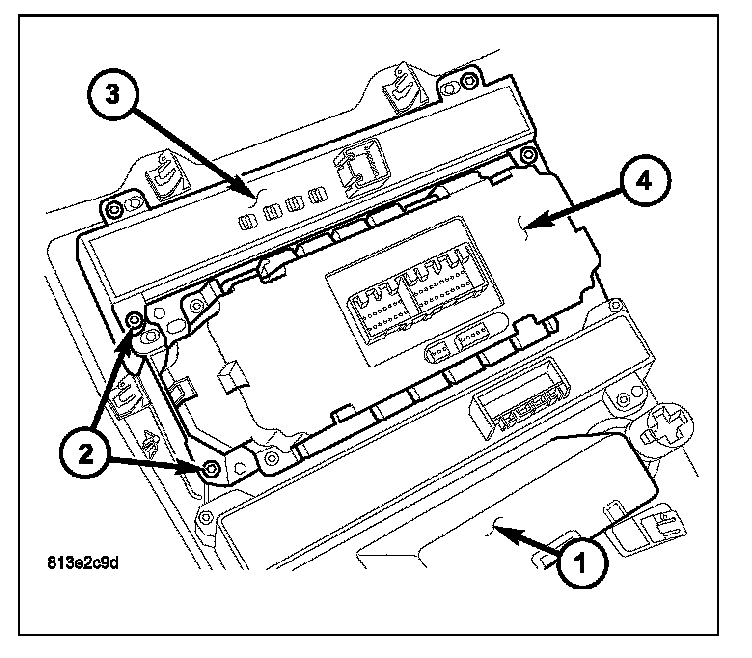

2. Remove the instrument panel center bezel (1).
3. Remove the four lower instrument panel switch pod fasteners from the center bezel (1).

INSTALLATION

NOTE: There are different instrument panel switch pods available based on the option content of the vehicle. Ensure the switch pod being installed matches the vehicle options.




1. Position the lower instrument panel switch pod into the instrument panel center bezel (1).
2. Install the lower instrument panel switch pod fasteners.
3. Install the instrument panel center bezel (1).
4. Connect the battery negative cable.
