Home >> Jeep >> 2005 >> Grand Cherokee 2WD V8-5.7L VIN 2 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Antitheft and Alarm Systems >> Alarm System Transponder >> Receiver-Intrusion Translator (VTSS)

Receiver-Intrusion Translator (VTSS)

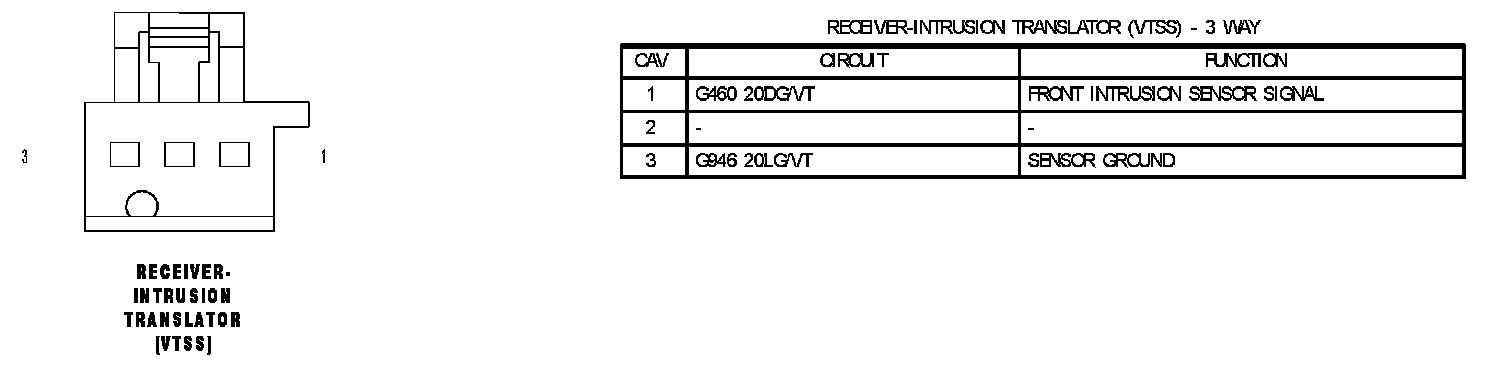

Receiver Intrusion Translator (VTSS):
