Home
>>
Jeep
>>
2005
>>
Grand Cherokee 2WD V8-5.7L VIN 2
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
EGR Valve
EGR Valve

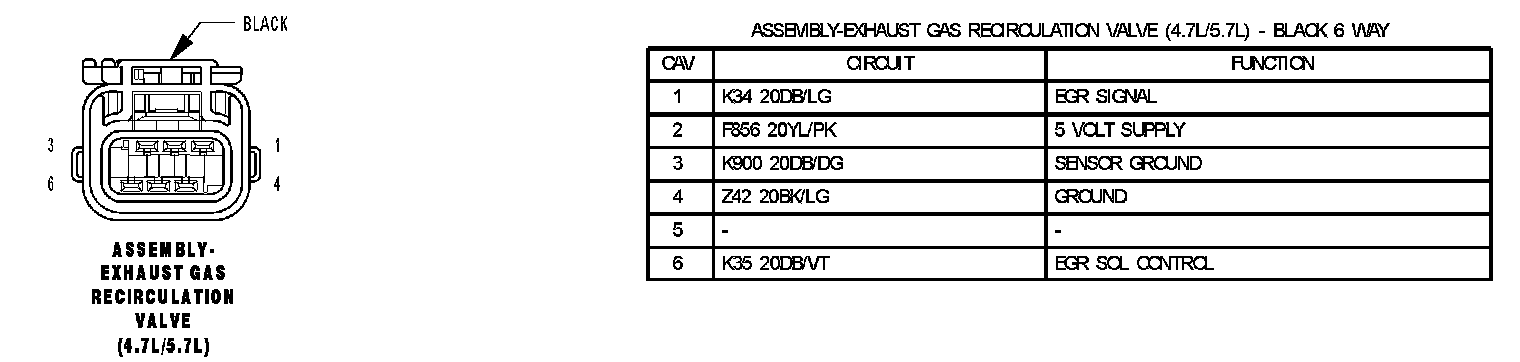

Assembly Exaust Gas Recirculation Valve (4.7L/5.7L):
