Connector Views
>>
Mirrors
>>
System Diagram
System Diagram

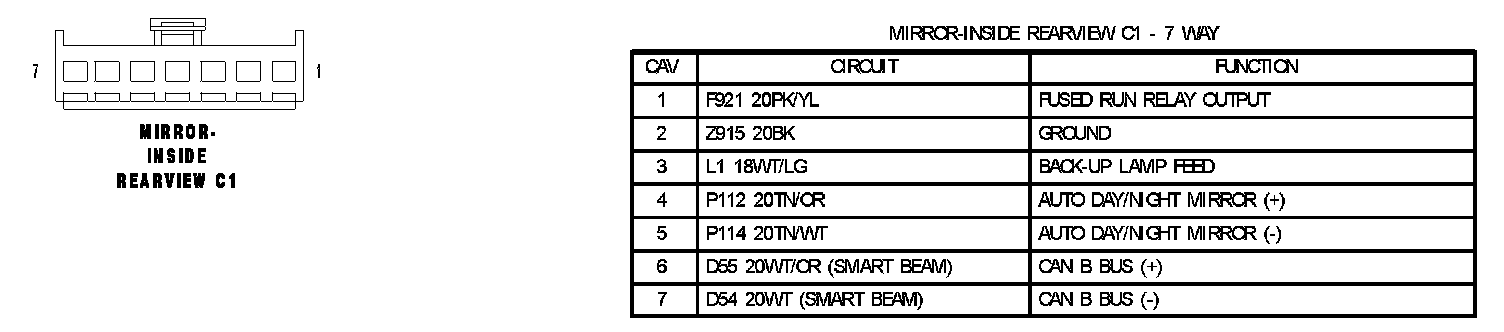

Mirror Inside Rear View C1:
Mirror Inside Rearview C2 (Hands Free):

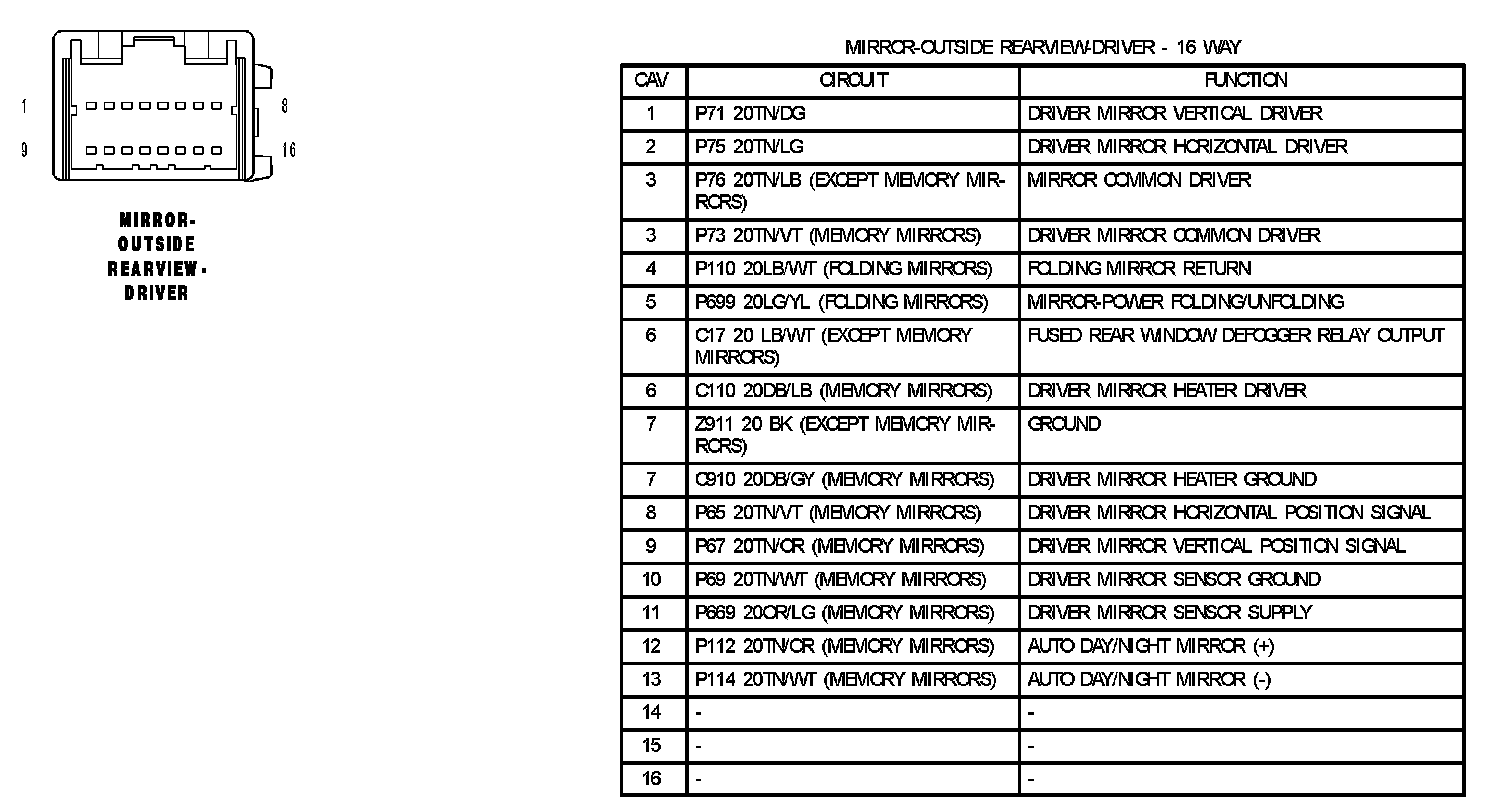

Mirror Outside Rear View Driver:

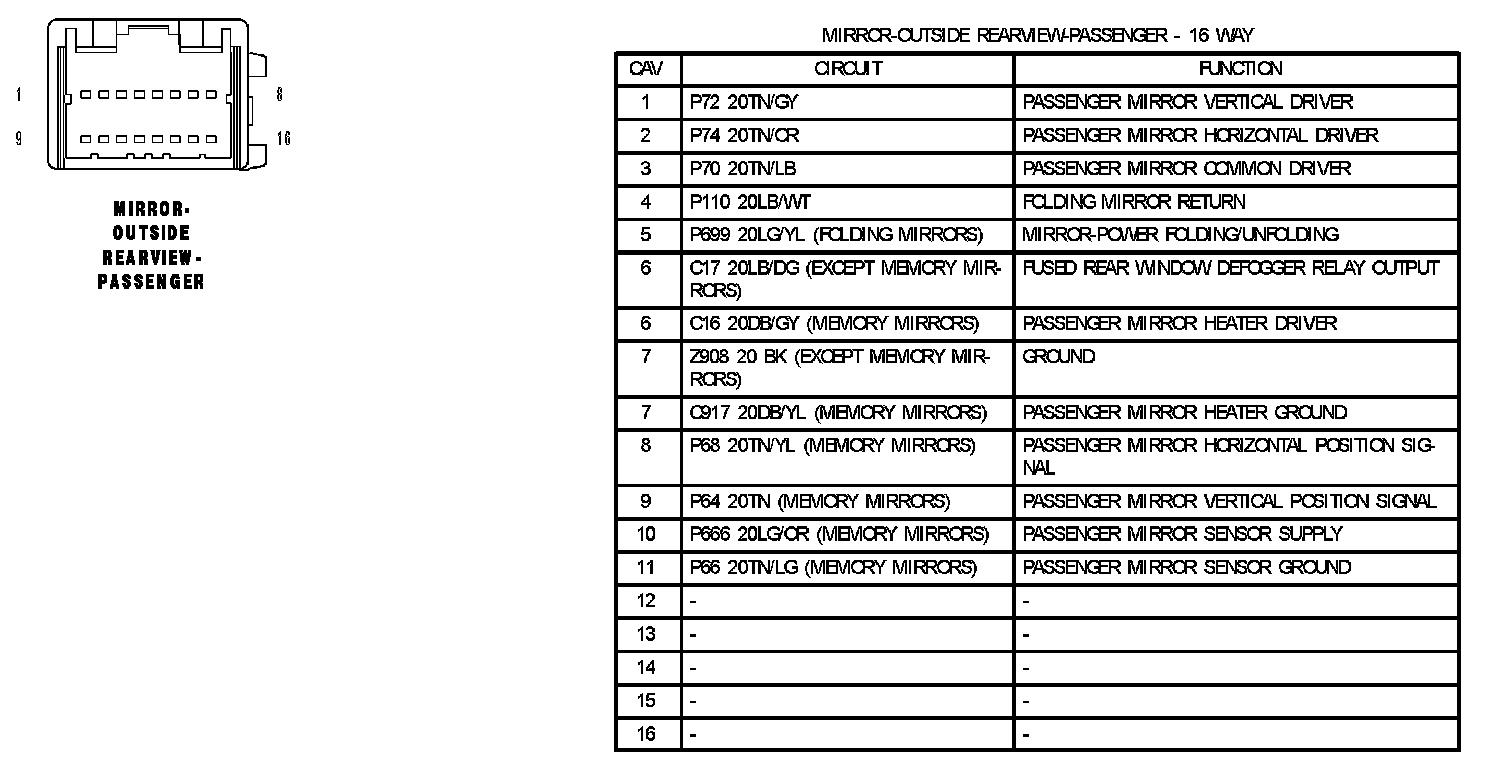

Mirror Outside Rear View Passenger:
