Power Door Lock Switch: Testing and Inspection
1.
Remove the switch to be tested.
Door Lock/Unlock Switch:

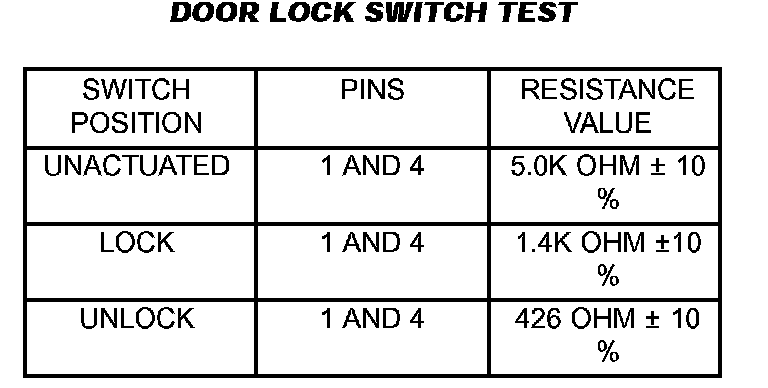

Door Lock Switch Test:
2.
Using an ohmmeter, Test switch for resistance values.
3.
If test results are not obtained as shown in the test table, replace the switch.
