Air Bag
Air Bag

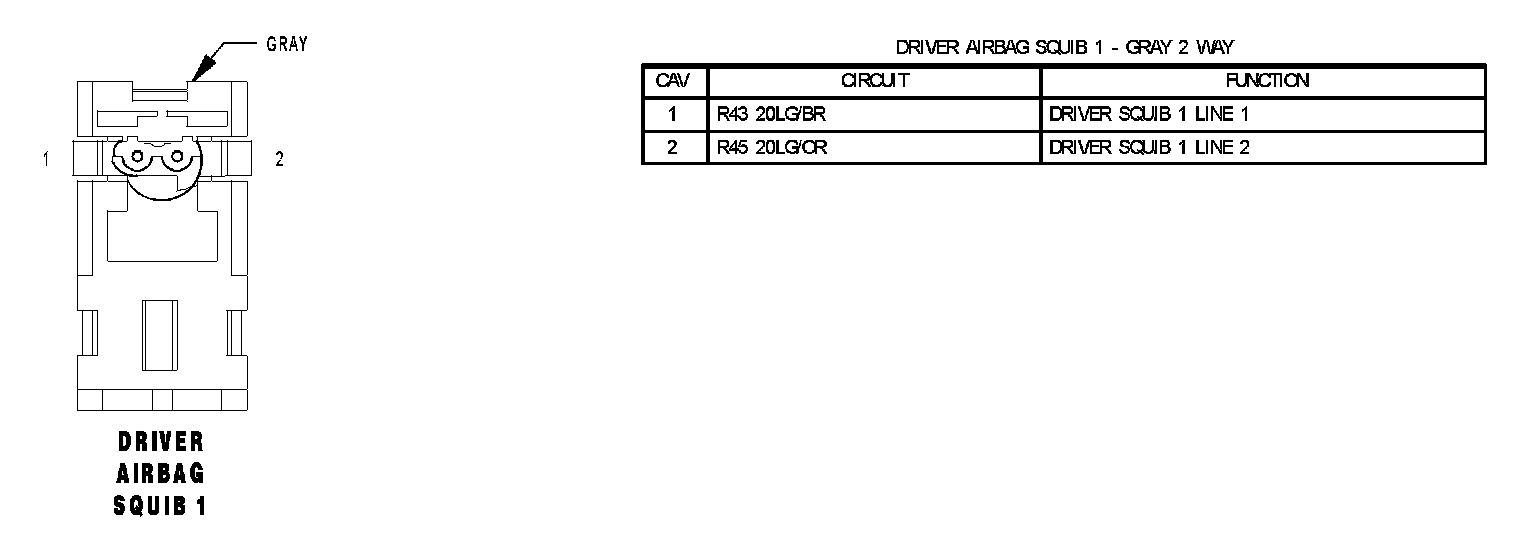

Driver Airbag Squib 1:

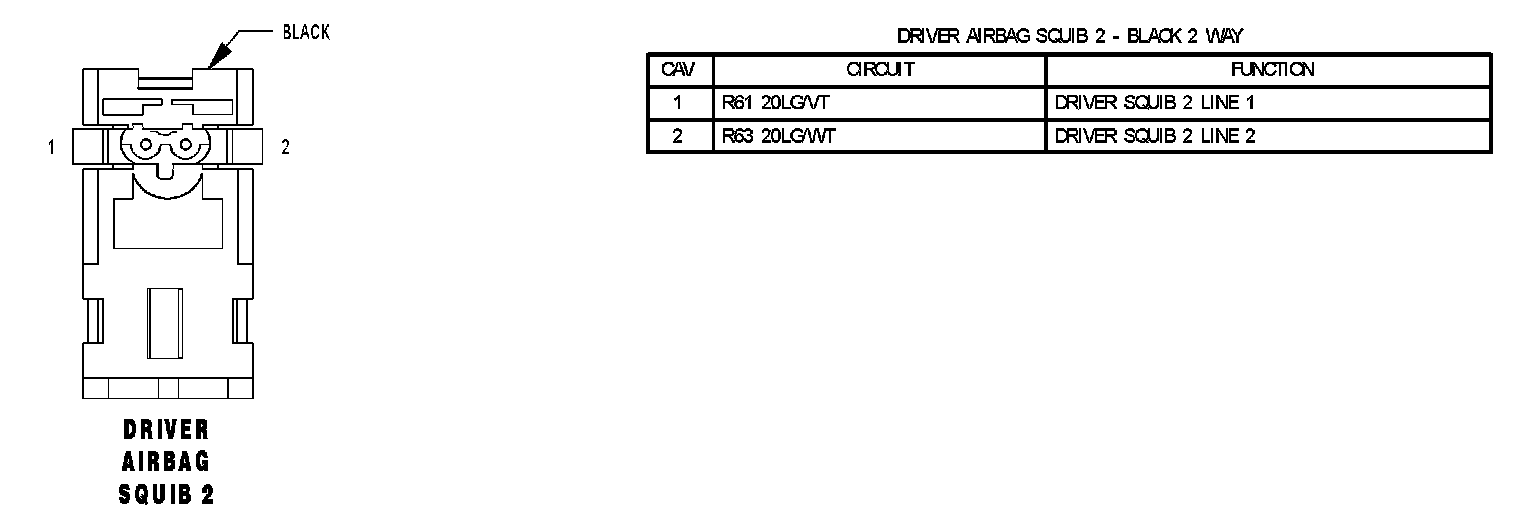

Driver Airbag Squib 2:

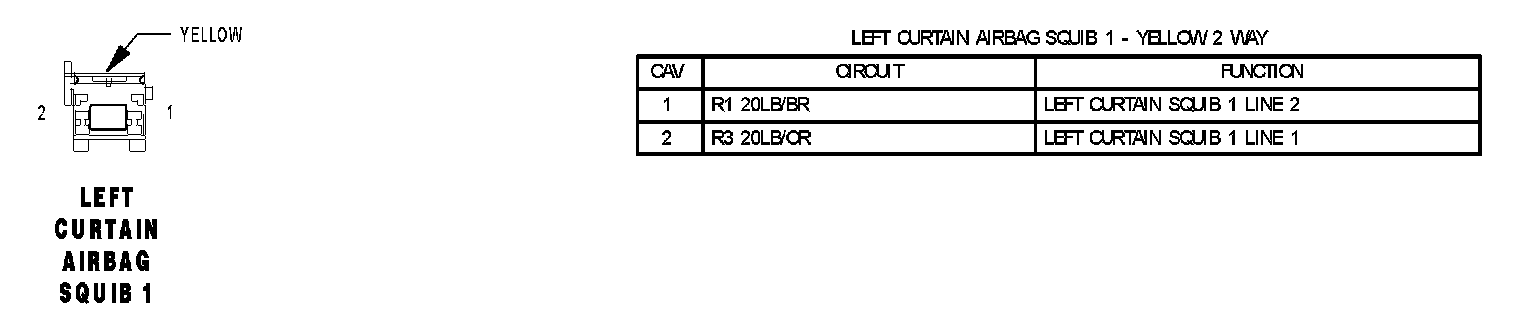

Left Curtain Airbag Squib 1:

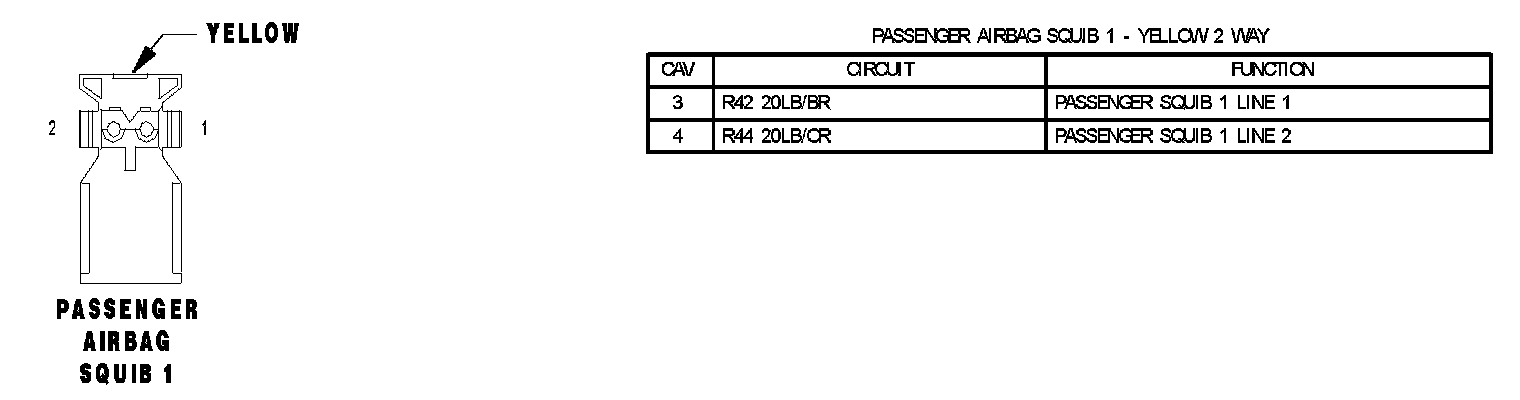

Passenger Airbag Squib 1:

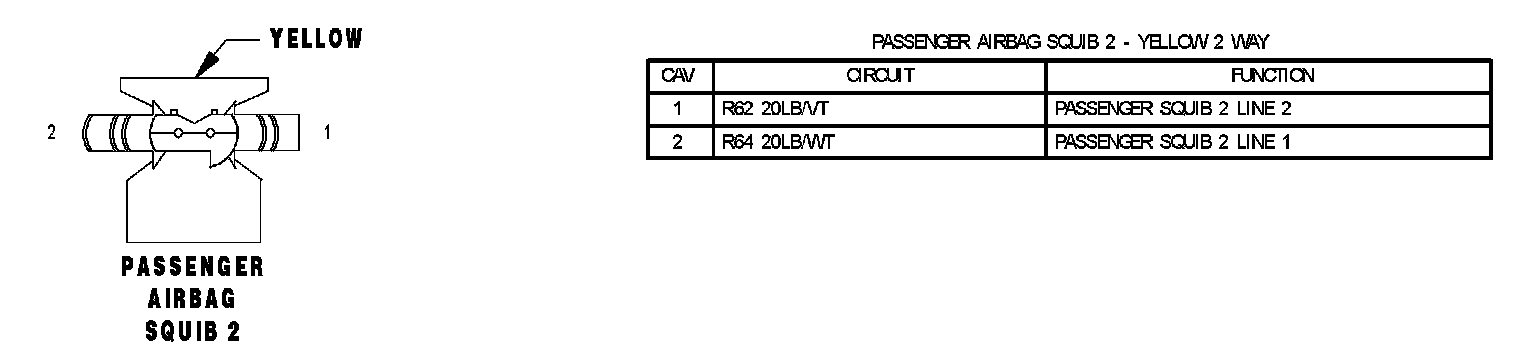

Passenger Airbag Squib 2:

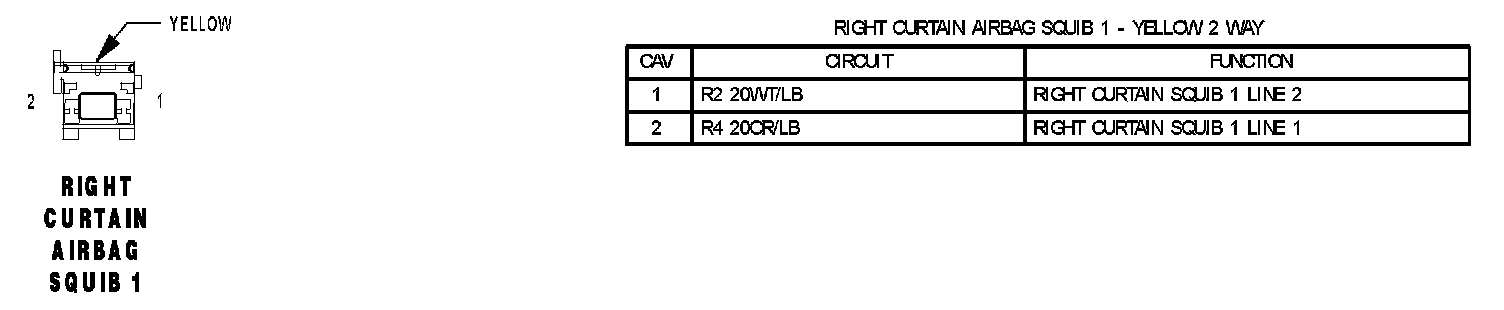

Right Curtain Airbag Squib 1:
