Tire Pressure Monitor Receiver / Transponder
Tire Pressure Monitor Receiver / Transponder

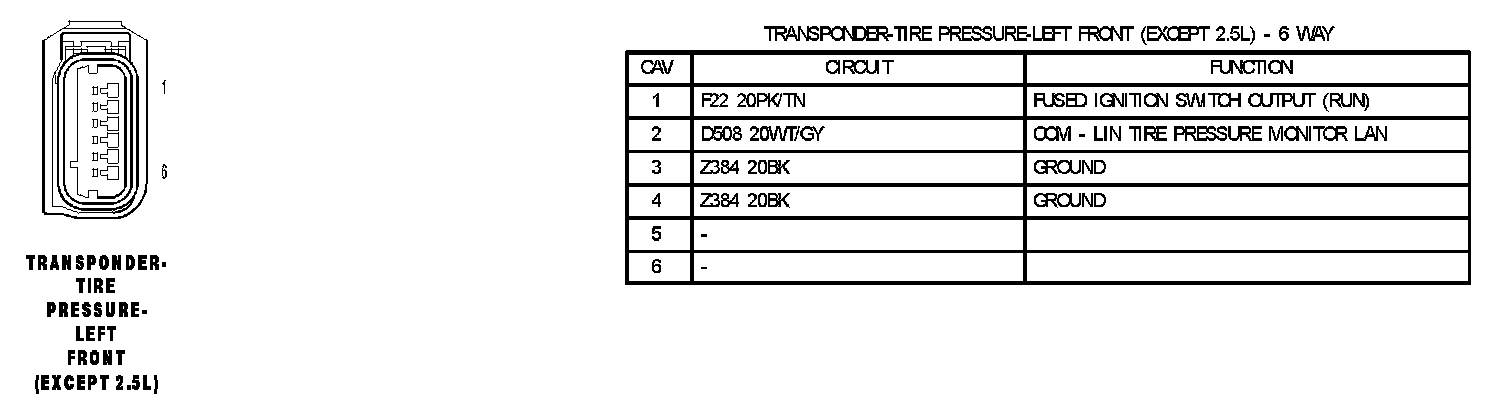

Transponder-Tire Pressure-Left Front (Except 2.5L):
Transponder-Tire Pressure-Right Front (Except 2.5L):

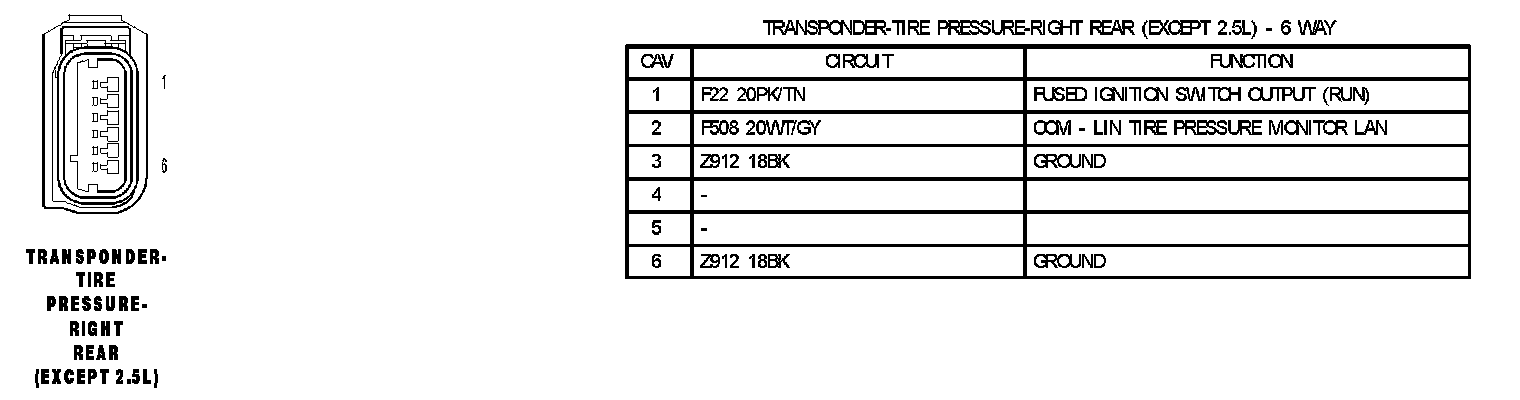

Transponder-Tire Pressure-Right Rear (Except 2.5L):
