Defroster Duct

REMOVAL

WARNING: ON VEHICLES EQUIPPED WITH AIRBAGS, DISABLE THE AIRBAG SYSTEM BEFORE ATTEMPTING ANY STEERING WHEEL, STEERING COLUMN, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. DISCONNECT AND ISOLATE THE BATTERY NEGATIVE (GROUND) CABLE, THEN WAIT TWO MINUTES FOR THE AIRBAG SYSTEM CAPACITOR TO DISCHARGE BEFORE PERFORMING FURTHER DIAGNOSIS OR SERVICE. THIS IS THE ONLY SURE WAY TO DISABLE THE AIR-BAG SYSTEM. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN AN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY OR DEATH.

1. Remove the instrument panel.

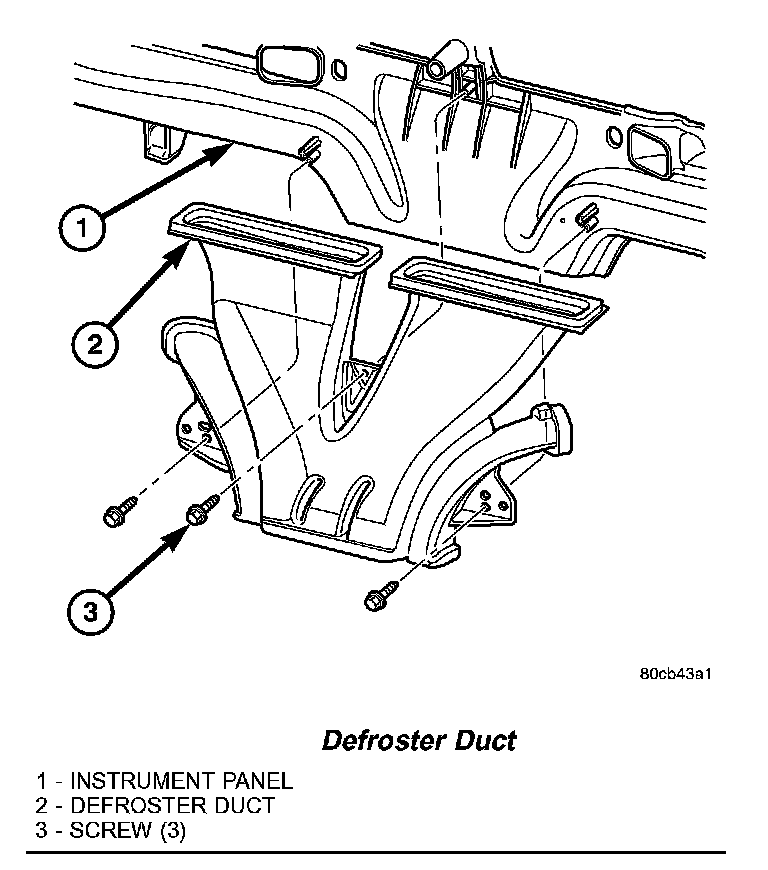

Defroster Duct:

2. Remove the three screws that secure the defroster duct to the instrument panel.
3. Remove the defroster duct from the instrument panel.

INSTALLATION
1. Install the defroster duct into the instrument panel.
2. Install the three screws that secure the defroster duct to the instrument panel. Tighten the screws to 2 N.m (17 in.lbs.).
3. Install the instrument panel.
