Blower Motor Resistor: Service and Repair

REMOVAL

WARNING:
- ON VEHICLES EQUIPPED WITH AIRBAGS, DISABLE THE AIRBAG SYSTEM BEFORE ATTEMPTING ANY STEERING WHEEL, STEERING COLUMN, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. DISCONNECT AND ISOLATE THE NEGATIVE BATTERY (GROUND) CABLE, THEN WAIT TWO MINUTES FOR THE AIRBAG SYSTEM CAPACITOR TO DISCHARGE BEFORE PERFORMING FURTHER DIAGNOSIS OR SERVICE. THIS IS THE ONLY SURE WAY TO DISABLE THE AIR-BAG SYSTEM. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY OR DEATH.
- THE BLOWER MOTOR RESISTOR MAY GET VERY HOT DURING NORMAL OPERATION. IF THE BLOWER MOTOR WAS TURNED ON PRIOR TO SERVICING THE BLOWER MOTOR RESISTOR, WAIT FIVE MINUTES TO ALLOW THE BLOWER MOTOR RESISTORS TO COOL BEFORE PERFORMING DIAGNOSIS OR SERVICE. FAILURE TO TAKE THIS PRECAUTION CAN RESULT IN POSSIBLE PERSONAL INJURY.

1. Disconnect and isolate the negative battery cable.

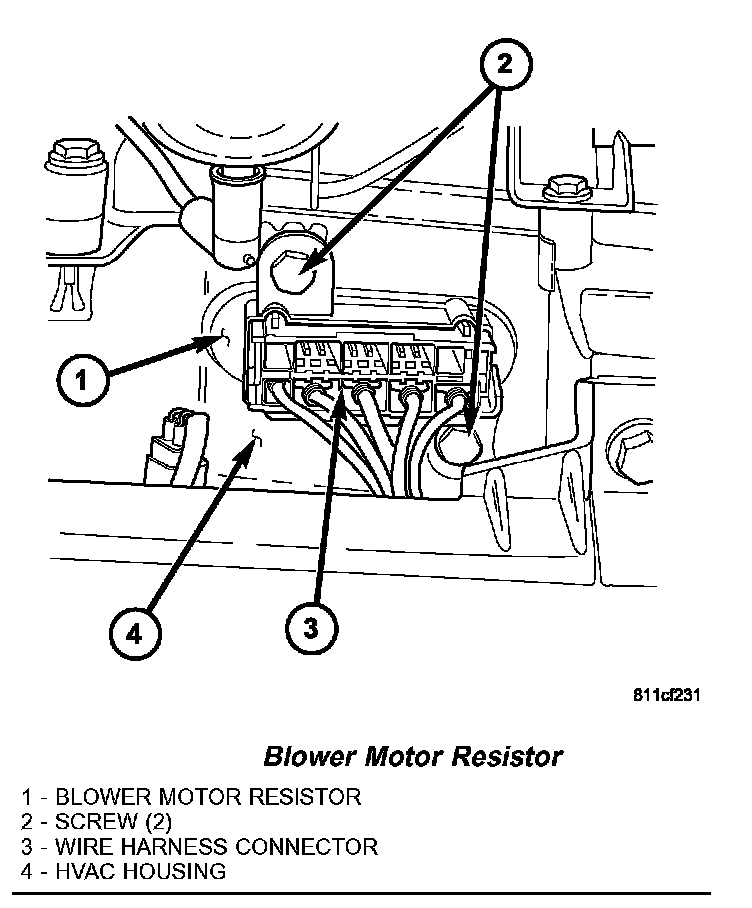

Blower Motor Resistor:

2. Open the glove box door to gain access to the blower motor resistor.
3. Pull out the lock on the blower motor resistor wire harness connector to unlock the connector latch.
4. Depress the latch on the blower motor resistor wire harness connector and disconnect the wire harness from the resistor.
5. Remove the two screws that secure the blower motor resistor to the HVAC housing and remove the resistor.

INSTALLATION
1. Position the blower motor resistor into the HVAC housing.
2. Install the two screws that secure the blower motor resistor to the HVAC housing. Tighten the screws to 2 N.m (17 in.lbs.).
3. Connect the wire harness connector to the blower motor resistor.
4. Push in the lock on the blower motor resistor wire harness connector.
5. Close the glove box door.
6. Reconnect the negative battery cable.
