Power

REMOVAL
1. Remove the waterdam.

Door Glass Position:

2. Raise the glass and line up the lift plate clip with the hole in the door panel shown.
3. Using a long flat blade or hook type tool, disengage the clip attaching glass retainer to regulator lift plate.
4. Disconnect the glass from the regulator lift plate and re-install the clip.
5. Secure the glass in the up position using a wood wedge, tape or equivalent.

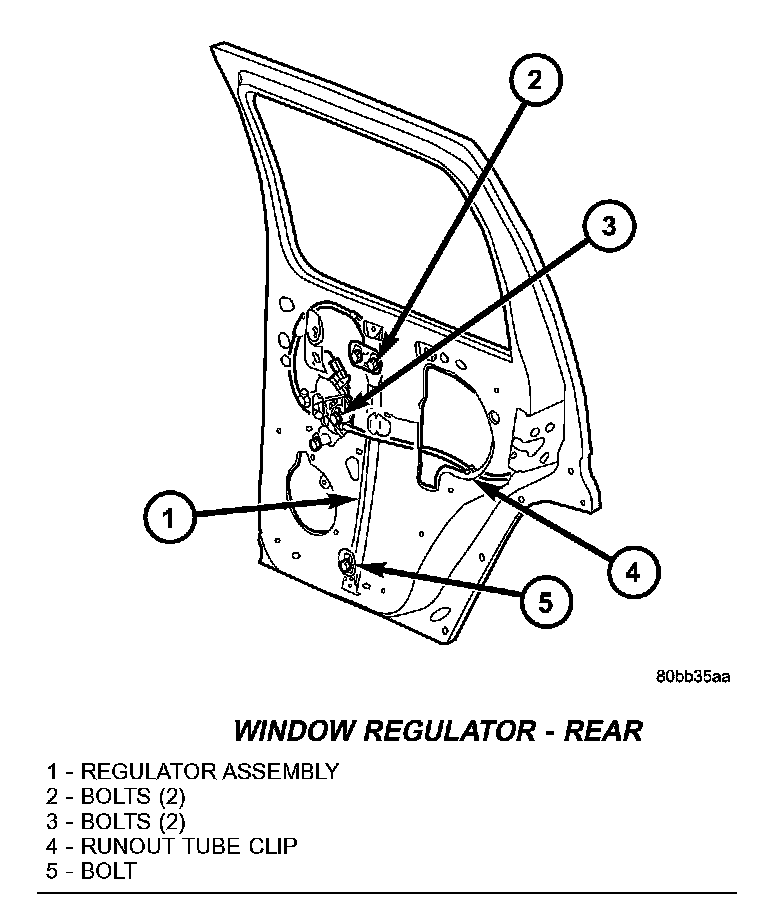

Window Regulator - Rear:

6. Remove the bolts.
7. Disconnect the runout tube clip and remove the regulator.
8. Disconnect the electrical connector.

INSTALLATION
1. Connect the electrical connector.
2. Loosely install the bolts onto the regulator assembly.
3. Install the regulator assembly.

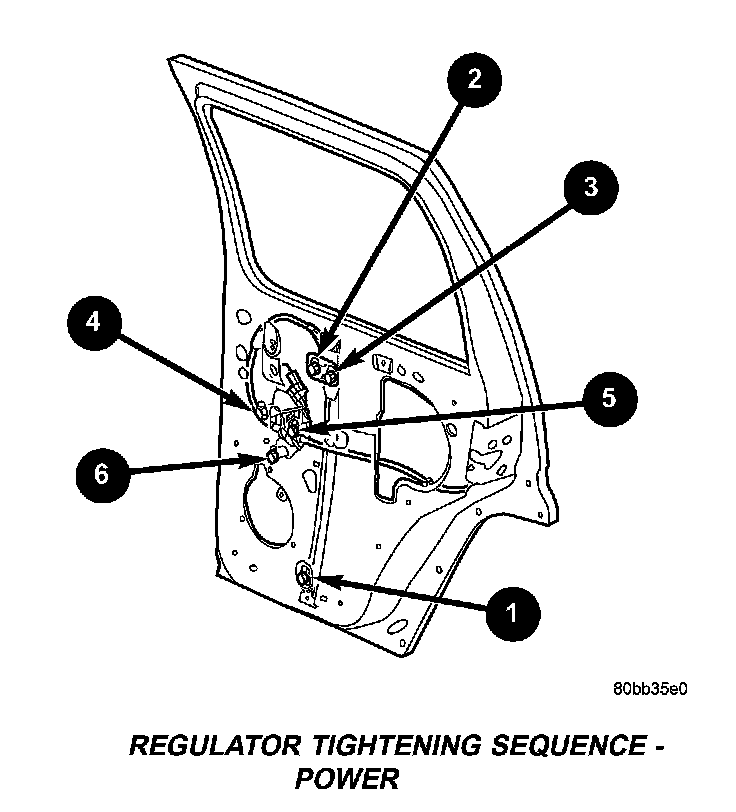

Regulator Tightening Sequence - Power:

4. Tighten the bolts to 9 N.m (80 in.lbs) using the sequence shown.
5. Remove the glass support and connect to the regulator lift plate.
6. Install the waterdam.
