A/C Operates In All Mode Switch Positions

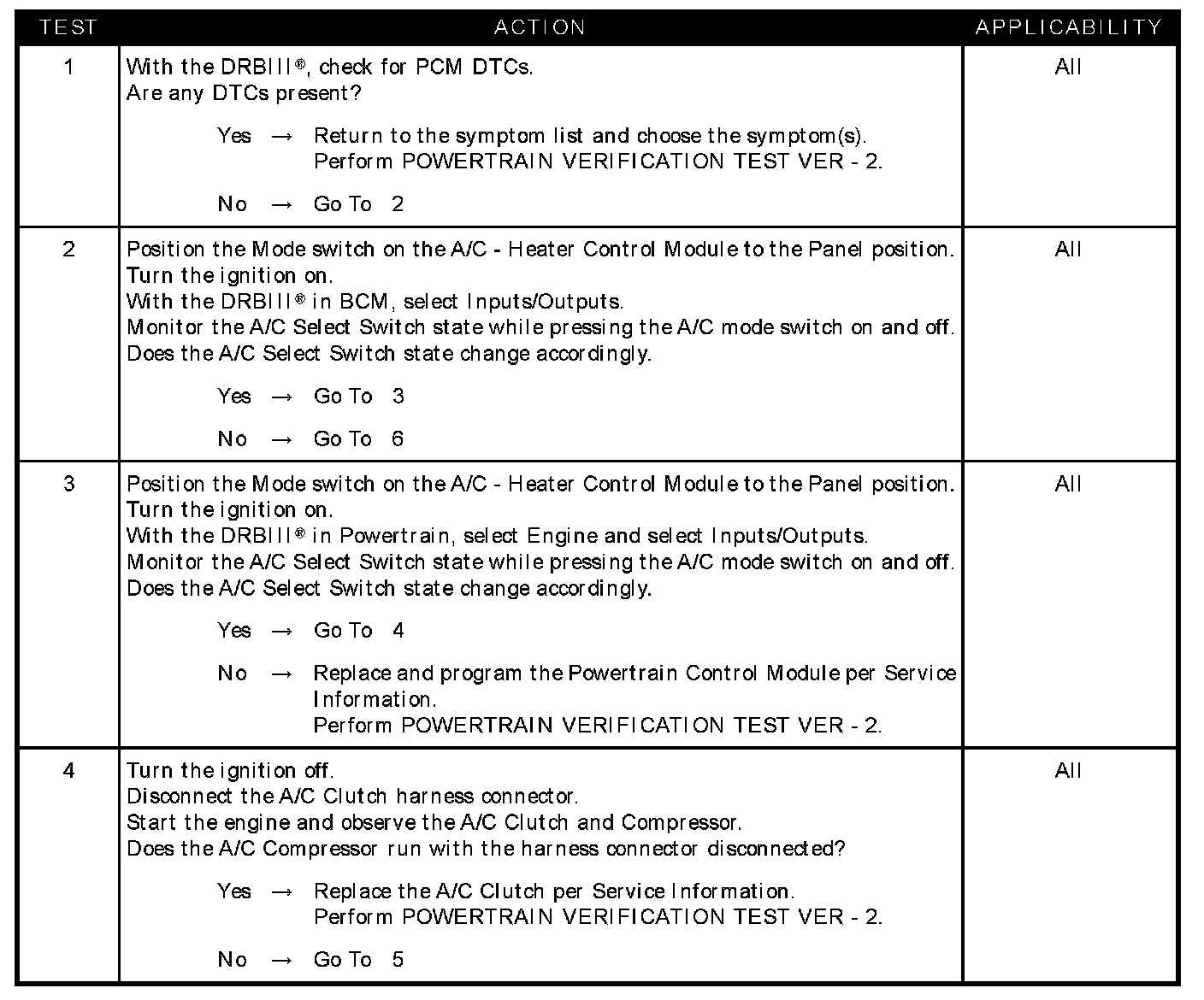

Test 1 - 4:

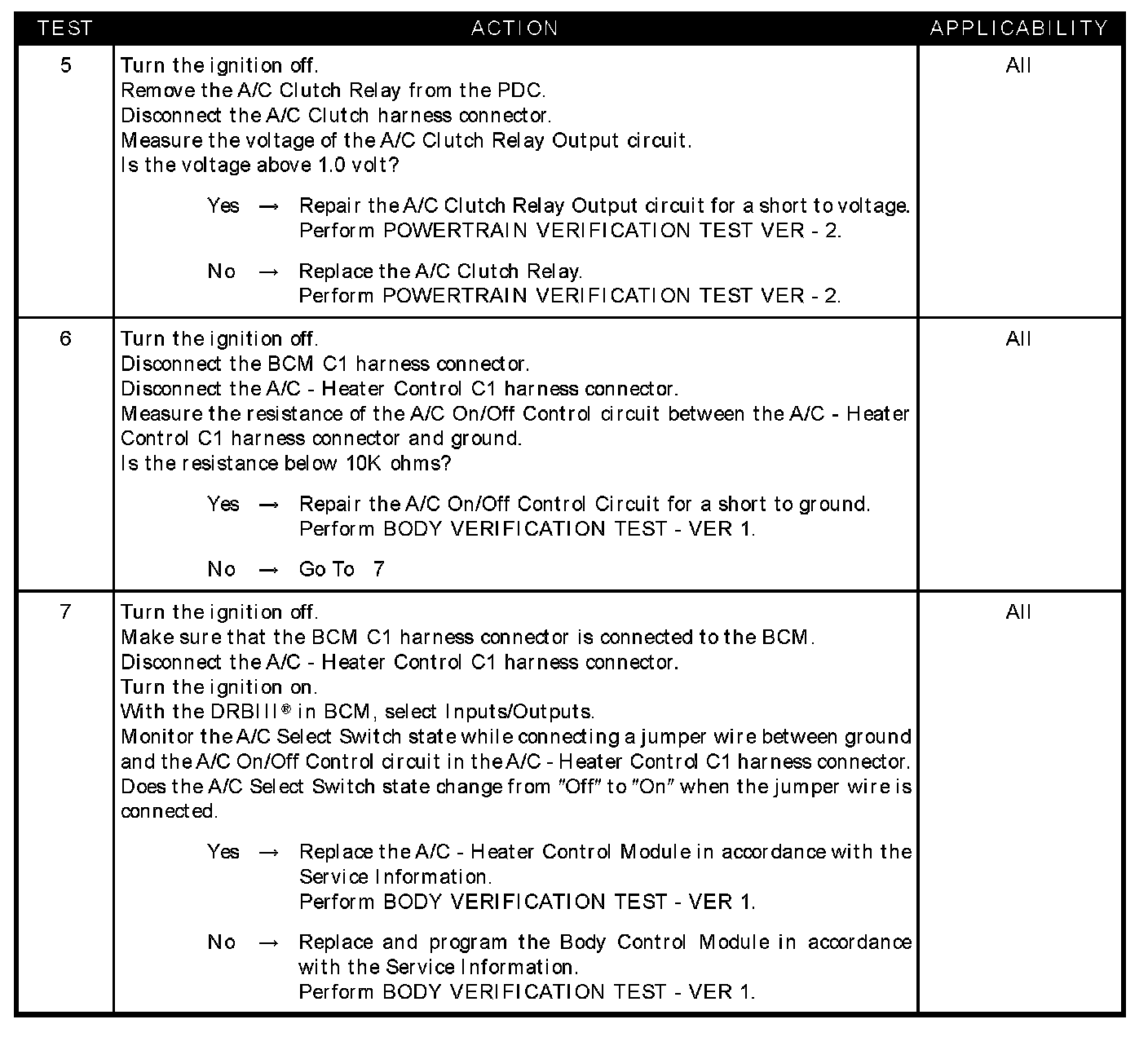

Test 5 - 7:
SYMPTOM A/C OPERATES IN ALL MODE SWITCH POSITIONS
POSSIBLE CAUSES -
Check for PCM DTCs
-
Powertrain control module
-
A/C clutch
-
A/C clutch relay output circuit shorted to voltage
-
A/C clutch relay
-
Check A/C ON/OFF control circuit for a short to ground
-
A/C - heater control module
-
Body control module
