Ignition Coil: Diagrams

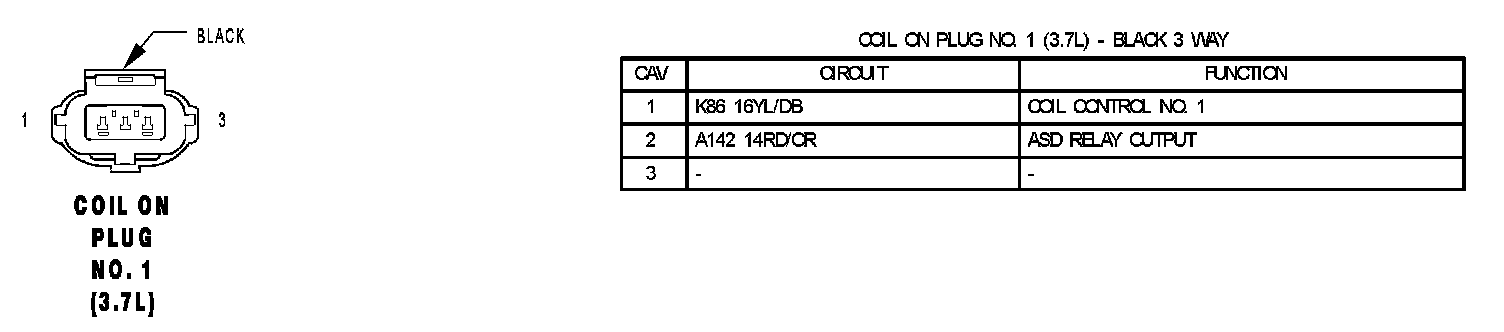

Coil On Plug No. 1 (3.7L):

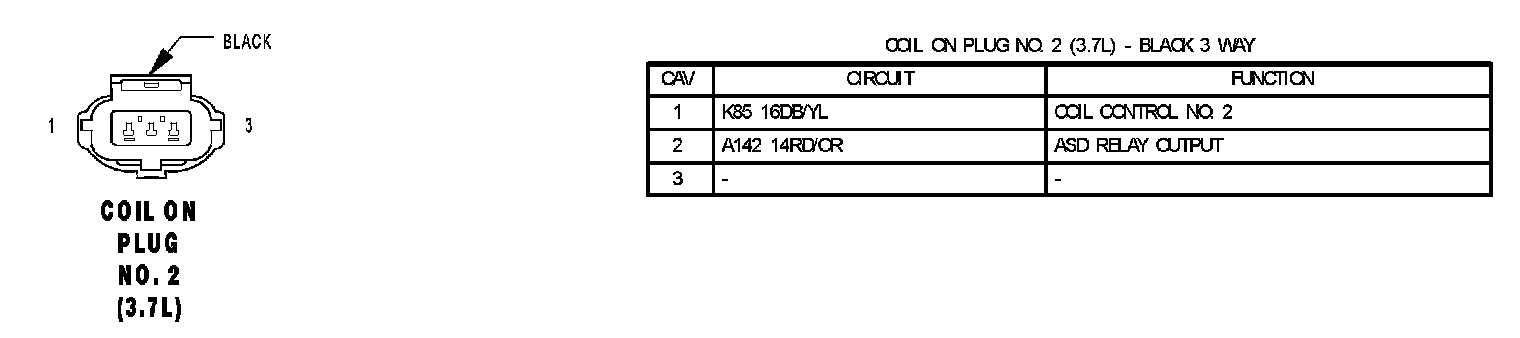

Coil On Plug No. 2 (3.7L):
Coil On Plug No. 3 (3.7L):

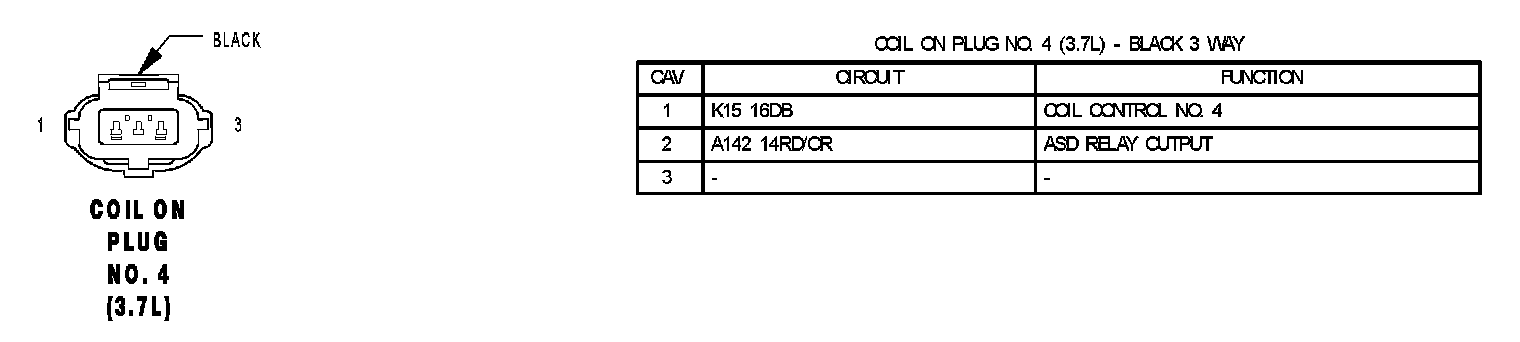

Coil On Plug No. 4 (3.7L):
Coil On Plug No. 5 (3.7L):

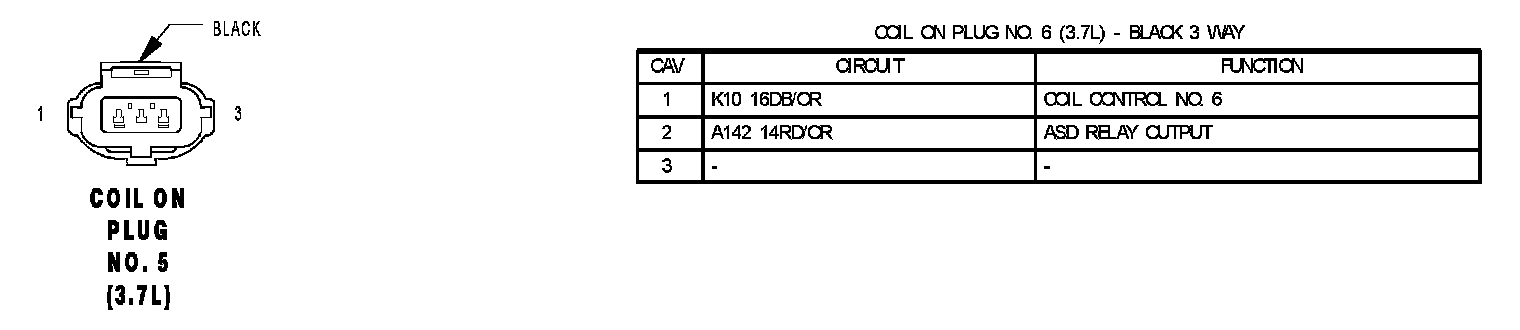

Coil On Plug No. 5 (3.7L):
