Home >> Jeep >> 2005 >> Liberty 4WD L4-2.4L DOHC VIN 1 >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Intake Manifold

Intake Manifold

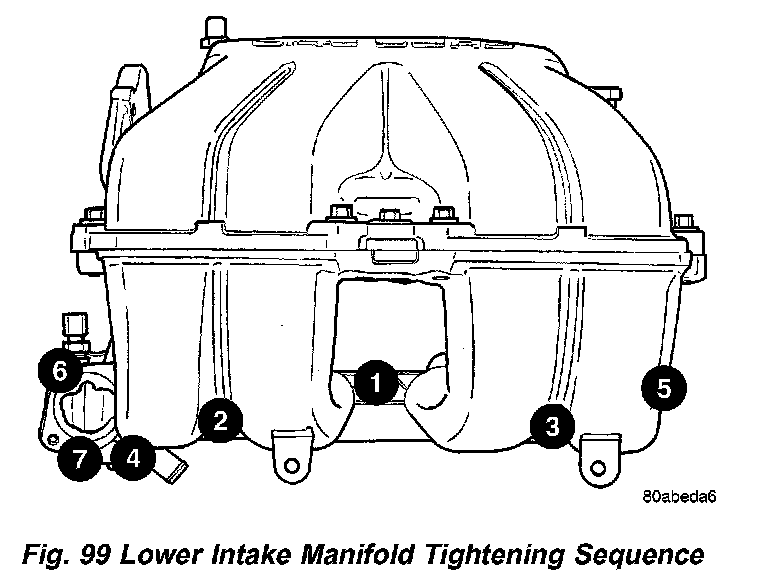

Lower intake bolts 28 Nm (250 inch lbs.)

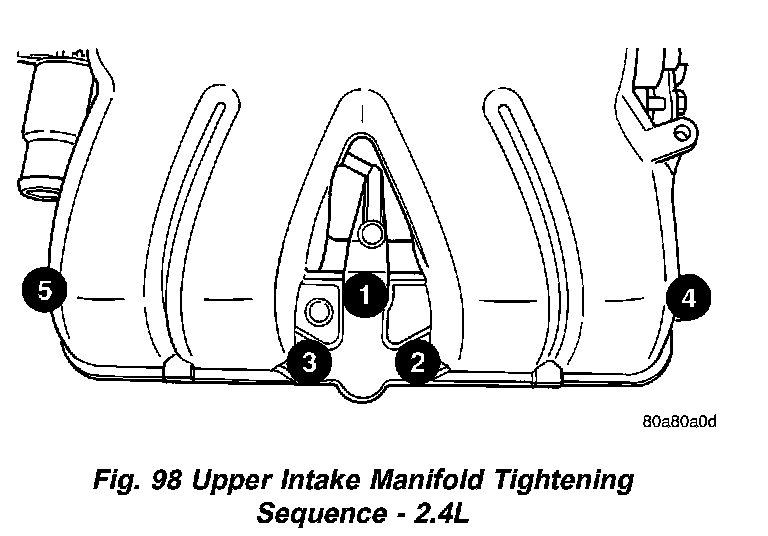

Upper intake bolts 28 Nm (250 inch lbs.)
