Home >> Jeep >> 2005 >> Liberty 4WD L4-2.8L DSL Turbo VIN 5 >> Repair and Diagnosis >> Accessories and Optional Equipment >> Central Control Module >> Locations

Central Control Module: Locations

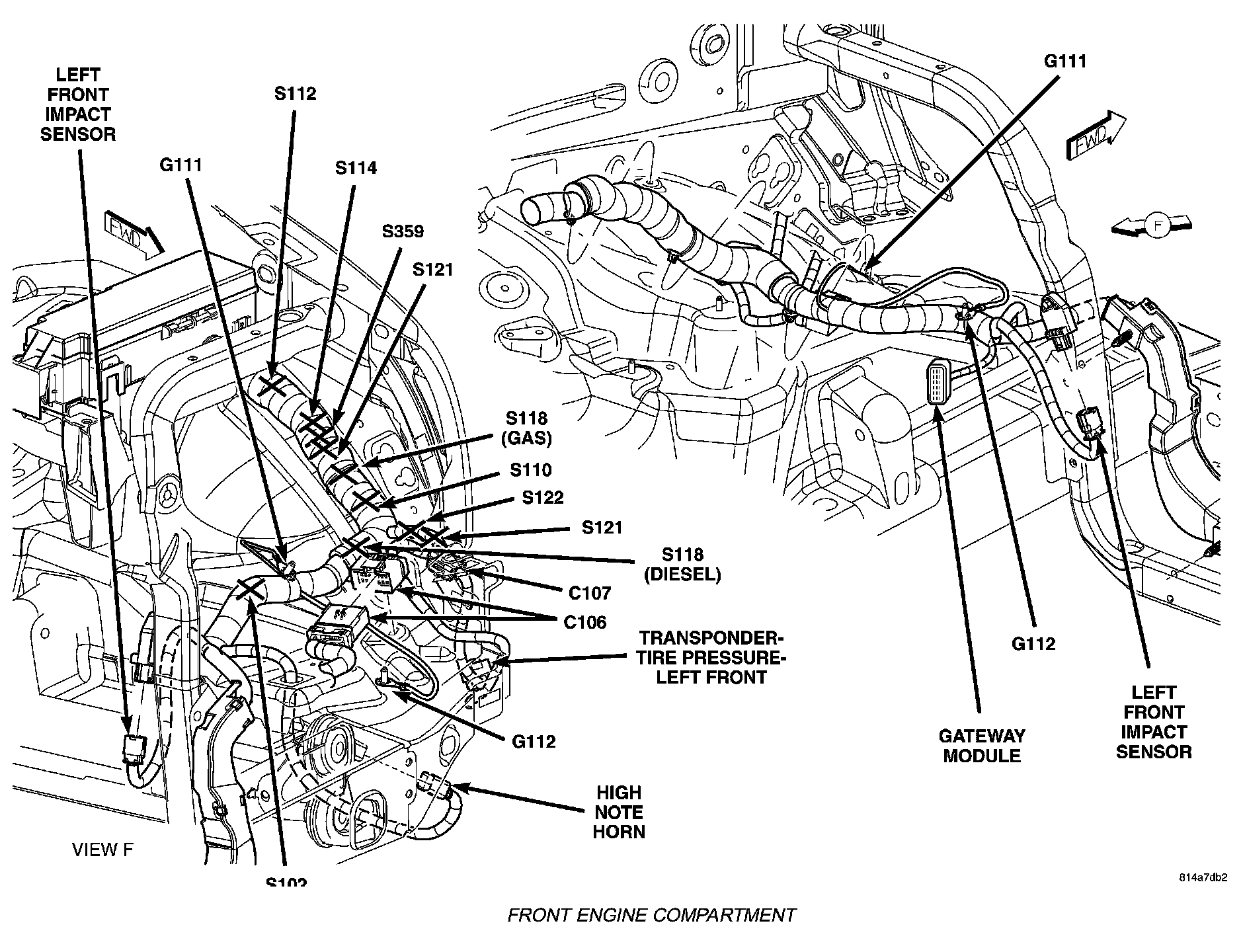

Front Engine Compartment:
