Alarm Module, (Vehicle Antitheft)

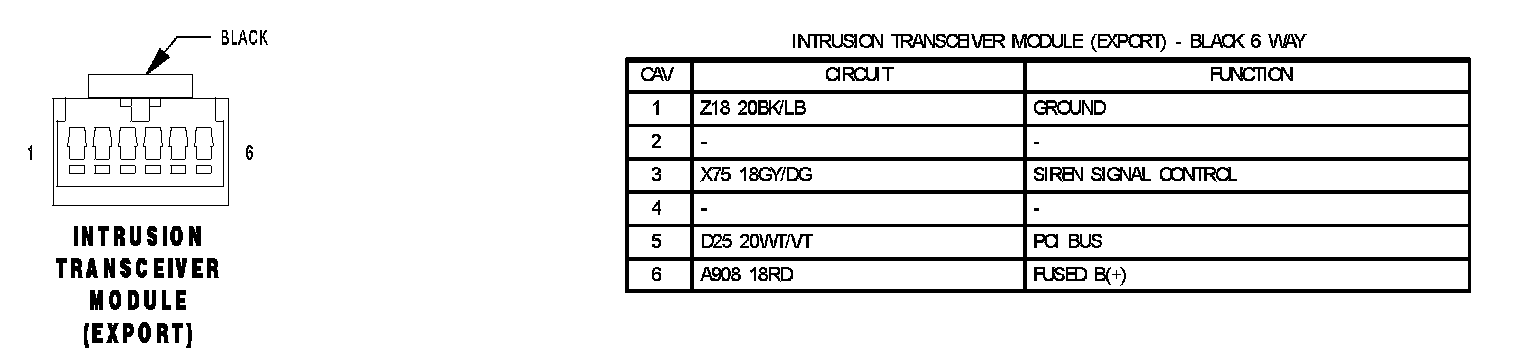

Intrusion Transceiver Module (Export):

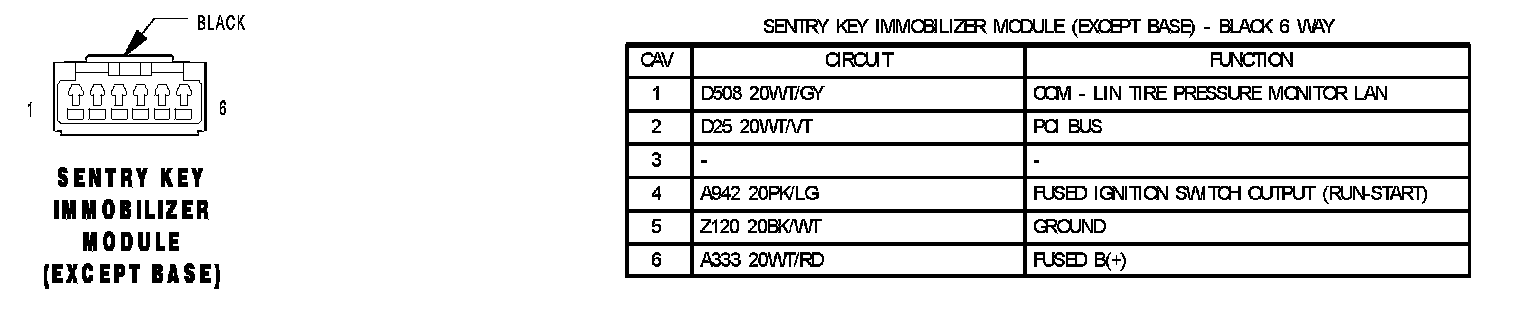

Sentry Key Immobilizer Module (Except Base):
