Fuel Injector
Fuel Injector

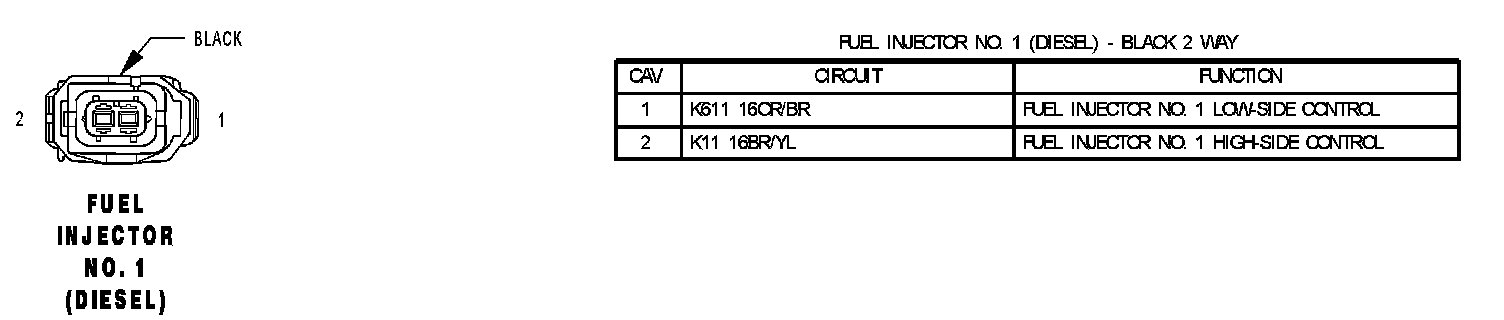

Fuel Injector No. 1 (Diesel):

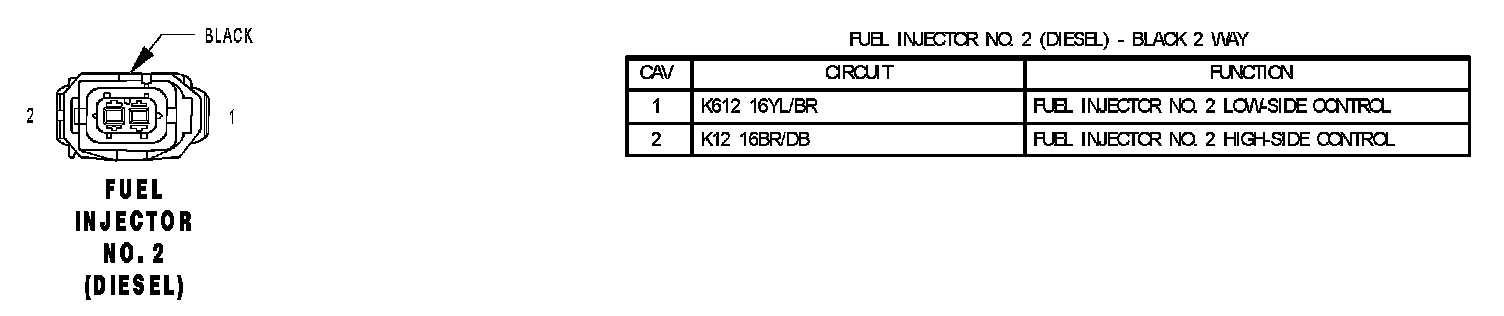

Fuel Injector No. 2 (Diesel):
Fuel Injector No. 3 (Diesel):

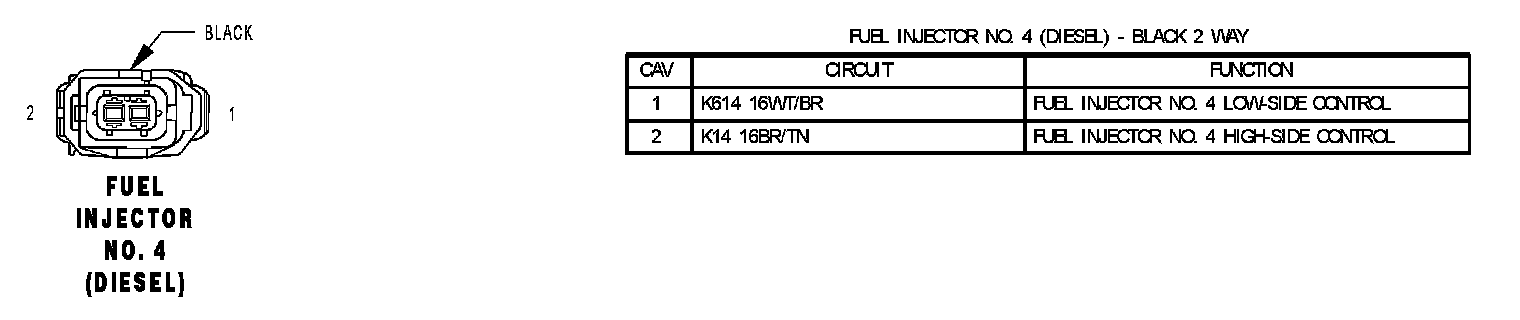

Fuel Injector No. 4 (Diesel):
