Impact Sensor
Impact Sensor

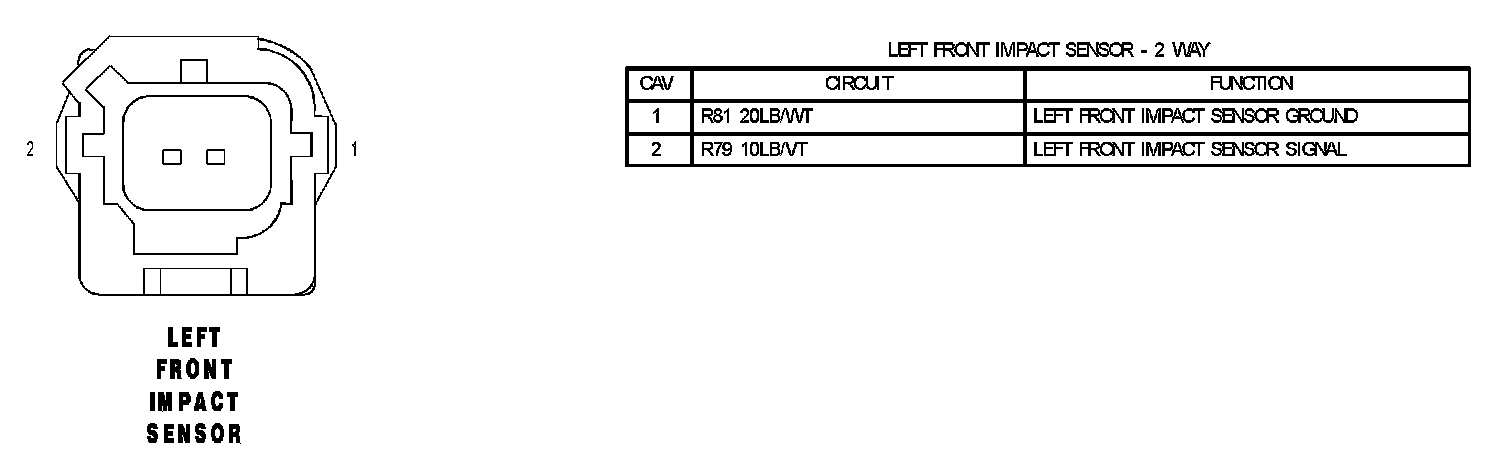

Left Front Impact Sensor:

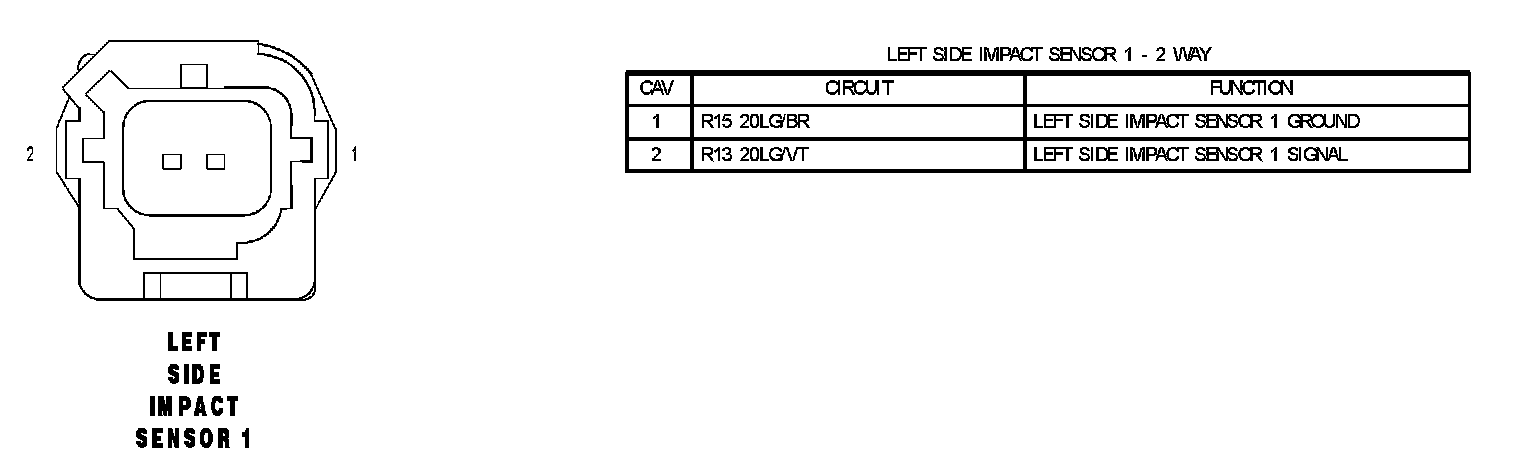

Left Side Impact Sensor 1:

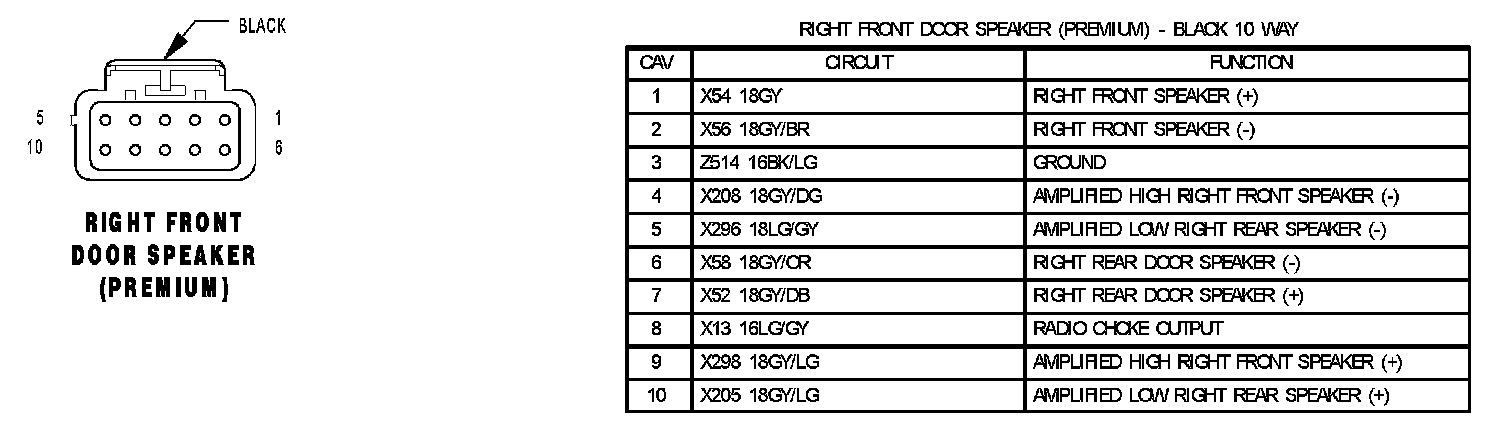

Right Front Door Speaker (Premium):

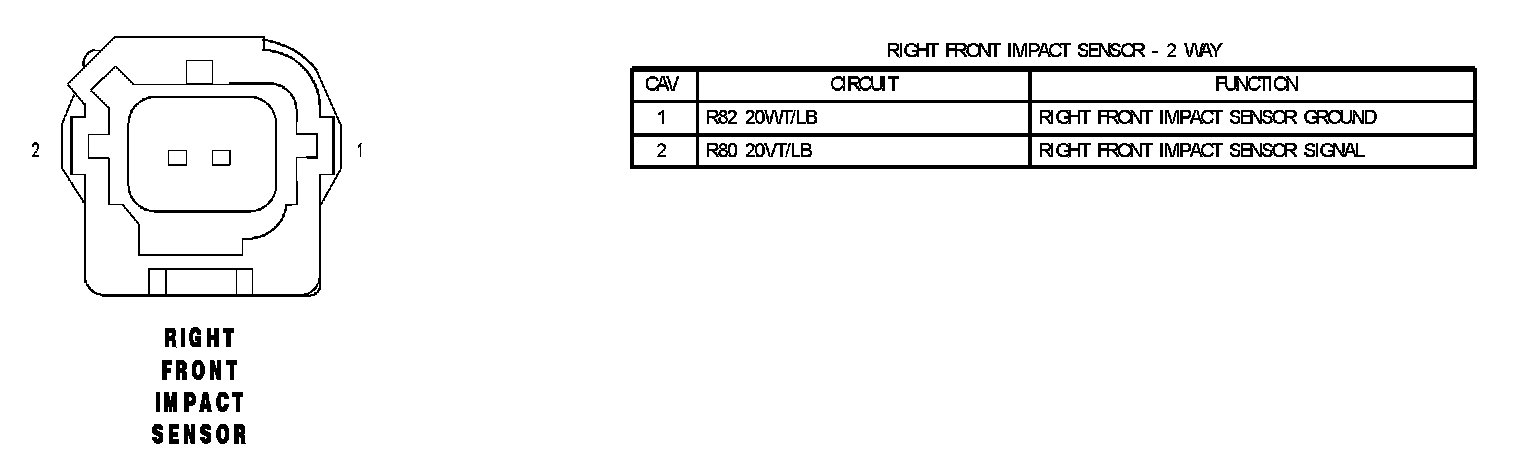

Right Front Impact Sensor:

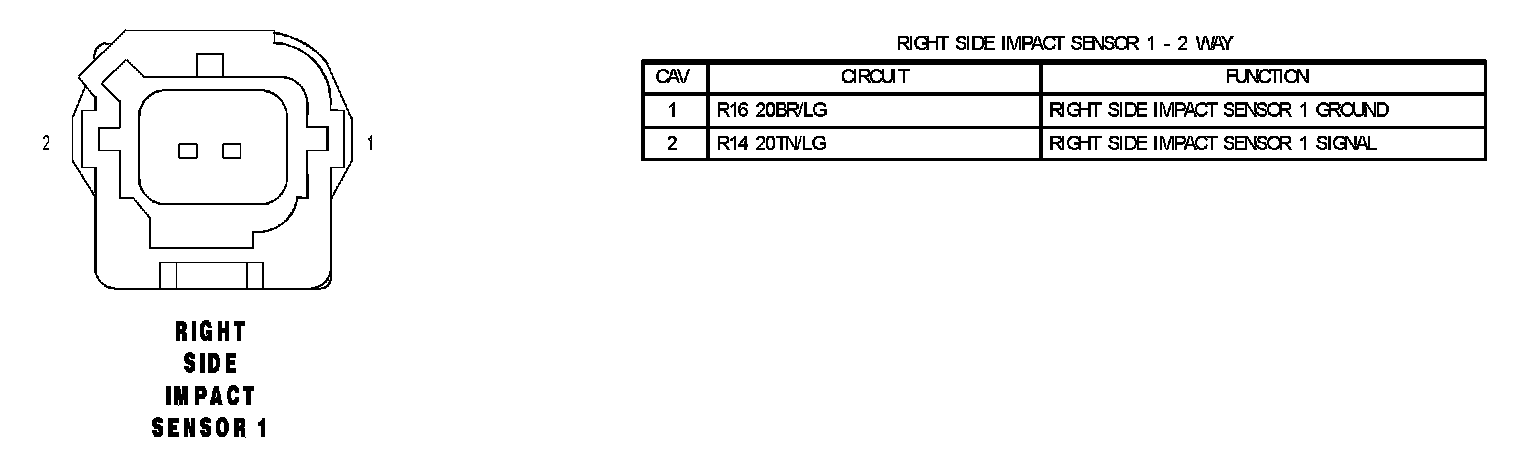

Right Side Impact Sensor 1:
