Power Window Motor
Power Window Motor

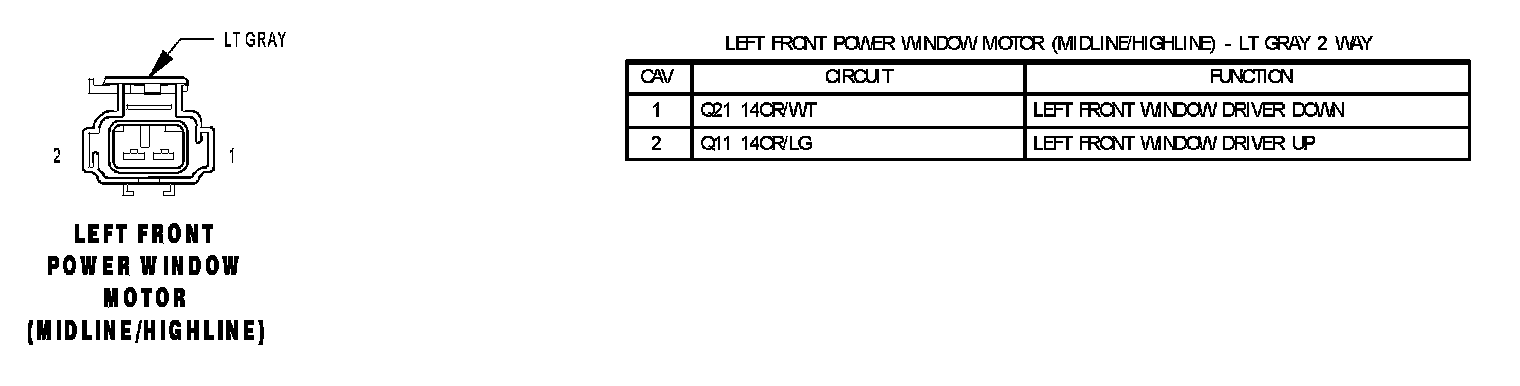

Left Front Power Window Motor (Midline/Highline):

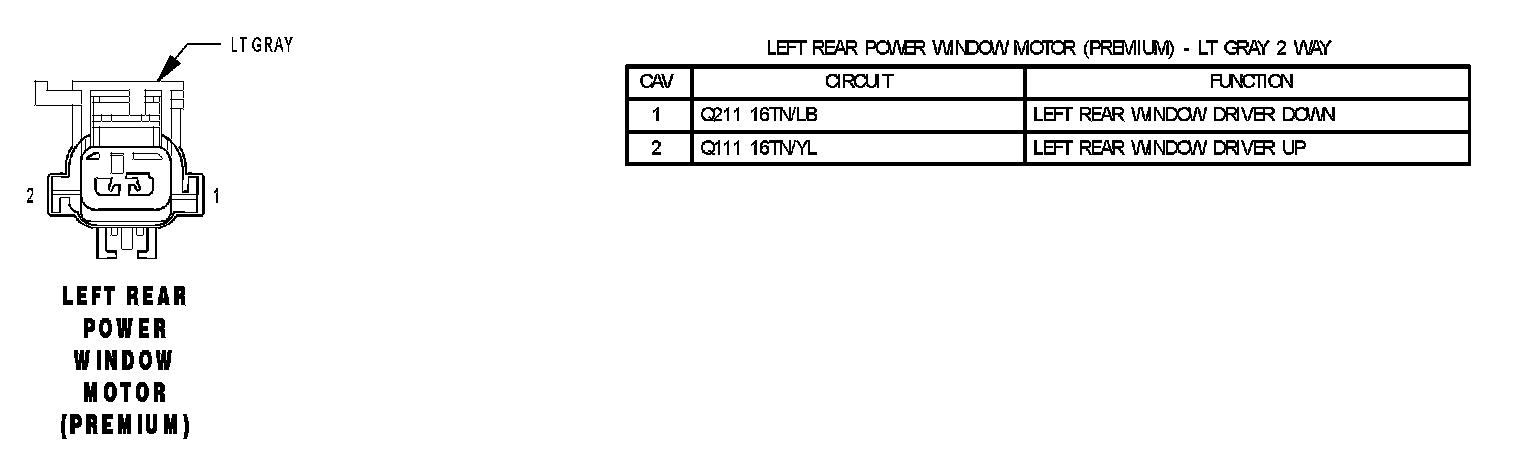

Left Rear Power Window Motor (Premium):

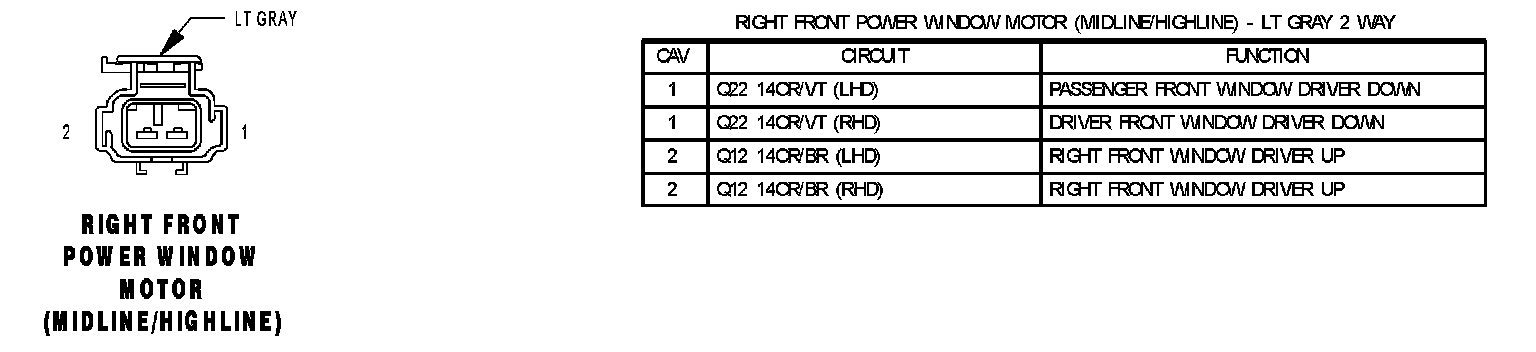

Right Front Power Window Motor (Midline/Highline):

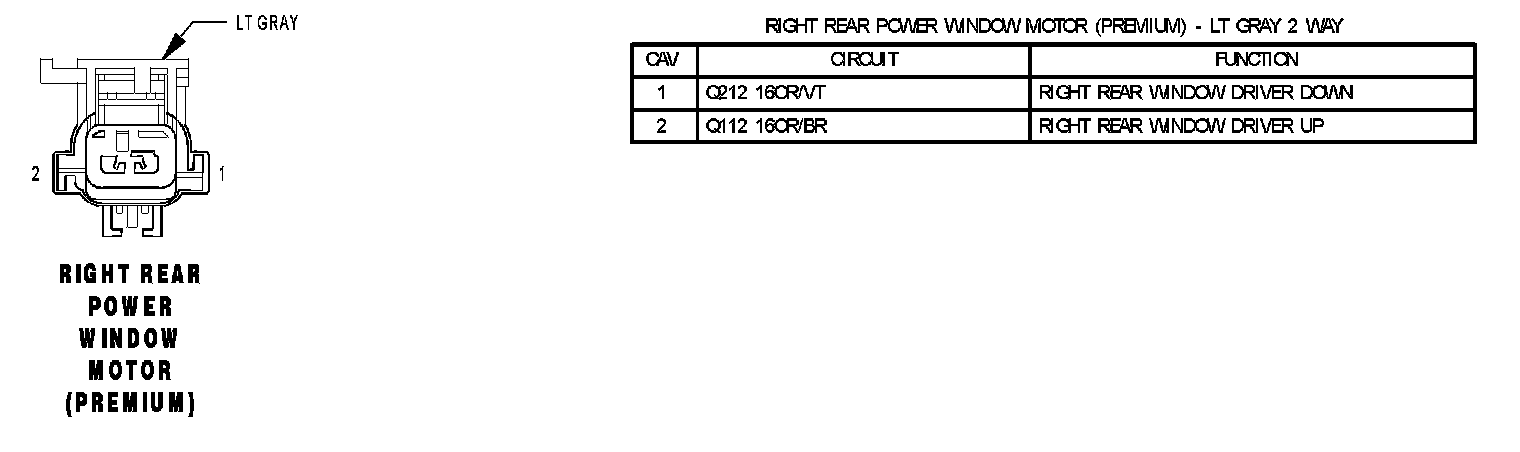

Right Rear Power Window Motor (Premium):
