Voice Activation Module
Voice Activation Module

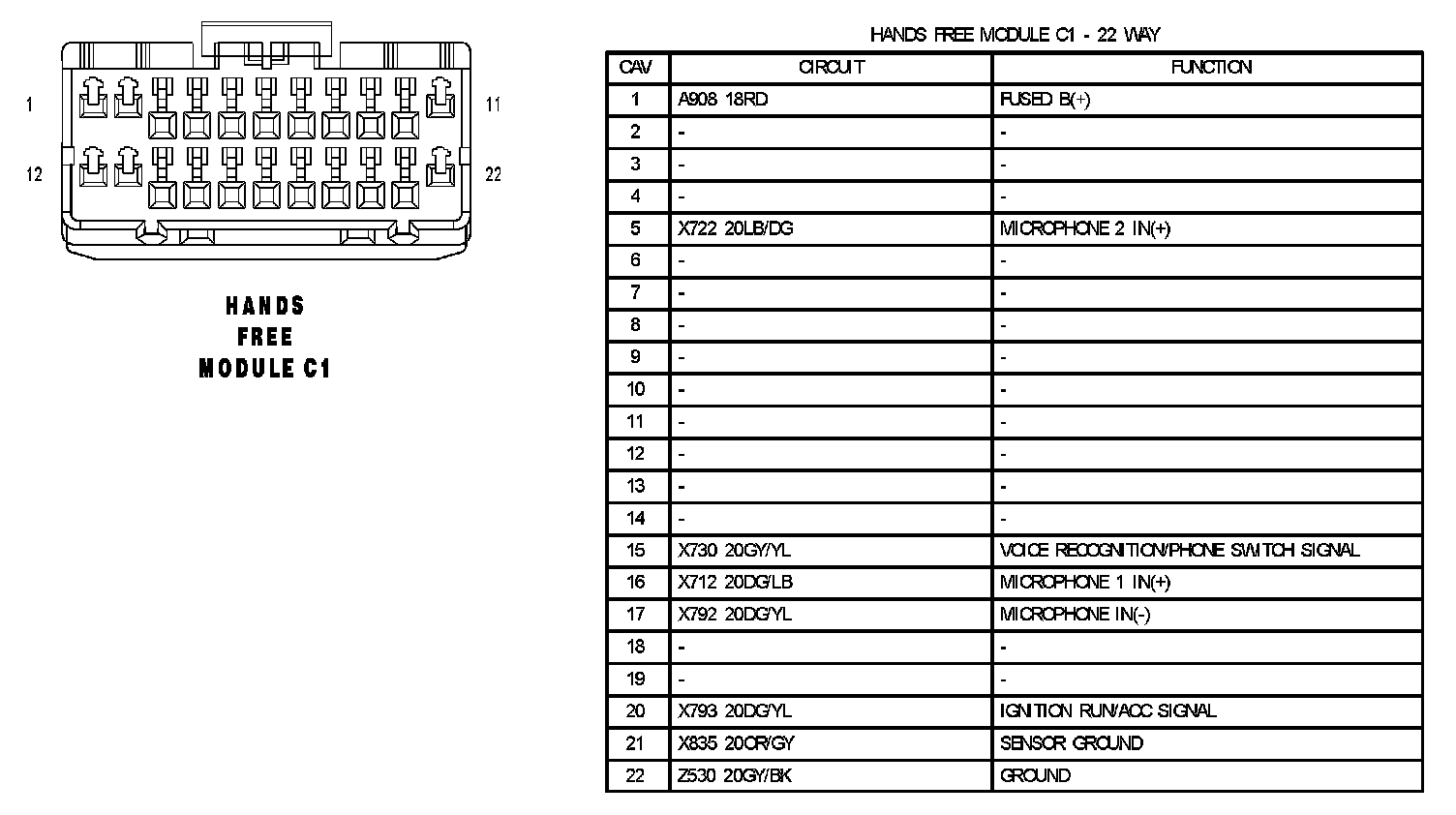

Hands Free Module C1:
Hands Free Module C2 (Satellite):

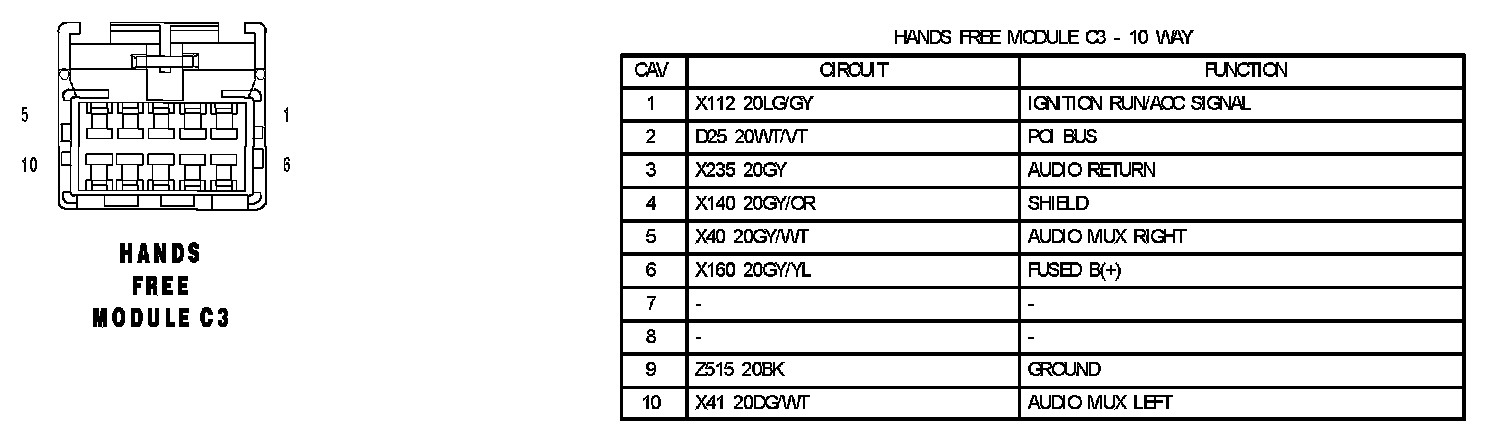

Hands Free Module C3:
