Accelerator Pedal Position Sensor: Service and Repair

REMOVAL
1. Disconnect negative battery cable.

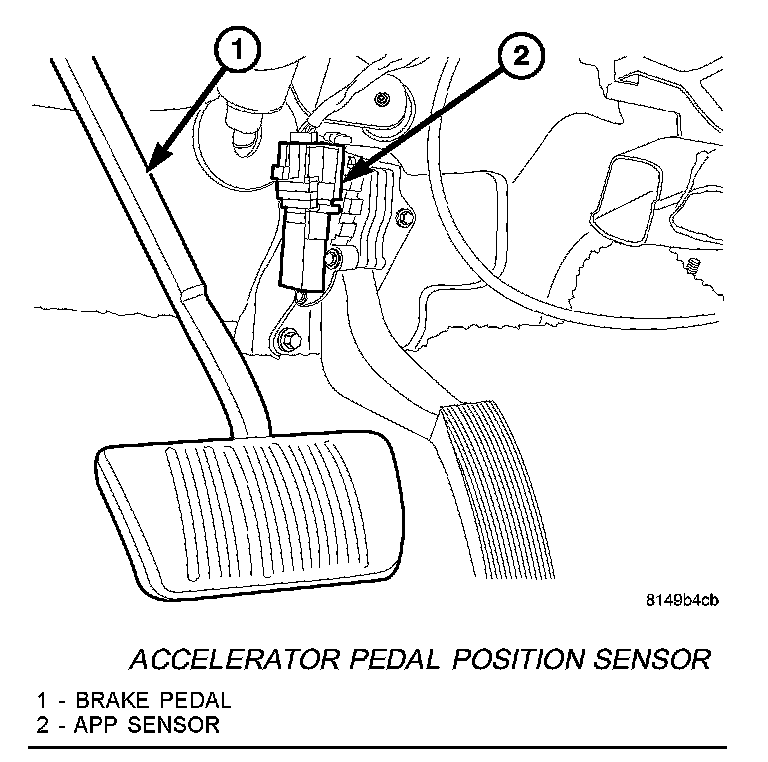

Accelerator Pedal Position Sensor:




2. Disconnect accelerator pedal position sensor electrical connector.
3. Remove accelerator pedal position sensor assembly mounting bolts
4. Open accelerator pedal position sensor assembly and disconnect accelerator cable
5. Remove accelerator pedal position sensor assembly.

INSTALLATION

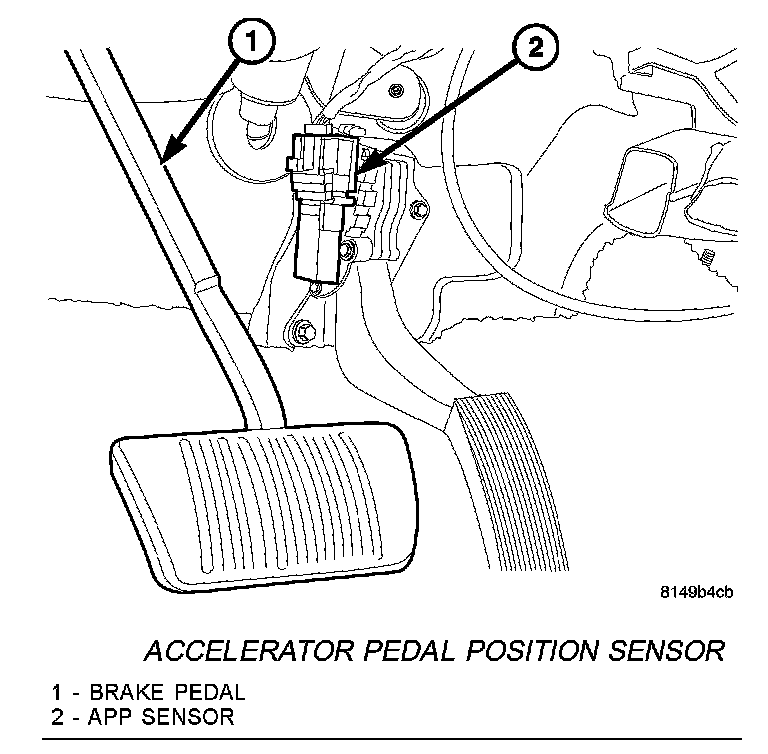

Accelerator Pedal Position Sensor:




Position the APP sensor and install the fasteners hand tight.
1. Tighten the APP sensor fasteners to 10.8 N-m (96 in. lbs.).
2. Connect the APP sensor wiring harness connector.
3. Connect negative battery cable.
