Air Temperature Sensor ( Ambient / Intake ): Locations

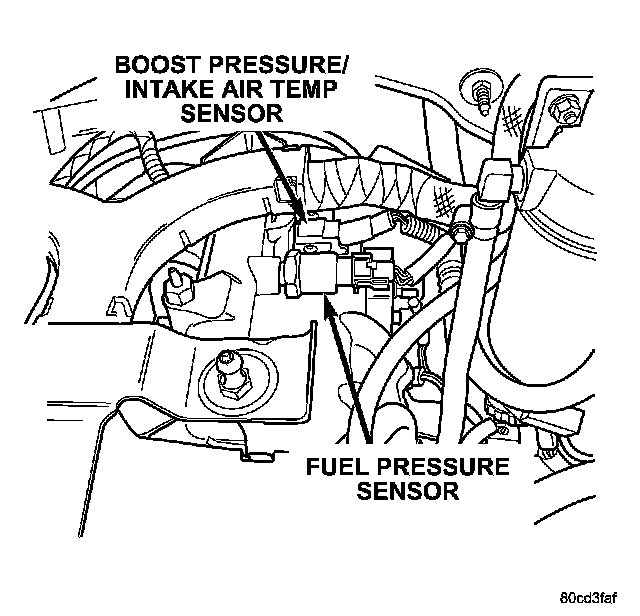

The boost pressure/intake air temperature sensor is mounted to the top of the intake manifold.
