Home
>>
Jeep
>>
2005
>>
Liberty 4WD L4-2.8L DSL Turbo VIN 5
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Crankshaft Position Sensor
>>
Locations
>>
Connector Locations
Connector Locations

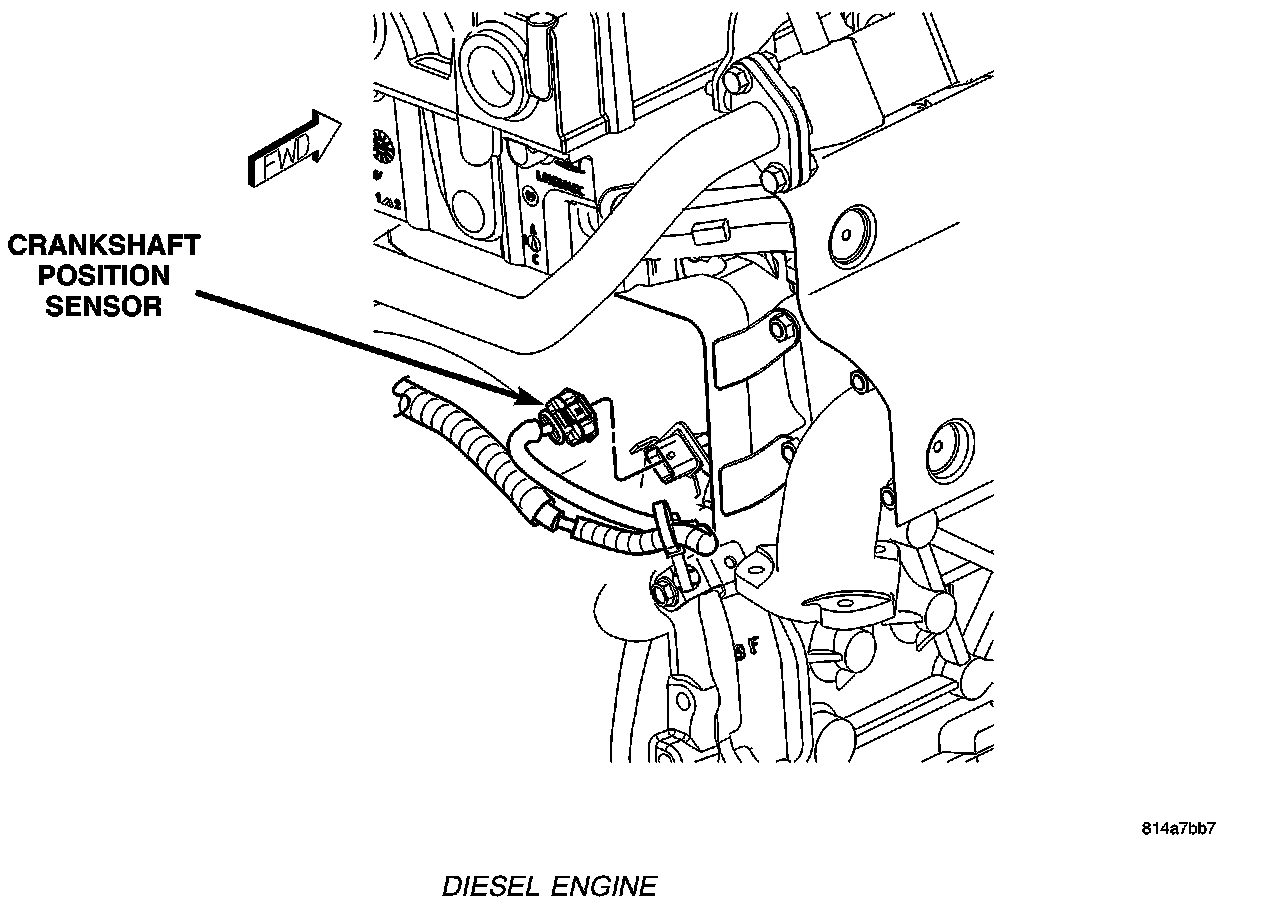

Diesel Engine:

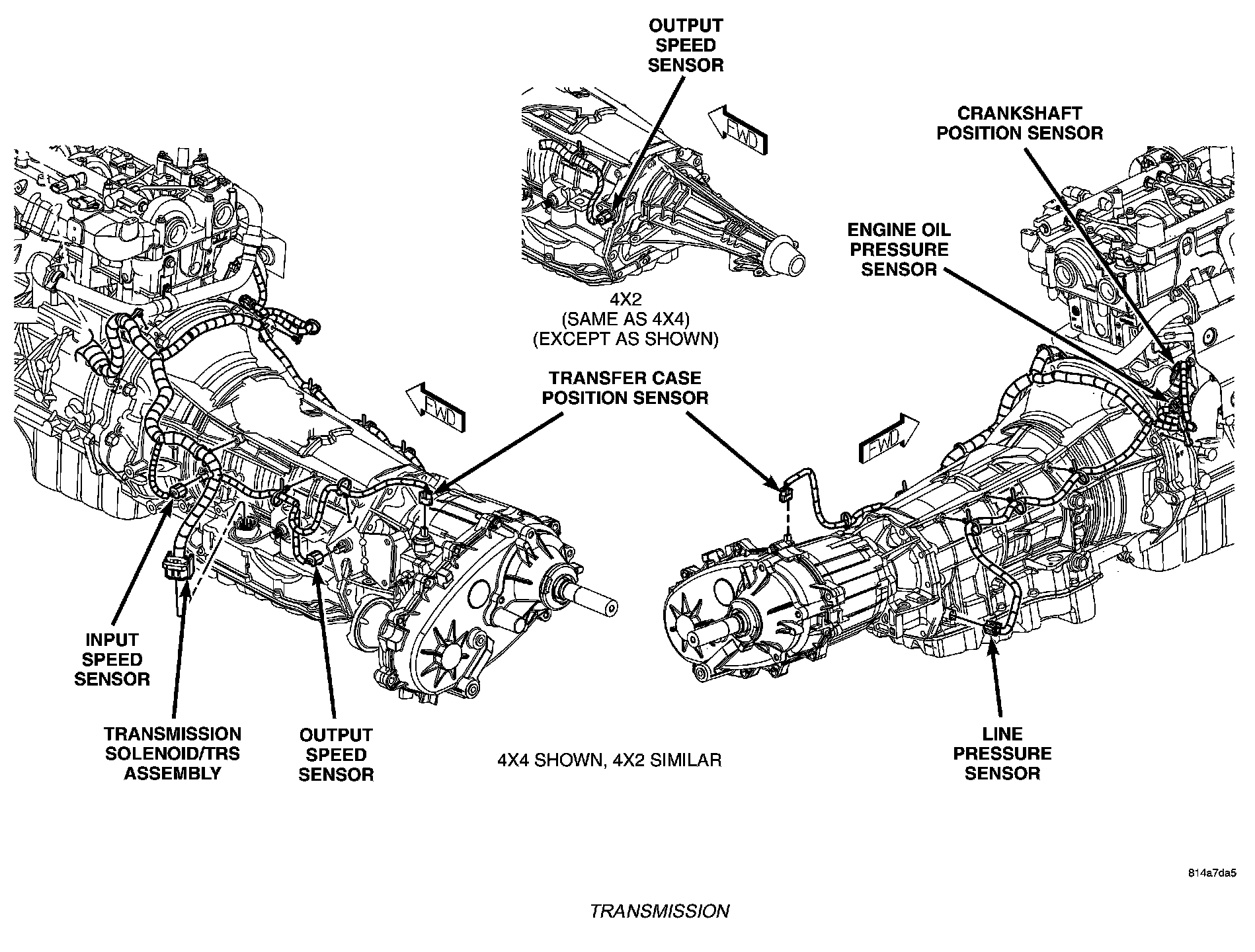

Transmission:
